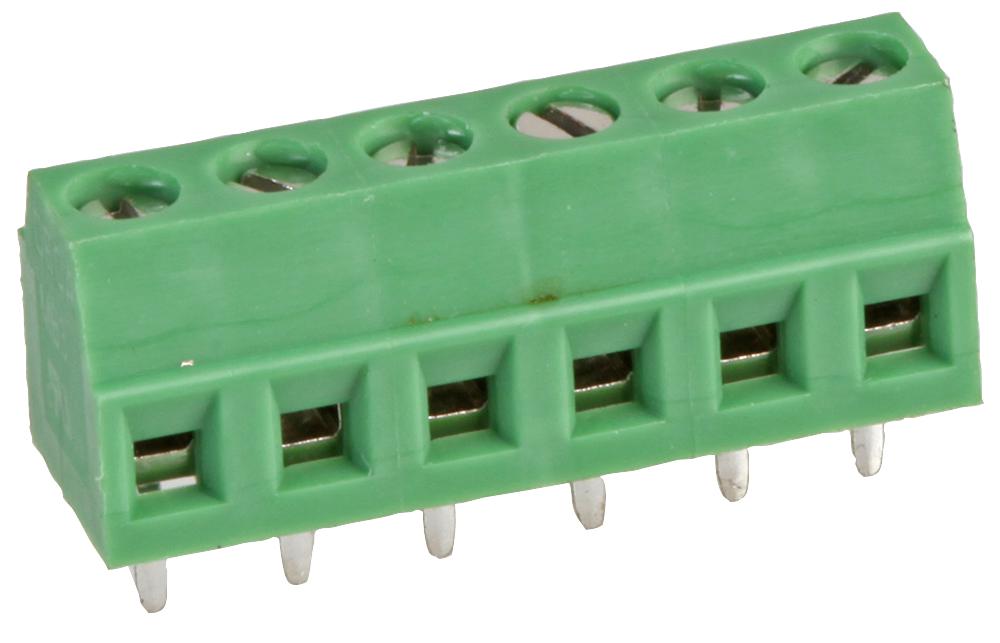

MULTICOMP-PRO MC000022 PCB Terminal Block
The MC000022 is a 6-position 3.81mm pitch PCB terminal block featuring tin-plated brass terminals and a green polyamide 66 insulating body. Designed for secure wire connections, it supports wiring with a 16 AWG gauge and wire strip lengths of 4 to 5mm. The terminal offers high insulation resistance exceeding 2000 Megaohms, an operating temperature range from -55°C to +105°C, and a right-angle through-hole configuration. Suitable for industrial applications, this Multicomp Pro product ensures reliable electrical connectivity in various electronic systems.
MULTICOMP-PRO MC000022 PCB Terminal Block Specifications:
- Pitch: 3.81mm (0.15 inch)
- Number of Poles: 6
- Wire Range: 16 AWG
- Wire Strip Length: 4 to 5mm
- Material: Polyamide 66 - Green
- Terminal Material: Brass, Tin Plated
- Screw Material: Steel, Nickel Plated
- Insulation Resistance: > 2000 Megaohms
- Rated Current: 10A
- Rated Voltage: 300V AC
- Min. Insulation Withstand Voltage: 2000V AC
- Operating Temperature: -55°C to +105°C
- Dimensions: Length varies with number of poles, pitch 3.81mm
- RoHS Compliant
Buy the Multicomp Series 3.81mm PCB Terminal Block: MC000022
Purchase the Multicomp Series 3.81mm PCB terminal block MC000022 online today and ensure secure electrical connections for your projects. Featuring a robust green polyamide insulator and tin-plated brass terminals, this six-position terminal block is easy to install with screw connections supporting 16 AWG wire and wire strip lengths of 4-5mm. Its excellent insulation resistance over 2000 Megaohms and temperature tolerance from -55°C to +105°C make it suitable for a wide range of industrial applications. Order now to benefit from fast delivery and quality assurance.
Buy Multicomp Series 3.81mm PCB Terminal Block MC000022 now and experience unmatched reliability and performance in your electrical connections.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC000022?
You can click on the BUY or RFQ button to purchase MC000022 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000022?
You can download the MC000022 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC000022?
MULTICOMP-PRO
