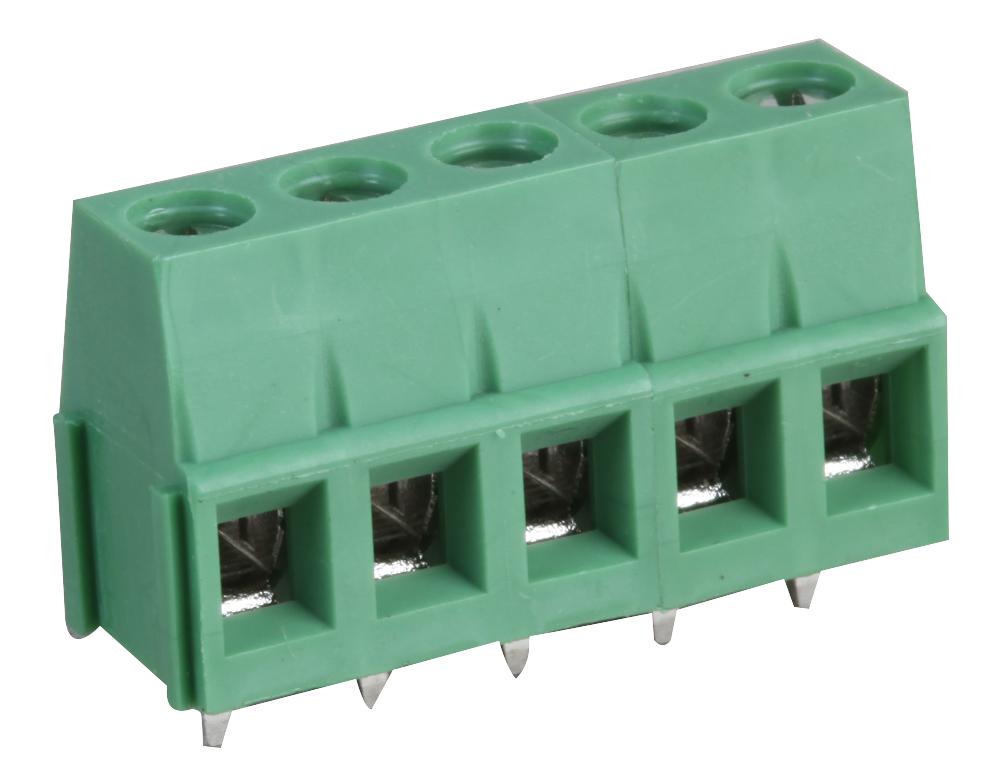

MULTICOMP PRO MC000037 Terminal Block
This terminal block features a 5.08mm pitch and is suitable for PCB mounting, with rated voltage of AC 300V and rated current of 16A. Made from durable polyamide66 housing, it uses a steel cage clamp with brass, tin-plated terminals secured by M2.6 steel, nickel-plated screws. Designed to operate within -40°C to +105°C, it provides reliable electrical connections for wire sizes from 26 AWG to 12 AWG. Available in various configurations, it is ideal for industrial applications requiring secure and efficient terminal connections.
MULTICOMP PRO MC000037 Terminal Block Specifications:
- Rated Voltage: AC 300V
- Rated Current: 16A
- Wire Size: 26 AWG to 12 AWG
- Housing Material: Polyamide66
- Cage Clamp: Steel, Ni Plated
- Terminal Material: Brass, Tin Plated
- Screw Size: M2.6, Steel, Ni Plated
- Operating Temperature: -40°C to +105°C
- Torque: 7.0 Ib-inch
- PCB Hole Diameter: 1.5mm
- UL Certification: Yes
- VDE Certification: Yes
- Certification: UL, VDE
Buy the Multicomp Series Terminal Block: 5.08mm Pitch - MC000037
Order the Multicomp 5.08mm pitch terminal block MC000037 online today for easy installation and dependable electrical connections. Built with durable polyamide66 and high-quality steel and brass components, this terminal block supports wire sizes from 26 AWG to 12 AWG and can operate from -40°C to +105°C. Its screw-secured design ensures firm connections suitable for industrial automation, control panels, and electronic wiring applications. Stock available now for fast delivery and seamless integration into your projects.
Buy Multicomp MC000037 terminal block now and experience reliable PCB wiring with secure screw connections and high-temperature endurance.
