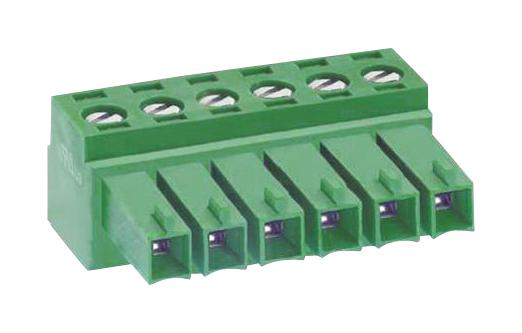

MULTICOMP PRO MC000060 PCB Terminal Block
The MC000060 is a 6-way, 3.5mm pitch pluggable PCB terminal block featuring tin-plated phosphor bronze terminals and a green polyamide 66 insulating body. It supports wire gauges from 16 to 26 AWG, with a wire strip length of 6.5 mm. The terminal block withstands operating temperatures from -40°C to +105°C and has an insulation resistance exceeding 2000 MΩ. Its design ensures reliable electrical connections, and it is suitable for various industrial and electronic applications. The product is part of the Multicomp Pro line, known for high quality and customer satisfaction.
MULTICOMP PRO MC000060 PCB Terminal Block Specifications:
- Pitch: 3.5 mm (0.138 inch)
- Poles: 6 Way
- Material: Insulating Body - Polyamide 66, Green
- Contact Material: Phosphor Bronze, Tin plated
- Wire Range: 16 to 26 AWG
- Wire Strip Length: 6.5 mm
- Operating Temperature: -40°C to +105°C
- Insulation Resistance: > 2000 MΩ at 500 V DC
- Screw Torque: 2.5 Ib-inch
Buy the Multicomp Series 6 Way PCB Terminal Block: MC000060
Get the high-quality Multicomp Series 6 Way PCB Terminal Block MC000060 online today to enhance your electronic assemblies. Its 3.5mm pitch, green polyamide insulator, and tin-plated phosphor bronze terminals ensure durability and reliable connections. Supporting wire gauges from 16 to 26 AWG, it operates in temperatures ranging from -40°C to +105°C. The insulation resistance exceeds 2000 MΩ, making it ideal for industrial, automation, and electronic applications. Purchase now for quick delivery and dependable performance on all your projects.
Order your Multicomp Series 6 Way PCB Terminal Block MC000060 today and ensure reliable, high-quality electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000060?
You can click on the BUY or RFQ button to purchase MC000060 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000060?
You can download the MC000060 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000060?
MULTICOMP PRO
