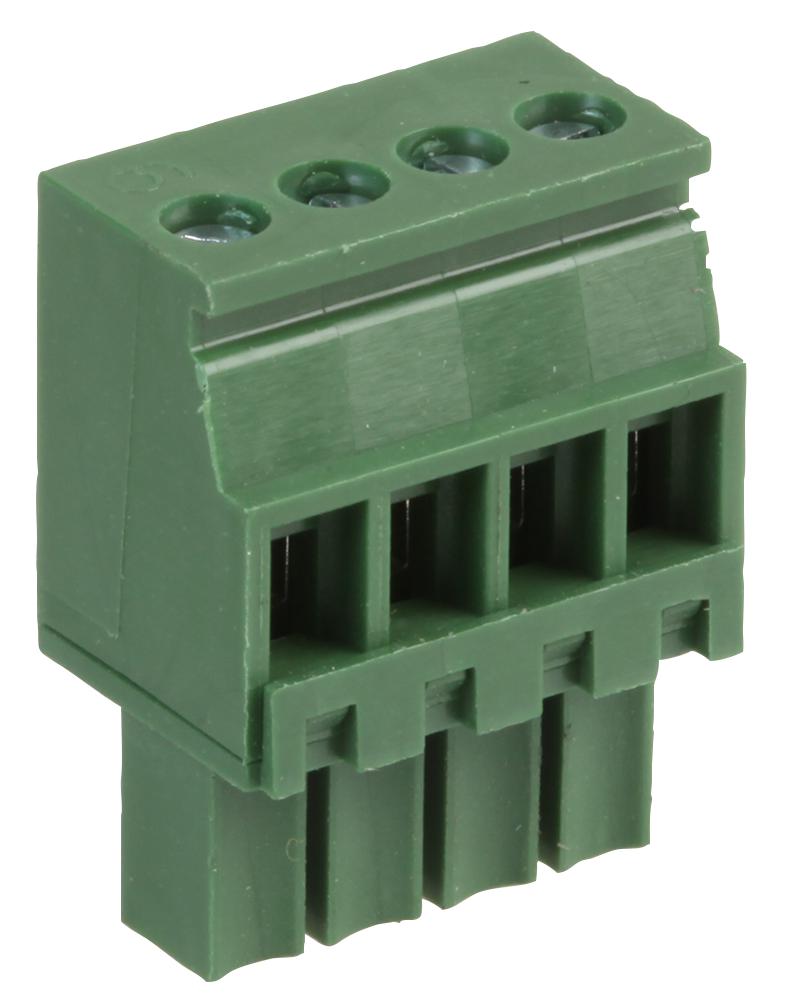

MULTICOMP PRO MC000074 3.5mm Connector
This 3.5mm pluggable reverse right angle connector features a green polyamide insulation body, tin-plated phosphor bronze contacts, and steel screws. Designed for reliable electrical connections, it supports currents up to 8 Amperes and a voltage of 300V AC. With a temperature range from -40°C to +105°C, it is RoHS compliant and suitable for compact electronic applications. The connector offers various pole configurations from 2 to 12 poles, with precise dimensions and pitch of 3.5mm, making it ideal for space-constrained, high-reliability circuits.
MULTICOMP PRO MC000074 3.5mm Connector Specifications:
- Current Rating: 8 Amperes, 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000MQ 500V DC
- Operating Temperature: -40°C to +105°C
- Material: Polyamide 66 (Insulating Body), Phosphor Bronze (Contacts), Brass (Cage), Steel (Screws)
- Coating: Tin Plated Contacts, Nickel Plated Cage
- Pitch: 3.5mm (0.138 inch)
- Poles: 2 to 12 poles depending on configuration
- Dimensions vary with number of poles, e.g., 2 poles: 7.8mm (0.307 inch), 12 poles: 42.8mm (1.685 inch)
Buy the Multicomp Series 3.5mm Reverse Right Angle Plug: MC000074
Order the Multicomp 3.5mm Reverse Right Angle Connector MC000074 online now for a compact, high-quality connection solution. This versatile plug features a durable green polyamide body, tin-plated phosphor bronze contacts for excellent conductivity, and a robust steel screw for secure assembly. Supporting a current of 8 Amperes and voltage of 300V AC, it offers a broad temperature range from -40°C to +105°C. Ideal for space-efficient electronic circuits, it ensures reliable performance in various industrial and consumer applications with multiple pole options.
Get Multicomp 3.5mm Reverse Right Angle Plug MC000074 today—designed for reliable, space-saving electrical connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000074?
You can click on the BUY or RFQ button to purchase MC000074 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000074?
You can download the MC000074 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000074?
MULTICOMP PRO
