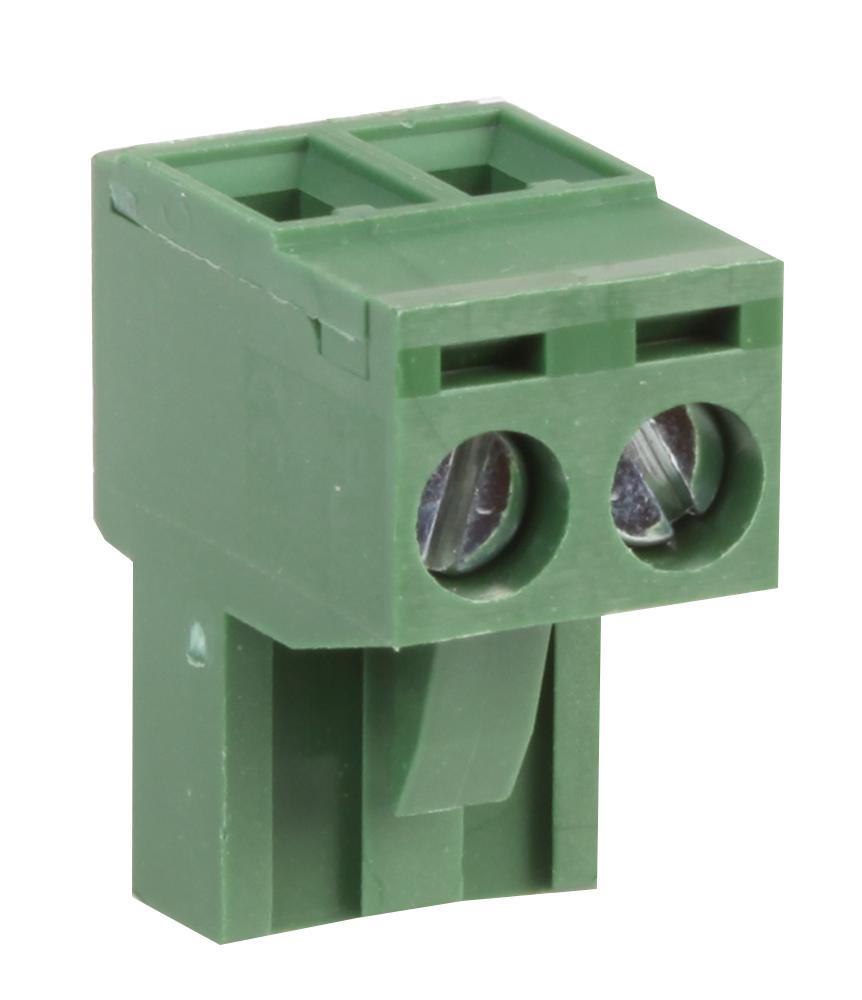

MULTICOMP-PRO MC000136 Pluggable Terminal Block
This pluggable terminal block from Multicomp is designed for industrial wiring applications, supporting current ratings of 16A and voltage up to 300V AC. It features a 5mm pitch, wire range of 12 AWG to 24 AWG, and insulation withstand voltage of 2,000V AC. The body is made from durable polyamide 66, with tin-plated phosphor bronze contacts and zinc-plated steel screws, suitable for operating temperatures between -40°C and +105°C. Available in various pole configurations from 2 to 12 ways, it ensures secure and reliable electrical connections with a screw torque of 7 Ib-inch.
MULTICOMP-PRO MC000136 Pluggable Terminal Block Specifications:
- Current Rating: 16 Amperes, 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000MQ 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 4mm to 5mm
- Wire Range: 12 AWG to 24 AWG
- Screw Torque: 7 Ib-inch
- Pitch: 5mm (0.197 Inch)
- Pole A: 10mm (0.394 Inch)
- Pole B: 15mm (0.591 Inch)
- Pole C: 20mm (0.787 Inch)
- Pole D: 25mm (0.984 Inch)
- Pole E: 30mm (1.184 Inch)
- Pole F: 40mm (1.575 Inch)
- Insulating Body: Polyamide 66 - Green
- Contact Material: Phosphor Bronze, Tin plated
- Cage Clamp: Brass, Ni plated
- Screw: Steel, Zinc+Cr+3
- Dimensions vary depending on pole number
- Compatible with MC000136 to MC000143 part numbers
Buy the Multicomp MC000136 – Reliable Pluggable Terminal Block for Industrial Applications
Purchase the Multicomp Pluggable Terminal Block online today to ensure reliable, modular electrical connections for industrial wiring projects. Designed for quick installation and secure contact, this terminal block supports 16A current and 300V AC voltage with a 5mm pitch, accommodating wire sizes from 12 to 24 AWG. Its durable polyamide body, tin-plated contacts, and zinc-plated steel screws build long-lasting, high-performance connections suitable for demanding environments. Easy to wire, quick to configure, and versatile for various industrial applications, this terminal block guarantees safety and efficiency in your electrical setups.
Get Multicomp MC000136 today—built for secure connections in industrial wiring and automation systems.
