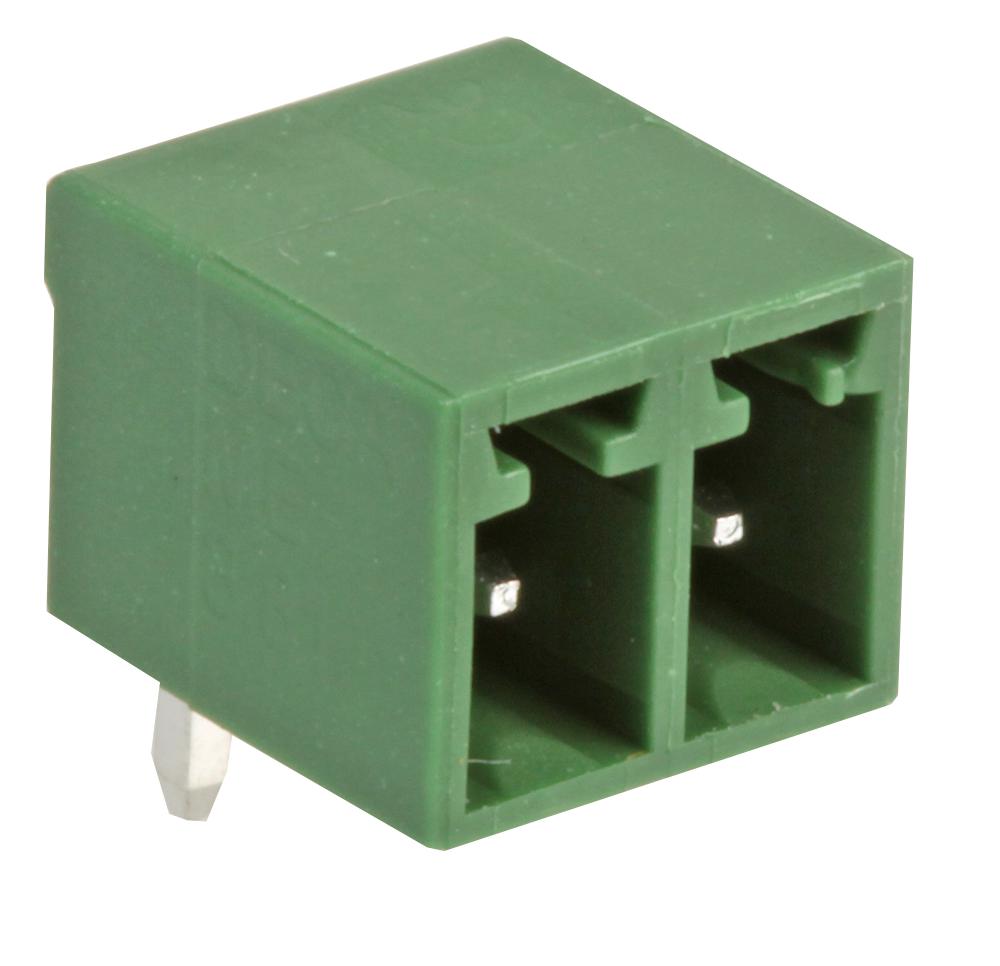

MULTICOMP PRO MC000200 Pluggable Terminal Block
Pluggable terminal blocks offer reliable connections for industrial wiring, designed with a polyamide 66 insulating body and tin-plated brass solder pins. These 5.08mm pitch headers are rated for 12A at 300V AC, suitable for switchgear and control panel applications. They withstand insulation voltages up to 2,000V AC and operate efficiently in temperatures from -40°C to +105°C. Available in various ways from 2 to 12 poles, they provide flexible, secure electrical terminations for efficient circuit management and maintenance.
MULTICOMP PRO MC000200 Pluggable Terminal Block Specifications:
- Rated Current: 12 Amperes
- Rated Voltage: 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000 MΩ at 500V DC
- Operating Temperature: -40°C to +105°C
- Pitch: 5.08mm (0.2 Inch)
- Pole Sizes: 2 to 12 poles
- Pole Dimensions: 11.76mm to 62.56mm in length
- Insulating Body Material: Polyamide 66 - Green
- Solder Pin Material: Brass, Tin Plated
- Mounting: Vertical headers for PCB connections
Buy the Multicomp Pluggable Terminal Blocks – Reliable Circuit Connections for Industrial Applications
Secure your electrical connections with our high-quality pluggable terminal blocks, rated for 12A and 300V AC. Crafted with durable polyamide insulation and brass solder pins, ideal for industrial wiring, automation, and control systems. Available in multiple pole configurations from 2 to 12 poles, these headers ensure reliable performance under demanding conditions. Easy to install and maintain, they support efficient circuit management with excellent insulation resistance and temperature tolerance from -40°C to +105°C. Enhance your wiring solutions today.
Buy Multicomp MC000200 now and experience unmatched reliability and efficient wiring for industrial control panels.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000200?
You can click on the BUY or RFQ button to purchase MC000200 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000200?
You can download the MC000200 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000200?
MULTICOMP PRO
