MULTICOMP-PRO MC000242 RF Coaxial Connector
The IP67 SMA bulkhead jack is a high-performance RF connector with a stainless steel body and beryllium copper center contacts, designed for durable use in demanding environments. It features PTFE insulation compliant with ASTM D1457 and ASTM D1710 standards and supports impedance of 50Ω with an frequency range up to 18 GHz. Capable of handling a max voltage of 500V and operating across -65°C to +165°C, it meets MIL-STD-348A standards. Suitable for communications, aerospace, defense, and military applications requiring waterproof, reliable, and high-frequency performance.
MULTICOMP-PRO MC000242 RF Coaxial Connector Specifications:
- Frequency Range: DC-18GHz
- Nominal Impedance: 50Ω
- Working Voltage Max: 500V
- Proof Voltage: 1,000V
- VSWR Max: 1.3
- Bodies: Stainless Steel per JIS SUS 303
- Center Contact: Beryllium Copper per ASTM B196 UNS C173000
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Interface Compliance: MIL-STD-348A
- Operating Temperature Range: -65°C to +165°C
- Waterproof Lead Test Pressure: 3kg/cm² Min.
- Connector Diameter: 1/4 inch-36UNS, HEX: 11.1437 mm
- Finish: Body stainless steel with gold plating, Beryllium Copper contact with gold plating

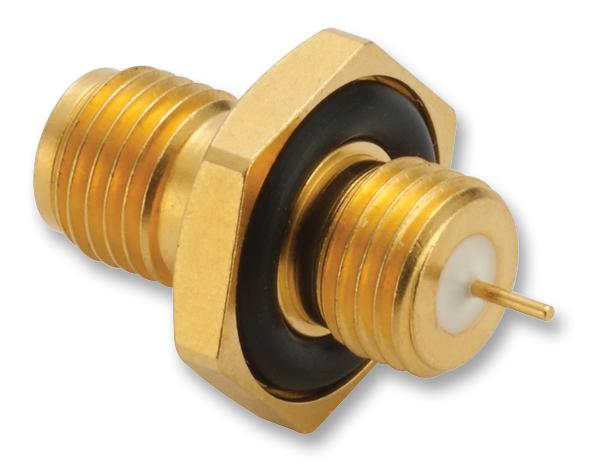

Buy the Buy Premier Farell SMA Bulkhead Jack Part Number MC000242 Online
Enhance your RF and coaxial connection setups with the premium SMA bulkhead jack, featuring a stainless steel body, beryllium copper contacts, and IP67 waterproof rating. With a frequency limit of 18 GHz, 50Ω impedance, and temperature resilience from -65°C to +165°C, this connector offers durability and reliable performance across various demanding industries such as aerospace, defense, and telecommunications. Easy to install with front mount solder termination, it guarantees stable, high-frequency signals in harsh environments, ensuring your systems operate smoothly and efficiently. Order online today for swift delivery and dependable quality.
Order your Premier Farell SMA Bulkhead Jack MC000242 today and ensure high-quality, waterproof RF connections for your critical projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC000242?
You can click on the BUY or RFQ button to purchase MC000242 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000242?
You can download the MC000242 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC000242?
MULTICOMP-PRO
