MULTICOMP PRO MC000244 SMA Bulkhead Jack
The MC000244 is an IP67-rated SMA bulkhead jack connector constructed with a nickel-plated brass body and beryllium copper center contacts, complying with ASTM B196 UNS C17300 standards. It features PTFE insulation in accordance with ASTM D1457 and ASTM D1710 standards. This RF/coaxial connector has an edge-mount design and interface compatibility according to MIL-STD-348A standards. It operates at 50Ω impedance, with a frequency range up to 6 GHz and a maximum working voltage of 500V. Suitable for applications in communications, networking, defense, military, and aerospace sectors. Please note that high market demand has extended lead times, and product availability may fluctuate.
MULTICOMP PRO MC000244 SMA Bulkhead Jack Specifications:
- Frequency Range: DC-6GHz
- Impedance: 50Ω
- Working Voltage Max: 500V
- Proof Voltage: 1,000V
- VSWR Max: 21.3
- Body Material: Brass per JIS-C3604 with Nickel finish
- Centre Contact Material: Beryllium Copper per ASTM B196 UNS C17300, Gold plated 50μ" Min.
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Interface: MIL-STD-348A compliant
- Operating Temperature Range: -65°C to +165°C
- Environmental: Waterproof with Lead Test Pressure 6kg/cm² Min.
- Mounting: Edge mount, PCB mounting recommended
- Finish: Nickel plated body, Gold plated contact, Black Silicone O-ring
- Dimensions: Millimetres (Inches), specific sizes approx 90.51mm length

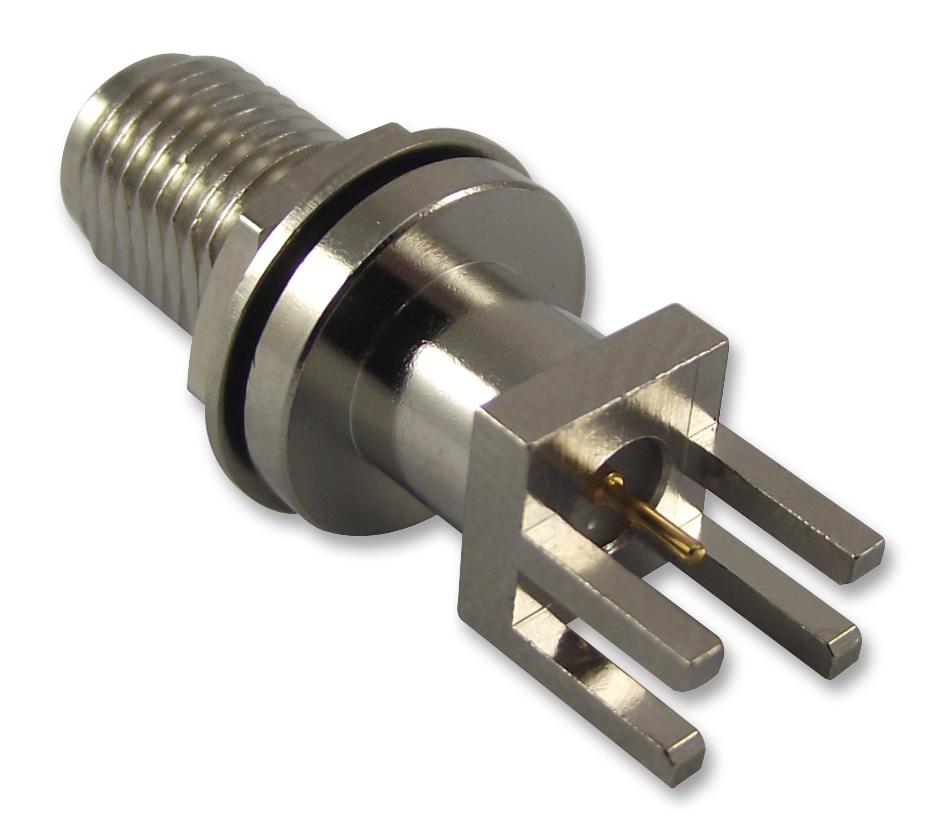

Buy the Buy MultiComp SMA Bulkhead Jack Part Number MC000244 Online
Secure your RF and coaxial connections today by ordering the MultiComp SMA Bulkhead Jack MC000244 online. Featuring IP67 waterproof protection, nickel-plated brass body, beryllium copper center contacts, and PTFE insulation, this edge-mount interface offers high performance up to 6 GHz frequency range. Its durable construction withstands harsh environments from -65°C to +165°C, making it ideal for communications, military, aerospace, and networking applications. Limited availability due to high demand—purchase now for dependable, professional-grade connectivity in your critical systems.
Order your MultiComp SMA Bulkhead Jack MC000244 today and ensure reliable RF connectivity with IP67 waterproof protection for your critical projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000244?
You can click on the BUY or RFQ button to purchase MC000244 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000244?
You can download the MC000244 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000244?
MULTICOMP PRO
