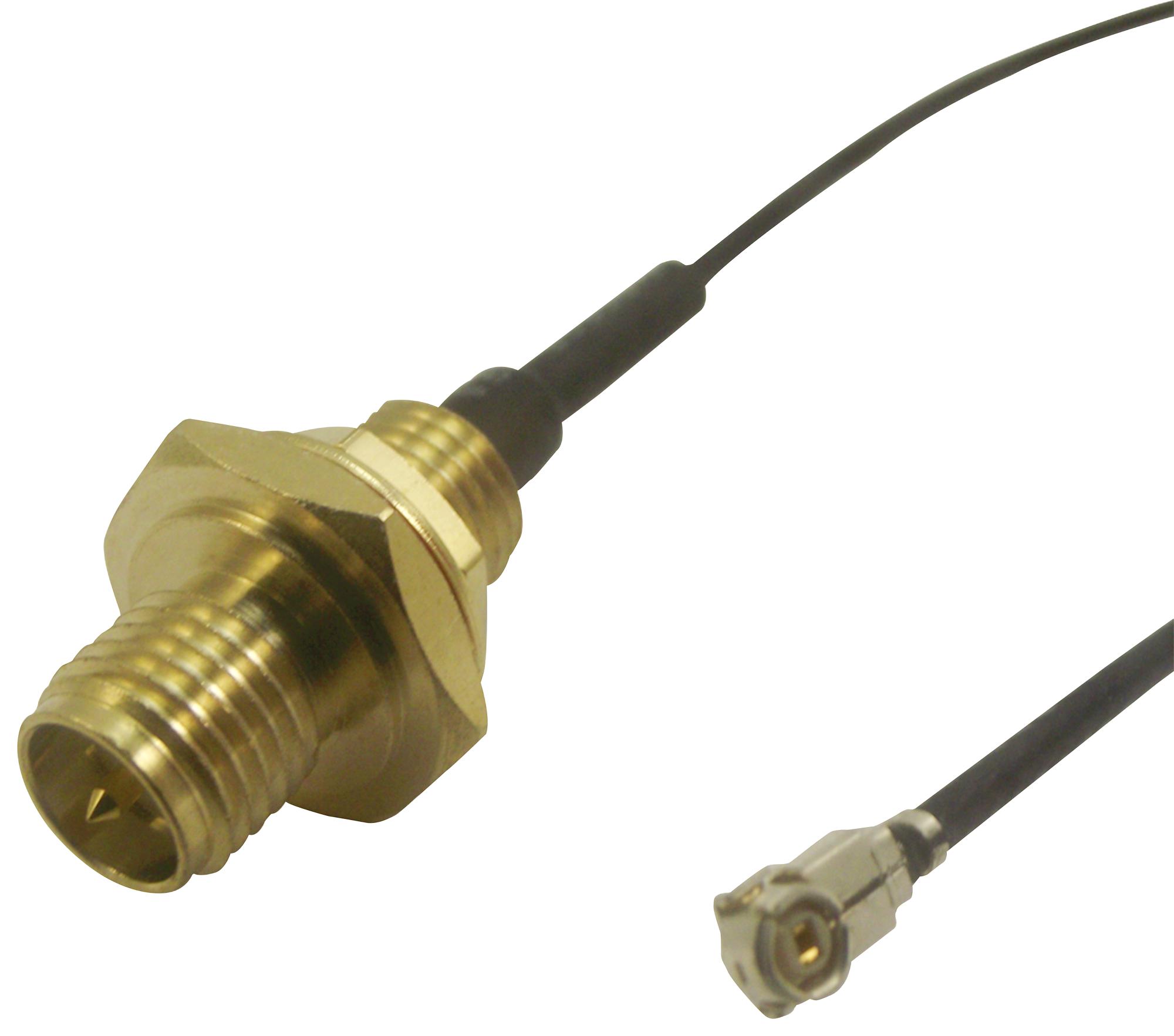

MULTICOMP PRO MC000798 RF Cable Assembly
The MC000798 is a 100mm RF coaxial cable assembly with a low-loss 1.37mm dielectric cable and 50Ω impedance. It features a rear lock RP-SMA bulkhead jack and a 90° UFL plug, ensuring a secure connection for outdoor RF communication. Operating from DC to 3 GHz, it supports a maximum voltage of 60Vrms, dielectric withstand voltage of 200Vrms, and insulator resistance of 500MΩ. Its VSWR is 1.4:1, with an insertion loss up to -0.7dB, suitable for applications requiring durability and high-frequency performance.
MULTICOMP PRO MC000798 RF Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 3 GHz
- Working Voltage: 60Vrms Max.
- Dielectric Withstanding Voltage: 200Vrms Min.
- Insulator Resistance: 500MΩ Min.
- Connector: RP-SMA rear lock bulkhead jack (IP67), 90° UFL plug
- Cable Length: 100mm, 150mm, 200mm options
- Maximum VSWR: 1.4:1
- Insertion Loss: up to -0.7dB
- Cable Jacket Color: Black
- Temperature Range: -20°C to +70°C
- RoHS Compliant
Buy the Multicomp MC000798 – Reliable RF Cable Assembly for Industrial Applications
Purchase the RF cable assembly online today and enjoy a durable, high-performance connection for outdoor RF communication systems. Designed with a low-loss dielectric cable and robust IP67 connectors, this assembly supports frequencies up to 3GHz, ensuring optimal signal integrity. Its compact length options make installation flexible, and its specifications meet industry standards for voltage and resistance. Whether for industrial, telecom, or broadcast applications, this cable provides reliable performance, easy installation, and long-term durability to meet your technical needs.
Get Multicomp MC000798 today—built for precision, long-lasting durability, and outdoor RF communication security.
