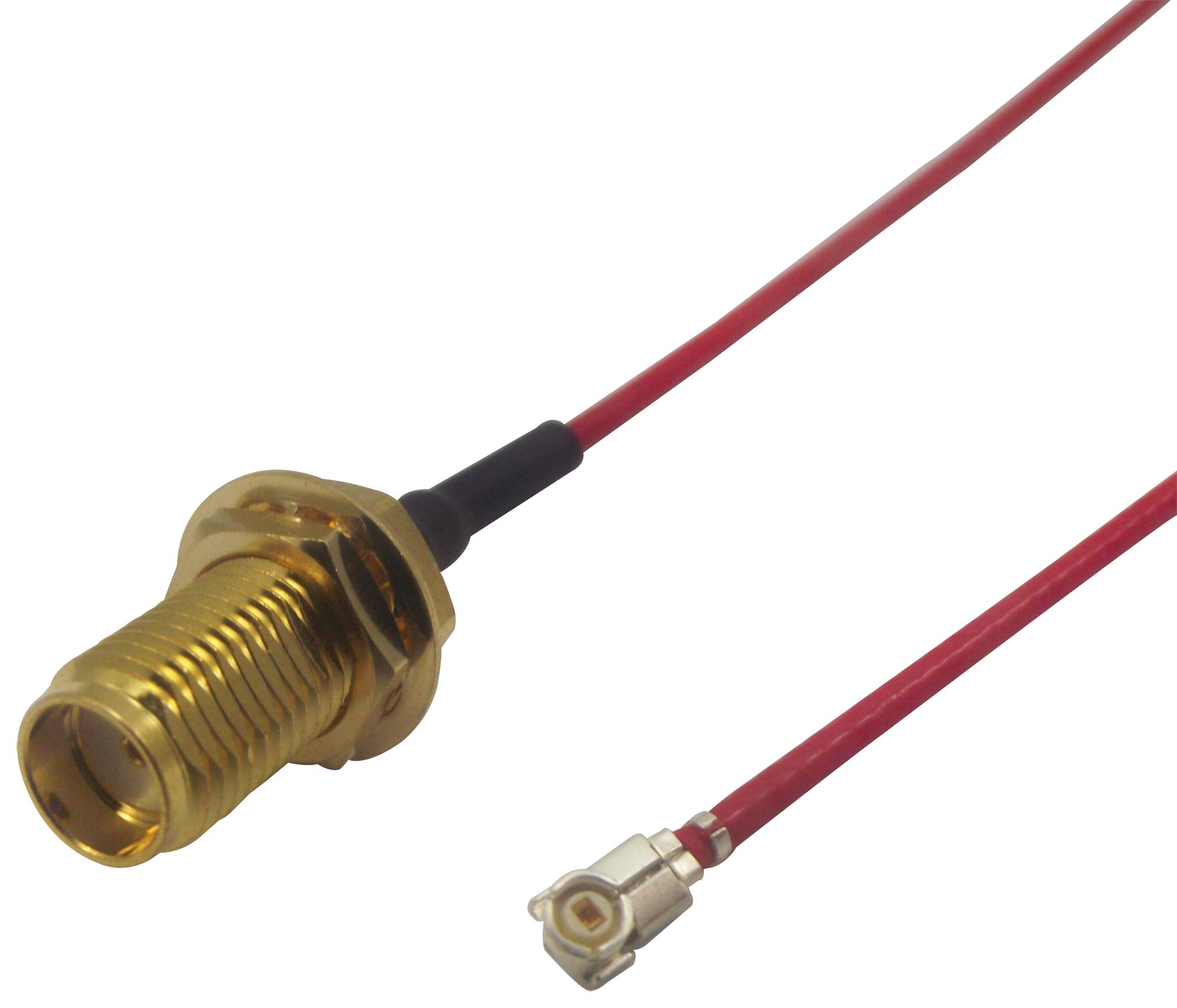

MULTICOMP PRO MC000809 RF coaxial cable assembly

The MC000809 is a 100mm red RF coaxial cable assembly featuring a 1.37mm low-loss micro coaxial cable. It has a 50 ohm impedance and is equipped with an SMA bulkhead jack on one end and a 90° U.FL plug on the other. Designed for outdoor RF communication applications, it operates within a frequency range of DC to 3 GHz, with a maximum working voltage of 60V RMS and dielectric withstand voltage of 200V RMS. The cable offers an insulator resistance of at least 500 MΩ, with a maximum Voltage Standing Wave Ratio (VSWR) of 1.4:1 and insertion loss up to -0.7dB. The sheath is colored red, and the operational temperature range is from -20°C to +70°C.

View MC000809Datasheet [pdf]

Buy the Premier RF Cable Assembly – Reliable RF Coaxial Cable for Industrial Applications

Enhance your RF communication setup with our premium RF coaxial cable assembly, featuring 50Ω impedance, high-quality connectors, and a durable red sheath. Perfect for outdoor and industrial applications, this 100mm cable operates from DC to 3 GHz, ensuring robust signal integrity. With a maximum voltage of 60V RMS and dielectric withstand voltage of 200V RMS, it guarantees reliable performance. Its low insertion loss and VSWR of 1.4:1 optimize signal transmission. Get this high-performance RF cable today for your precise communication needs.

Order your Premier RF Cable Assembly MC000809 today and ensure your RF communication systems operate with dependable high-quality cables designed for industrial use.
