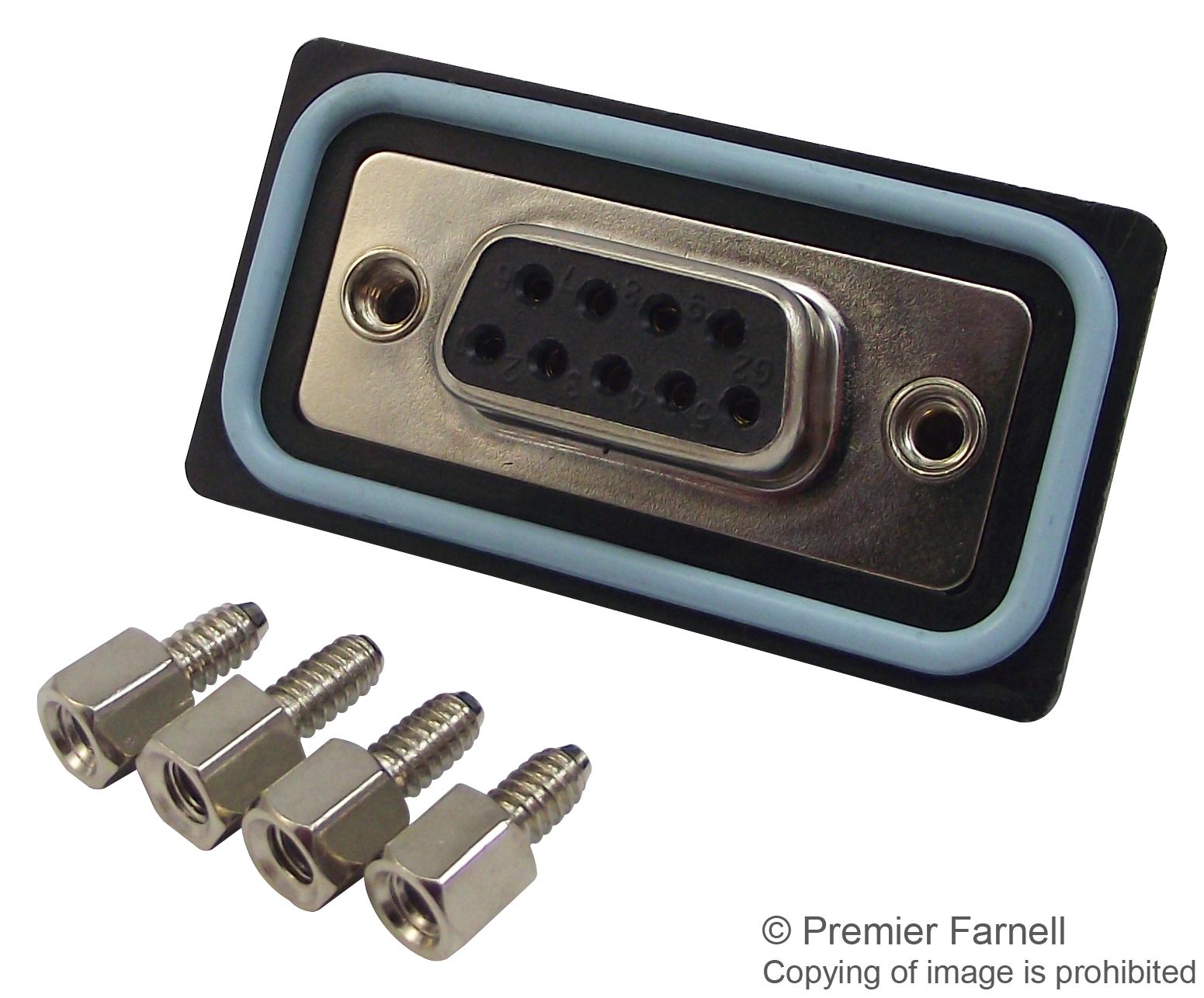

MULTICOMP PRO MC000963 Waterproof D-Sub Connector
The waterproof D-Sub connectors are designed for reliable electrical connections in challenging environments, offering IP67 and IP68 ratings when properly mated. These come in standard density, right-angle PCB configurations for versatile mounting options. Made with durable materials such as nylon, PBT, cold rolled steel, and brass, they feature gold-plated pins, silicon O-rings for sealing, and are RoHS compliant. Suitable for applications requiring up to 5A current and 120V AC voltage, they withstand temperatures from -40°C to +105°C, ideal for industrial and outdoor electronics. Easy to install with panel thickness compatibility and included liquid glue for enhanced waterproof sealing.
MULTICOMP PRO MC000963 Waterproof D-Sub Connector Specifications:
- Pin Configuration: 9 pins (male and female options)
- Current Rating: 5A per contact
- Voltage Rating: 120V AC (DC rating not specified)
- Dielectric Withstanding Voltage: 1,000V AC RMS
- Insulation Resistance: 100MQ Min. at 500V DC
- Contact Resistance: 25mΩ Max.
- Operating Temperature: -40°C to +105°C
- Waterproof Rating: IP67 (standard), IP68 (when properly mated)
- Material: Nylon+33% GF for core, PBT insulator, Cold Roller Steel Ni Plated shell, Brass gold-plated pins
- Dimensions: Panel thickness 1.2mm to 2.0mm, screw length 5.0mm to 6.0mm, overall size compatible with right-angle PCB mounting
Buy the Buy Multicomp Waterproof D-Sub Connector Part Number MC000963 Online
Secure your electronic projects with the high-quality waterproof D-Sub connectors from Multicomp. Designed for outdoor and industrial environments, these connectors feature IP67/IP68 ratings, gold-plated pins, and durable nylon and steel materials. Easy to install with panel thickness compatibility, they support up to 5A current and 120V AC voltage. Perfect for harsh conditions, they resist water and dust while maintaining excellent electrical performance. Buy online today and enhance your project's reliability with trusted waterproof connectivity solutions.
Order your Multicomp Waterproof D-Sub 9 pin Female Connector MC000963 today and ensure your projects are protected with high-quality waterproof electrical connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000963?
You can click on the BUY or RFQ button to purchase MC000963 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000963?
You can download the MC000963 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000963?
MULTICOMP PRO
