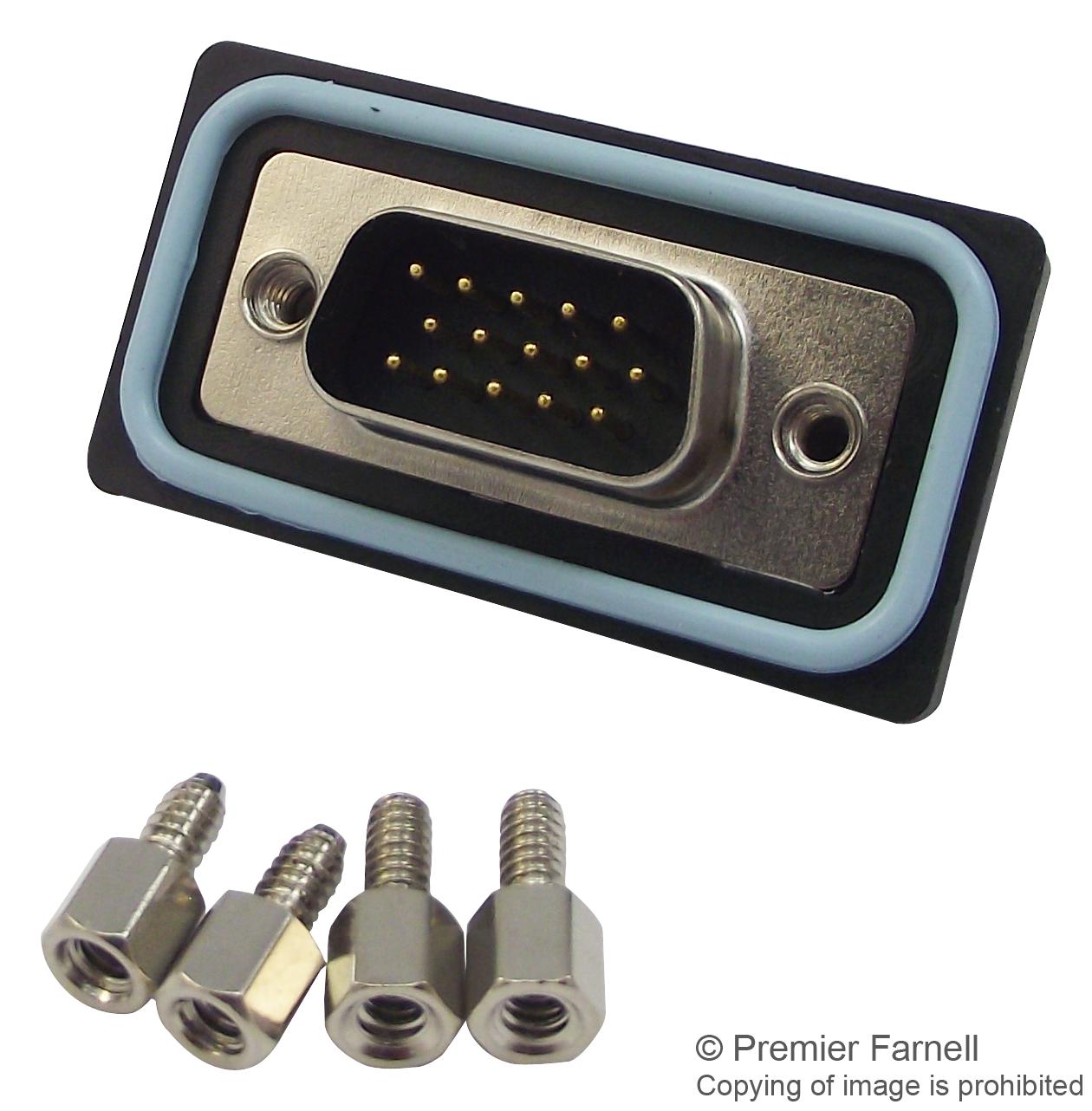

MULTICOMP PRO MC000964 Waterproof D-Sub Connector
These waterproof high-density D-Sub connectors are designed for reliable panel mounting with solder pins, suitable for immersion in water up to 1 meter for 24 hours, ensuring robust performance in harsh environments. Available in 9-pin and 15-pin configurations, they feature IP68-rated waterproof sealing, gold-plated contacts rated for 2A and 120V AC, with dielectric withstand voltage of 1000V. Made of durable nylon and cold-rolled steel, they operate efficiently from -40°C to +105°C. The connectors include silicone O-rings, brass screws with Ni plating, and are RoHS compliant, ideal for industrial automation, control panels, and outdoor equipment.
MULTICOMP PRO MC000964 Waterproof D-Sub Connector Specifications:
- Waterproof Rate: IP68, immersed in 1M water for 24 hours
- Signal Contact Current Rating: 2A
- Voltage Rating: 120V AC
- Dielectric Withstanding Voltage: 1000V
- Insulation Resistance: 100MQ Min. at DC 500V
- Contact Resistance: 25mQ Max.
- Operating Temperature: -40°C to +105°C
- Shell Material: Cold Roller Steel Ni Plated
- Insulator Material: PBT Black
- Core Material: Nylon+33%GF Black
- Pin Material: Brass Gold Plated
- Screw Material: Brass Ni Plated
- Dimensions: Millimetres, with panel thickness compatibility (1.2mm to 2.0mm)
- Connector Types: Male 9 and 15 pin, Female 9 and 15 pin, straight PCB mounting
- RoHS Compliant
Buy the Multicomp Series Waterproof D-Sub Connectors: MC000964
Order the Multicomp waterproof D-Sub connector MC000964 online today for high-density, reliable connections in harsh conditions. Featuring IP68 sealing, gold-plated contacts, and robust materials, these connectors ensure secure, durable connections for your industrial applications, outdoor setups, and control panels. With straightforward PCB mounting and resistant to water immersion, they offer excellent performance from -40°C to +105°C. Buy now to enhance your electronic devices with top-quality waterproof connectors designed for demanding environments.
Buy Multicomp waterproof D-Sub connectors MC000964 now and experience unmatched reliability and high-density performance in harsh environments.
