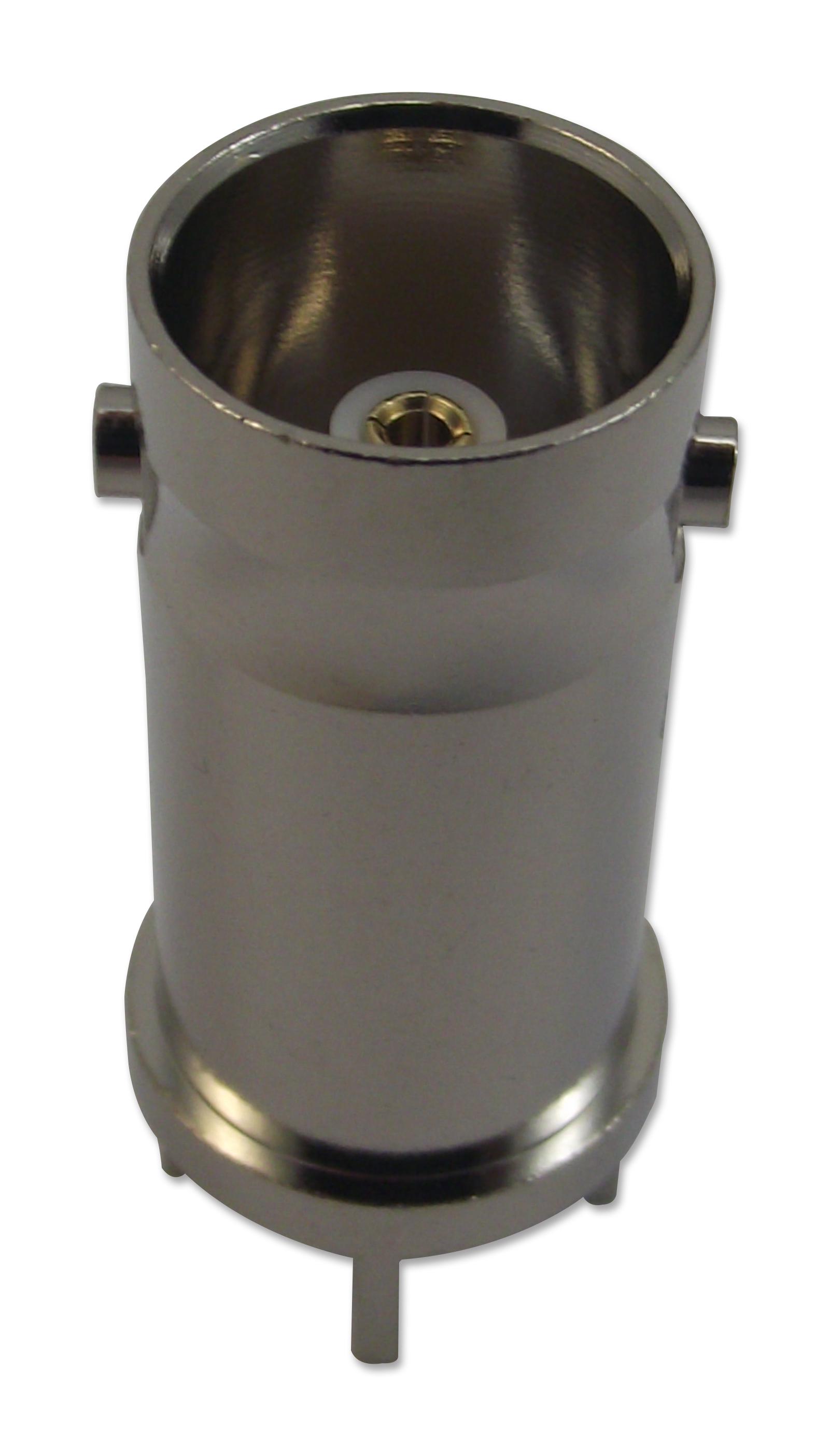

MULTICOMP PRO MC000974 BNC Connector
The MC000974 is a high-quality PCB-mount BNC straight jack receptacle featuring a nickel-plated brass body, gold-plated brass center contact, and PTFE insulator. Designed for reliable RF connections, it operates within a temperature range of -65°C to 165°C, supporting frequencies up to DC-1GHz. With a maximum voltage rating of 500V, it offers an impedance of 75Ω and a VSWR of 1.5. This durable connector is suitable for professional electronic and communication applications requiring precise, stable signal transmission in a compact design.
MULTICOMP PRO MC000974 BNC Connector Specifications:
- Frequency Range: DC-1GHz
- Nominal Impedance: 75Ω
- Voltage Rating: 500V Max.
- VSWR: 1.5 Max.
- Bodies Material: Brass, Nickel Plated
- Centre Contact: Brass, Gold Plated
- Insulation Material: PTFE
- Operating Temperature Range: -65°C to +165°C
- Mounting: PCB Mount
- Dimension: Standard BNC size
- Finish: Nickel body, Gold-plated contact
Buy the Multicomp Pro MC000974 – Reliable BNC Connector for Industrial Applications
Enhance your electronic projects with the reliable Multicomp Pro BNC connector. Designed for PCB mounting, this RF connector supports DC-1GHz frequencies and offers a maximum voltage of 500V. Its durable nickel-plated brass body and gold-plated contact ensure stable, corrosion-resistant connections. Operating efficiently within temperatures from -65°C to 165°C, it’s ideal for professional communication, test equipment, and transmission systems. Purchase online now for fast delivery and dependable performance in all your radio frequency applications.
Order your Multicomp Pro MC000974 BNC connector today and ensure your RF connections are secure, durable, and ready for demanding electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000974?
You can click on the BUY or RFQ button to purchase MC000974 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000974?
You can download the MC000974 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000974?
MULTICOMP PRO
