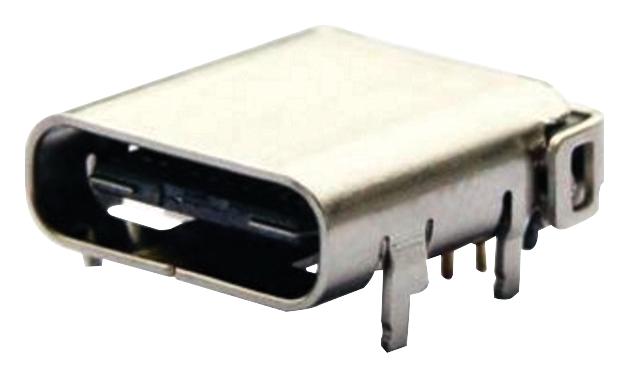

MULTICOMP PRO MC001003 USB Power Connector
This high-quality USB Type-C receptacle supports both SMT and dip mounting configurations, featuring a spring mechanism for reliable connections. Designed for industrial applications, it offers robust electrical performance with a current capacity of 5A for VBUS and GND pins, and withstands voltage of 100V AC for 1 minute. The connector's durable construction includes nickel plating and gold flash contact plating for environmental resistance. Operating efficiently within a temperature range of -5°C to +85°C, it ensures long-term reliability in demanding conditions. Suitable for power delivery systems, it features easy assembly and high mating cycle durability.
MULTICOMP PRO MC001003 USB Power Connector Specifications:
- Insertion Force: -5N to 20N
- Withdrawal Force: 8N to 20N
- After 10,000 cycles:6N to 2N Min.
- Applied Current: VBUS Pin 5A, GND Pin 6.25A, VConn Pin 1.25A, Other Contacts 0.25A
- Withstanding Voltage: 100V AC for 1 minute
- Insulation Resistance: 100MO Min.
- Contact Resistance: Initial 40mQ Max., After Test 50mQ Max.
- Shell Plating: Nickel
- Contact Plating: Au 1 inch contact area, Gold Flash solder area
- Operation Temperature: -5°C to +85°C
- Dimensions: Centre Height 1.63mm, Dip Length 1.25mm
- Material: SUS (shell, latch), Thermoplastic (latch housing, SMT and DIP housings)
- Number of contacts: 24 positions
Buy the Multicomp Pro MC001002 – Reliable USB Type-C Connection for Industrial Applications
Purchase the USB Power Connector online today for reliable power and data transfer in industrial applications. Designed for high durability with a current capacity of 5A, it supports both SMT and dip mounting, ensuring versatile installation options. Ideal for demanding environments, it features nickel plating's corrosion resistance and gold flash contacts for optimal conductivity. Easy to assemble and tested for 10,000 mating cycles, this connector guarantees long-term performance. Upgrade your power delivery system now with this robust and high-quality USB Type-C receptacle available online.
Get Multicomp Pro MC001002 today—built for high-current power delivery and durable performance in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001003?
You can click on the BUY or RFQ button to purchase MC001003 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001003?
You can download the MC001003 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001003?
MULTICOMP PRO
