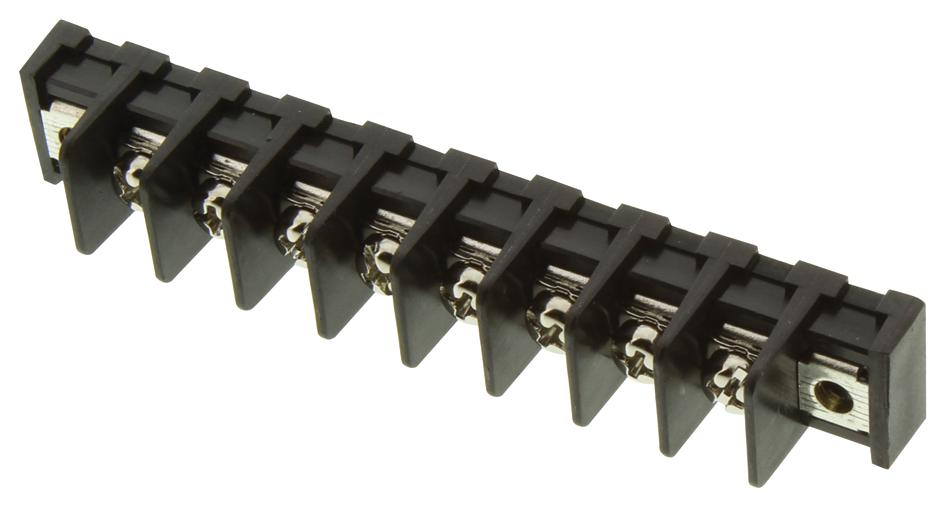

MULTICOMP PRO MC001355 Terminal Block
This 8-pole terminal block by Multicomp Pro offers reliable connections for industrial wiring with a current rating of 20Amp and voltage of 300V. Constructed with UL94V-0 rated PBT insulation and brass terminals with tin plating, it withstands voltages up to AC2000V and operates effectively between -40°C and +120°C. The wire range accommodates 22 to 14 AWG, with a strip length of up to 9mm. Dimensions are 97.5mm in length and 66.5mm in width, ensuring a secure, professional connection suitable for demanding electrical applications.
MULTICOMP PRO MC001355 Terminal Block Specifications:
- Current Rating: 20Amp
- Voltage Rating: 300V
- Insulation withstands Volt: AC2000V min
- Insulation Resistance: >2,000MQ DC500V
- Operation Temperature: -40°C to +120°C
- Wire Range: 22-14 AWG
- Wire Strip Length: Up to 9mm
- Screw Torque: 12lb-inch
- Material: PBT (UL94V-0) insulator, Brass tin-plated terminals, Steel screw Ni plate
- Dimensions: Length 97.5mm, Width 66.5mm for 8 poles
Buy the Buy Multicomp Terminal Block Part Number MC001355 Online
Purchase the Multicomp terminal block MC001355 online for dependable electrical connections with a high 20Amp current rating and versatile wire range. Crafted with UL94V-0 PBT insulation and brass terminals with tin plating, these terminal blocks withstand voltages up to AC2000V and operate efficiently from -40°C to +120°C. With dimensions of 97.5mm by 66.5mm and a wire strip length of 9mm, they offer secure, professional-quality connections suitable for industrial, automation, and control applications. Order now for fast, reliable delivery.
Get Multicomp terminal block MC001355 today—designed for durable and secure electrical connections in industrial environments.
