MULTICOMP PRO MC001501 RF Connector
The IP67 RPSMA Bulkhead Jack - UFL is a durable, high-performance connector designed for harsh environments. It features a compact design with impedance matching for frequencies up to 6 GHz, making it ideal for wireless communication, RF, and antenna applications. Its IP67 rating ensures water and dust resistance, suitable for outdoor installations. The assembly includes a crimp connector for 1.37mm cable, a halogen-free shell, contact, and heat shrink tubing, providing a reliable connection with minimal insertion loss and VSWR. It supports up to 60 Vrms working voltage and 200 Vrms dielectric withstand voltage, with low impedance resistance and robust construction.
MULTICOMP PRO MC001501 RF Connector Specifications:
- Impedance: 50 Ω
- Frequency Range: DC to 6 GHz
- Working Voltage: 60 Vrms Max.
- Dielectric Withstanding Voltage: 200 Vrms Max.
- Insulator Resistance: 500 MΩ Min.
- Insertion Loss: -1.0 dB Max.
- VSWR: 1.65:1 Max.
- Dimensions: Diameter approximately 12 mm, length approximately 14 mm
- Material: Metal shell, insulator material for stability
- Waterproof rating: IP67
- Cable Compatibility: 1.37 mm diameter blue cable
- Connector Type: RPSMA bulkhead jack with UFL interface
- Certifications: RoHS Compliant

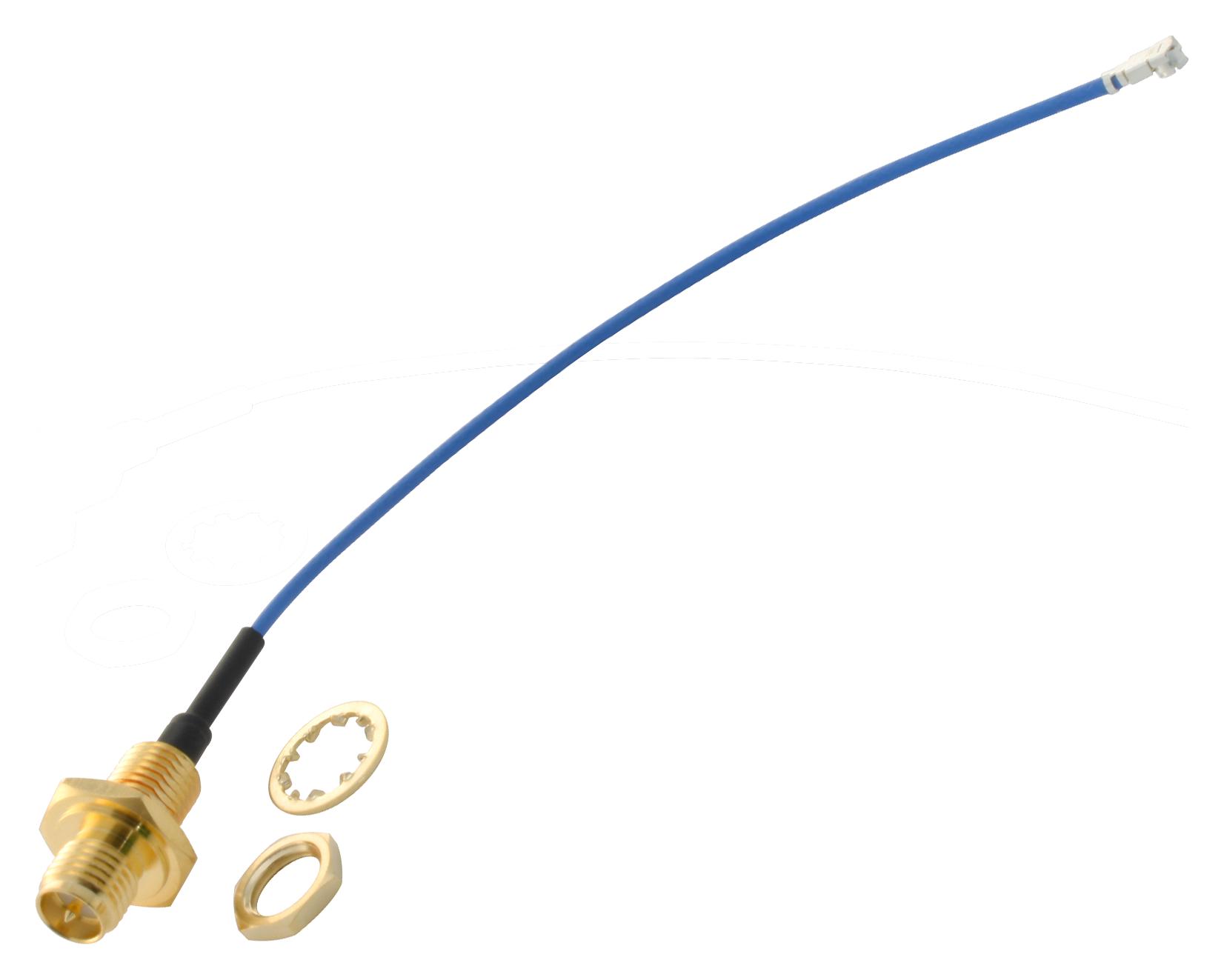

Buy the Buy Multicomp RPSMA Bulkhead Jack Part Number MC001501 Online
Secure your wireless setup with the versatile and durable IP67 RPSMA Bulkhead Jack. Perfect for outdoor antenna and RF applications, this high-quality connector offers excellent performance up to 6 GHz. Built with water and dust resistance, it ensures long-lasting, reliable connections in harsh environments. The assembly includes a crimp connector, halogen-free shell, contact, and heat shrink for protected, secure installation. Ideal for professional, industrial, or hobby projects seeking robust and waterproof RF connectivity solutions available for easy online purchase.
Order your Multicomp SeriesMC001501 waterproof RF connector today and ensure reliable indoor and outdoor connections for your wireless projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001501?
You can click on the BUY or RFQ button to purchase MC001501 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001501?
You can download the MC001501 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001501?
MULTICOMP PRO
