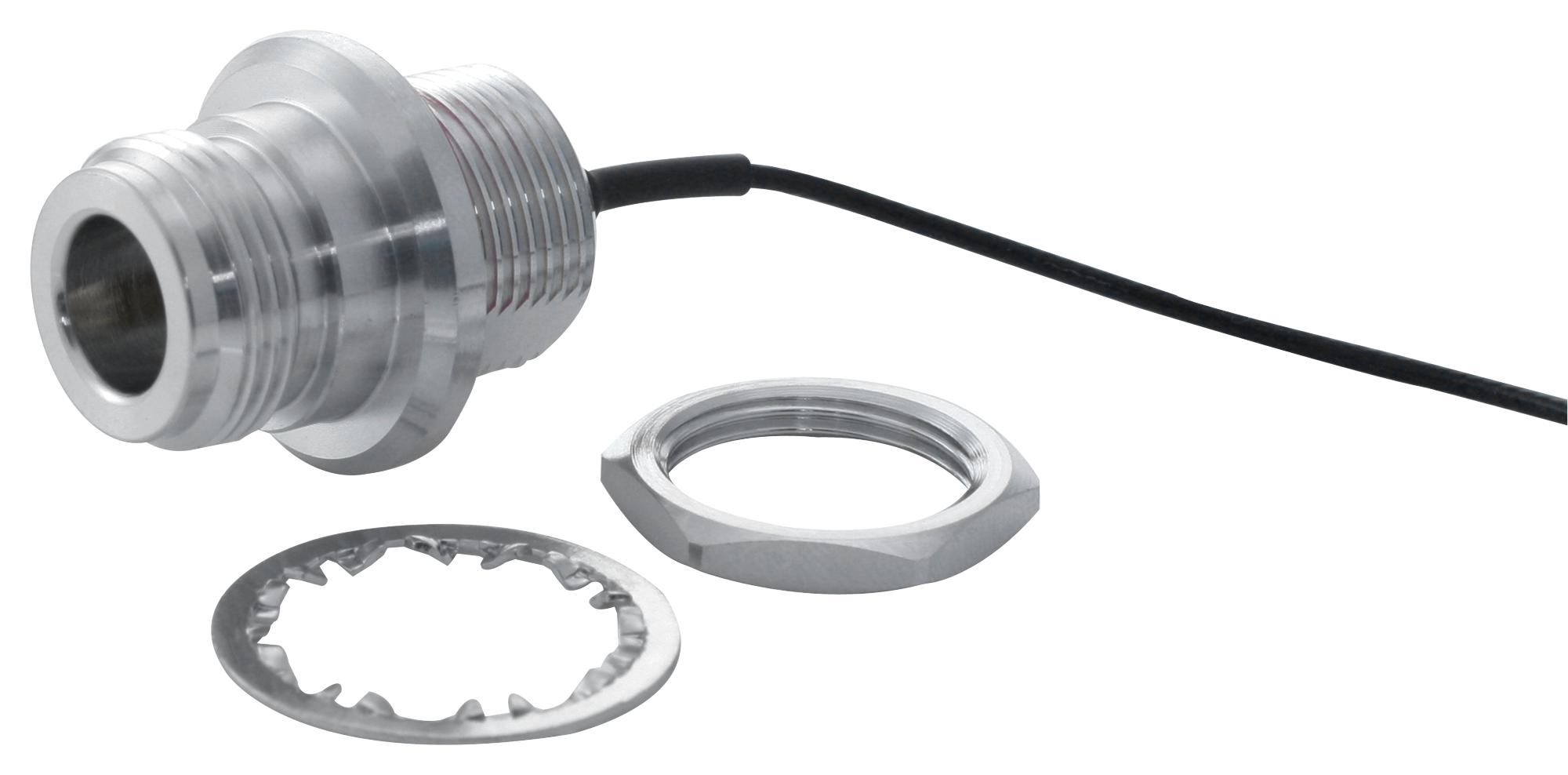

MULTICOMP-PRO MC001506 RF Connector
The Rear Lock IP67 N Type to SMA Plug is a high-quality, weather-resistant RF connector designed for reliable performance in demanding environments. It features an impedance of 2500 and a frequency range from DC to 6 GHz, making it suitable for various industrial, communication, and measurement applications. The connector supports a maximum working voltage of 335 Vrms and dielectric withstanding voltage of 750 Vrms. It is compatible with 1.37 mm diameter cables, secured with a rear lock mechanism, ensuring durability and stability in outdoor and harsh conditions.
MULTICOMP-PRO MC001506 RF Connector Specifications:
- Impedance: 2500
- Frequency Range: DC to 6 GHz
- Working Voltage: 335 Vrms Max.
- Dielectric Withstanding Voltage: 750 Vrms Max.
- Insulator Resistance: 5000 MO Min.
- Connector Type: N Type rear lock to SMA plug
- Cable Diameter: 1.37 mm
- Mounting Thread: 5/8-24 UNEF
- Environmental Rating: IP67 waterproof
- Insertion Loss: Max. -1.5 dB
- VSWR: 1.65:1 Max
- Dimensions: Millimetres, includes mounting hole specifications
- Heat Shrink Tube: F32, 2.5 mm, Length 15 mm, Black color
Buy the Multicomp Pro MC001506 – Reliable RF Connector for Industrial Applications
Purchase the Multicomp Pro RF Connector with IP67 rating and secure rear lock for 1.37 mm cables today. Designed for durability in outdoor and industrial environments, it provides a wide frequency range up to 6 GHz, excellent signal integrity with low insertion loss, and robust construction. Perfect for communication, measurement, and industrial applications requiring reliable connectivity. Enjoy easy installation with compatible mounting threads and weather-resistant features. Order now to ensure stable, high-performance connections in your projects.
Get Multicomp Pro MC001506 today—built for precision and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001506?
You can click on the BUY or RFQ button to purchase MC001506 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001506?
You can download the MC001506 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001506?
MULTICOMP-PRO
