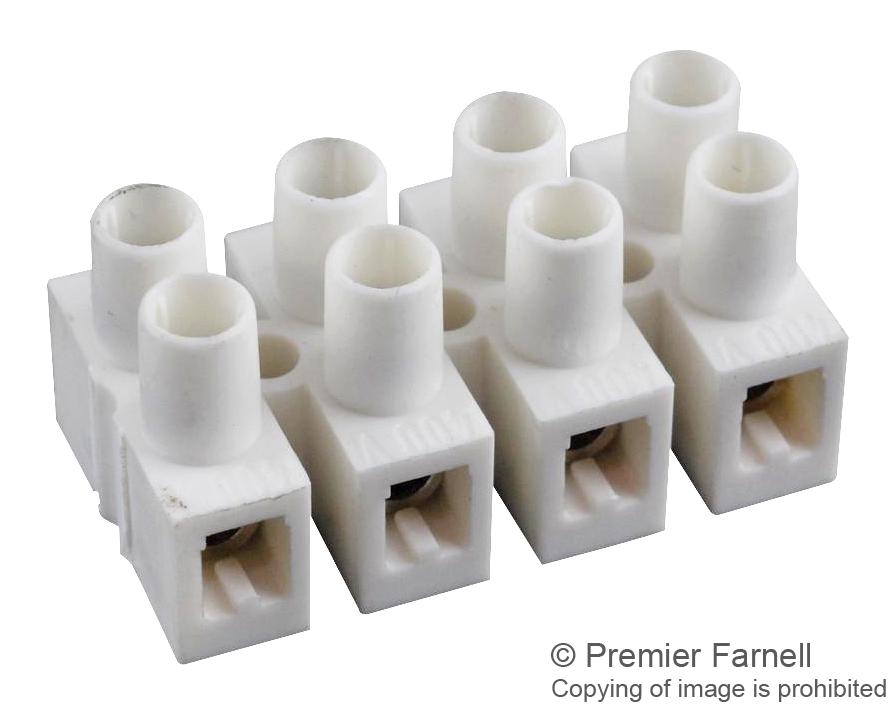

MULTICOMP PRO MC001821 Industrial Terminal Block
The MC001821 from Multicomp Pro is a dual-row, H-type terminal block with an 8.2 mm pitch and 8 poles. It features white insulating material made of PA66 (UL94-V2) and includes zinc-plated steel screws and nickel-plated brass cage clamps. Suitable for wire sizes from 12 AWG to 22 AWG, it has a current rating of 20A and a voltage rating of 600V. The terminal block requires a stripped wire length between 4.5 mm and 5.5 mm and can operate within a temperature range of -30°C to +85°C, with a maximum continuous working temperature of 105°C. It has an insulation withstand voltage of at least 2000 VAC and an insulation resistance exceeding 2000 MΩ at 500 VDC. This product is designed for industrial applications and rated with high customer satisfaction, offering a 12-month limited warranty.
MULTICOMP PRO MC001821 Industrial Terminal Block Specifications:
- Current Rating: 20A
- Voltage Rating: 600V
- Wire Range: 12 AWG to 22 AWG
- Stripped Length: 4.5mm to 5.5mm
- Operation Temperature: -30°C to +85°C
- Max Continuous Temperature: 105°C
- Insulation Withstands Voltage: 2000 VAC min
- Insulation Resistance: >2000 MΩ at 500 VDC
- Material: PA66 (UL94-V2)
- Screws: Steel Zinc Plate
- Cage Clamp: Brass Ni Plate
- Dimensions: Width 8.2mm, Length varies with model
- Certification: RoHS compliant
Buy the Multicomp 8 Pole Terminal Block – Reliable Industrial Connectors for Industrial Applications
Order the Multicomp 8 Pole Terminal Block online today to benefit from high-quality construction, reliable performance in industrial environments, and excellent electrical insulation. Designed for quick installation, it supports wire sizes from 12 to 22 AWG and withstands temperatures from -30°C to +85°C. Its high insulation resistance and voltage withstand capabilities make it ideal for industrial control panels, machinery, and automation systems. Purchase now for fast delivery and ensure dependable connections in demanding applications, backed by a 12-month warranty.
Buy Multicomp 8 Pole Terminal Block now and ensure reliable industrial connectivity with high current and voltage ratings.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001821?
You can click on the BUY or RFQ button to purchase MC001821 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001821?
You can download the MC001821 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001821?
MULTICOMP PRO
