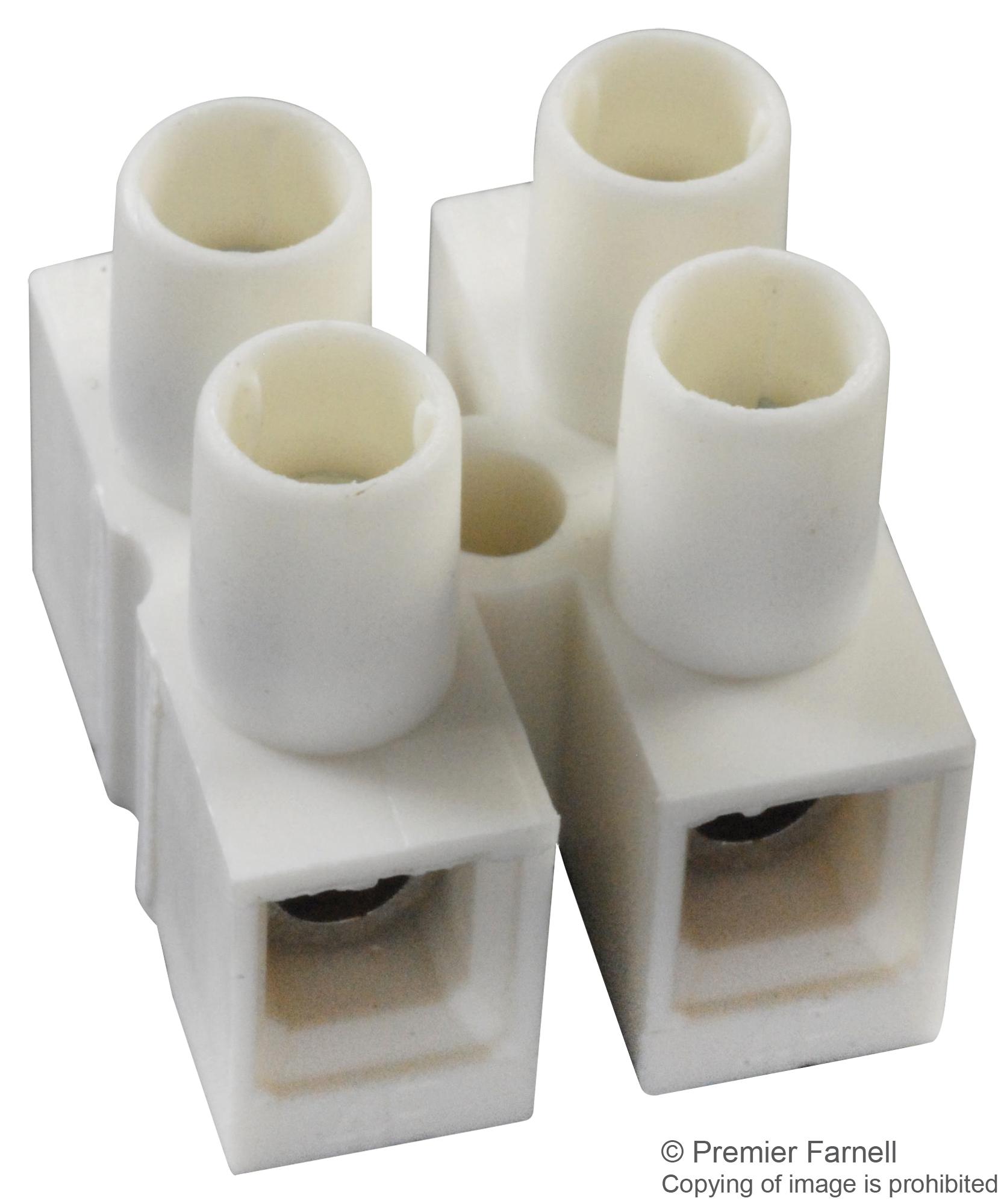

MULTICOMP-PRO MC001823 Dual-Row Terminal Block
The MC001823 from Multicomp Pro is an H-type dual-row terminal block with a 10mm pitch and four poles. Made with white PA66 (UL94-V0) insulation and zinc-plated steel screws, it supports wire sizes from 12AWG to 22AWG, with a 30A current rating and 600V voltage rating. Designed for industrial environments, it operates from -30°C to +105°C, can withstand AC 2000V, and maintains an insulation resistance over 2000MΩ at 500VDC. Easy to install, this reliable connector ensures secure wiring in various electrical applications.
MULTICOMP-PRO MC001823 Dual-Row Terminal Block Specifications:
- Current Rating: 30A
- Wire Range: 12AWG to 22AWG
- Voltage Rating: 600V
- Maximum Continuous Temperature: 105°C
- Operation Temperature: -30°C to +105°C
- Insulation Withstand Voltage: AC2000V min
- Insulation Resistance: >2,000MΩ at 500V
- Material: PA66 (UL94-V0) insulating body
- Screw Material: Steel, zinc-plated
- Poles: 4
- Pitch: 10mm
Buy the Buy Multicomp Terminal Blocks Part Number MC001823 Online
Enhance your electrical assembly with this high-quality dual-row terminal block. Designed for durability and ease of use, it supports wire sizes from 12AWG to 22AWG, rated for 30A and 600V. Its robust insulation withstands AC 2000V and maintains high resistance over time. Perfect for industrial wiring, panel connections, and control systems, this terminal block guarantees reliable electrical contact, easy installation, and long-term performance in demanding environments. Purchase online now for a dependable connection solution.
Order your Multicomp series MC001823 terminal block today and ensure reliable, secure wiring for your industrial and electrical projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001823?
You can click on the BUY or RFQ button to purchase MC001823 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001823?
You can download the MC001823 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001823?
MULTICOMP-PRO
