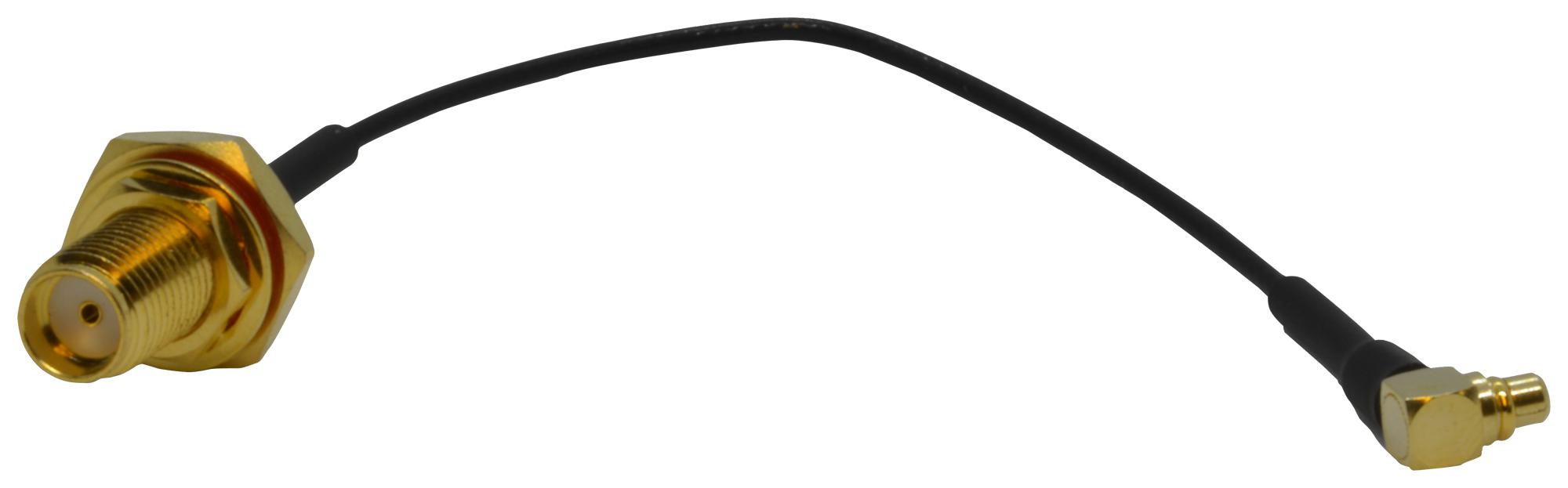

MULTICOMP-PRO MC001905 RF Coaxial Cable Assembly
This RF coaxial cable assembly features an IP67-rated SMA bulkhead jack and a right-angle MMCX plug designed for reliable high-frequency connections in industrial environments. The assembly includes a 100mm black cable with an impedance of 50 ohms, suitable for frequencies up to 6 GHz. It offers excellent electrical performance, with a VSWR of maximum 1.65:1 and insertion loss not exceeding -1.1 dB. The connectors support working voltages of 170 Vrms and dielectric withstand voltages of 500 Vrms, ensuring durability and high signal integrity.
MULTICOMP-PRO MC001905 RF Coaxial Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC to 6.0 GHz
- Working Voltage: 170 Vrms Max.
- Dielectric Withstanding Voltage: 500 Vrms Max.
- Insulator Resistance: 1000 MΩ Min.
- Connector Type: SMA Bulkhead Jack, MMCX Right Angle Plug
- Cable Diameter: 1.37mm
- Insertion Loss: -1.1 dB Max.
- VSWR: 1.65:1 Max.
- Material: Composite connectors with black insulated cable
- Length: 100mm
- RoHS Compliant
Buy the Multicomp 2779968 – Reliable RF Coaxial Cable Assembly for Industrial Applications
Purchase the high-performance RF coaxial cable assembly featuring an IP67-rated SMA bulkhead jack and MMCX right-angle plug, designed for industrial environments. This 100mm black cable offers excellent electrical performance with 50Ω impedance, frequency up to 6 GHz, and low insertion loss. Its durable construction supports a working voltage of 170 Vrms and dielectric resistance of 1000 MΩ. Perfect for high-frequency, reliable connections in challenging conditions, ensuring optimal signal integrity for your industrial and communications projects.
Get Multicomp 2779968 today—built for precision, durability, and high-frequency industrial use.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001905?
You can click on the BUY or RFQ button to purchase MC001905 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001905?
You can download the MC001905 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001905?
MULTICOMP-PRO
