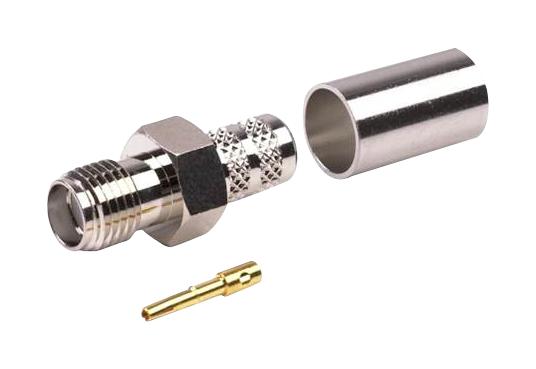

MULTICOMP PRO MC002058 RF SMA Female Connector
The SMA Female Crimp connector is designed for high-frequency applications from 0 to 12.4 GHz, featuring low insertion loss of just 0.03 dB x GHz and maximum VSWR of 1.3. Made with brass body, nickel finish, and a gold-plated BeCu contact, it offers a working voltage of 500 Vrms at sea level, insulation resistance of at least 5k MΩ, and a temperature range from -65°C to +165°C. Suitable for RG-8/X, Belden 9258, and similar cables, it ensures reliable performance in RF systems.
MULTICOMP PRO MC002058 RF SMA Female Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-12.4 GHz
- Insertion Loss: 0.03 x GHz
- VSWR: Max 1.3
- Working Voltage: 500 Vrms at sea level
- Insulation Resistance: ≥ 5k MΩ
- Temperature Range: -65°C to +165°C
- Material Body: Brass with nickel finish
- Contact Material: BeCu gold-plated
- Insulator Material: PTFE
- Ferrule Material: Silicone with nickel plating
- Cable Compatibility: RG-8/X, Belden 9258, Maxrad M8X-100 & 1000, Micro 8/U, Memee 1600, Saxton 8315 & LMR-240
Buy the Multicomp Series SMA Female Crimp Connector: MC002058
Enhance your RF systems with the high-quality SMA Female Crimp connector, offering excellent frequency performance up to 12.4 GHz, low insertion loss, and durable construction. Designed for cables like RG-8/X and Belden 9258, this connector features a brass body with nickel finish, and a gold-plated BeCu contact for reliable connections. Its wide temperature range and high insulation resistance make it ideal for demanding applications. Purchase online today to benefit from fast delivery and secure, trusted performance for your microwave and radio frequency projects.
Order your Multicomp Series SMA Female Crimp Connector MC002058 today and ensure reliable high-frequency RF connections for your projects.
