MULTICOMP-PRO MC002076 Barrier Terminal Block

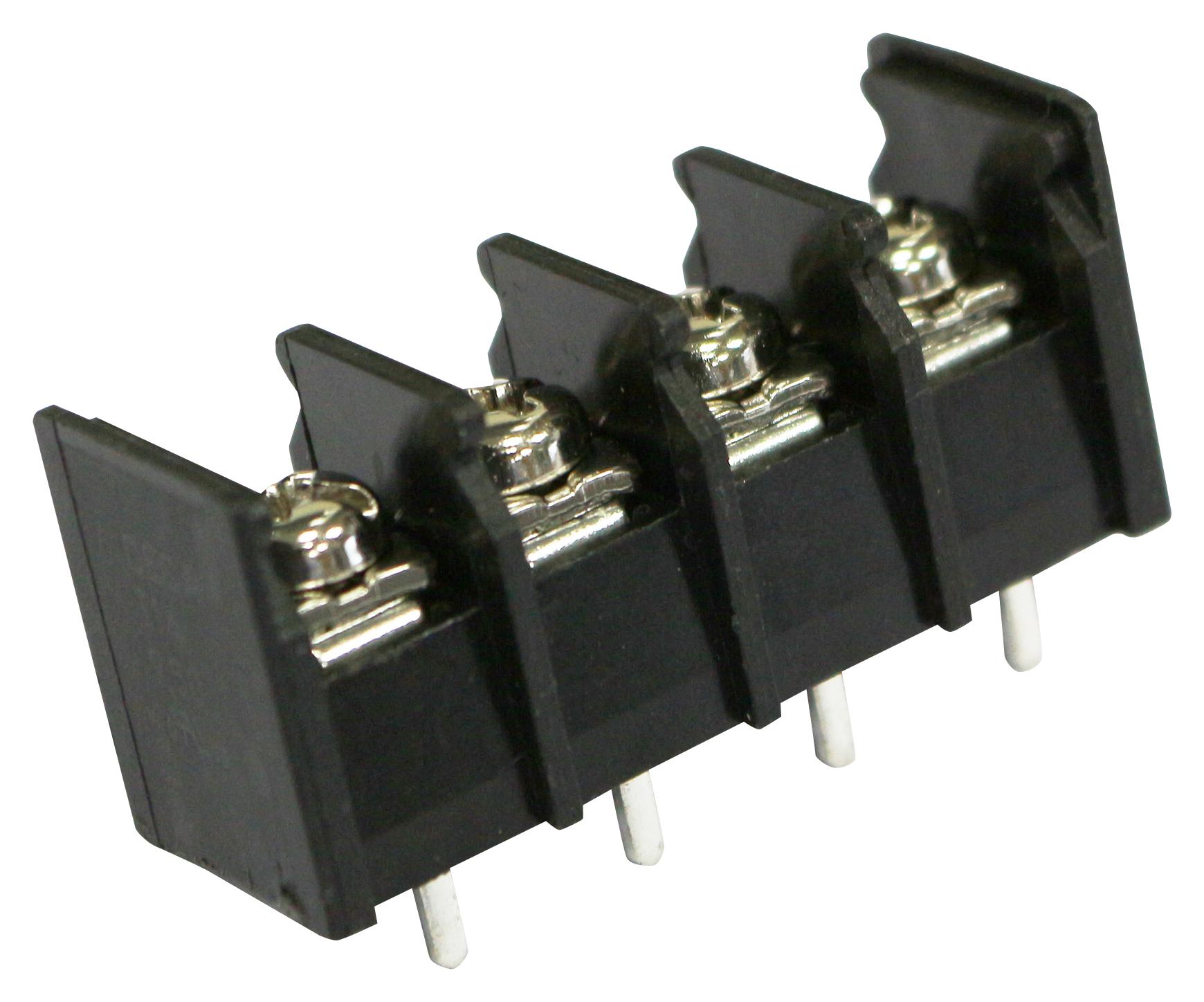

This barrier terminal block from Multicomp Pro features a 9.5mm pitch, 20A current rating, and a voltage withstand capacity of AC300V. Made with durable PBT insulating bodies and fully plated brass terminals, it supports wire ranges from 12AWG to 22AWG and operates within a temperature range of -40°C to +120°C. The terminal block includes a cover, with various pole configurations, ensuring secure electrical connections for industrial and electronic applications. Its RoHS compliance ensures environmentally friendly manufacturing and safe disposal.
MULTICOMP-PRO MC002076 Barrier Terminal Block Specifications:
- Current Rating: 20 Amp AC300V
- Insulation withstands Voltage: AC2000V min.
- Insulation Resistance: >2000MQ DC 500V
- Operation Temperature: -40°C to +120°C
- Wire Range: 12AWG to 22AWG
- Screw Torque: 12lb-inch
- Material: Insulating body PBT UL94V-0, Brass terminal Tin plated, Steel screw Ni plated, PC cover
- Dimensions: Pitch 9.5mm, Poles 2 to 9, varies in length from 22mm to 88.5mm depending on pole count
Buy the Buy multicomp Pro Barrier Terminal Block Part Number MC002076 Online
Purchase the multicomp Pro barrier terminal block MC002076 online today to benefit from superior build quality, 20A current capacity, and easy installation. Ideal for industrial electronics, this 9.5mm pitch terminal block supports wire ranges from 12AWG to 22AWG and withstands voltages up to AC300V, making it a versatile choice. With a robust cover and multiple pole options, it guarantees secure connections and compliance with RoHS standards. Enhance your electrical assemblies with this reliable, high-performance terminal block—order now for fast delivery and trusted quality!
Buy multicomp Pro MC002076 now and ensure reliable and secure electrical connectivity for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002076?
You can click on the BUY or RFQ button to purchase MC002076 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002076?
You can download the MC002076 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002076?
MULTICOMP-PRO
