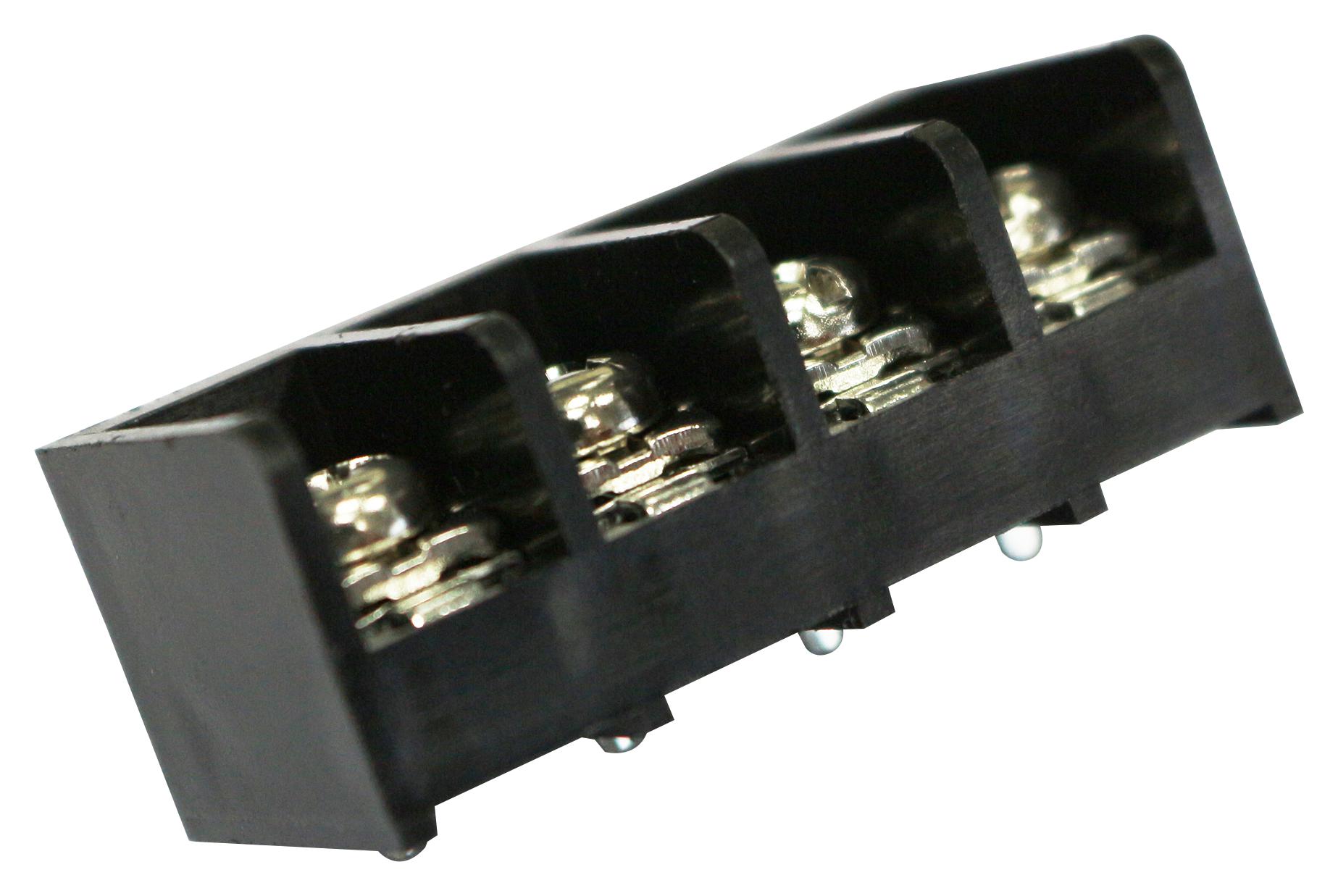

MULTICOMP PRO MC002095 Barrier Terminal Block
Barrier terminal blocks are essential electrical components designed for secure wire connections in various industrial and electronic applications. This product features a 9.5mm pitch, supports a current rating of 15A at 300V AC, and withstands insulation voltages of at least 2000V AC. Constructed with a PBT insulating body (UL94V-0), brass tin-plated terminals, and steel Ni-plated screws, the terminal block is durable and reliable. Suitable for PCB mounting, these terminal blocks support wire ranges from 14AWG to 22AWG and operate within -40°C to +120°C temperature ranges, ensuring performance across diverse conditions.
MULTICOMP PRO MC002095 Barrier Terminal Block Specifications:
- Current Rating: 15 Amp AC300V
- Insulation withstands Volt: AC2000V min.
- Insulation Resistance: >2000MQ DC 500V
- Operation Temperature: -40°C to +120°C
- Wire Range: 14AWG to 22AWG
- Screw Torque: 12 lb-inch
- Pitch: 9.5mm
- Poles: 2, 3, 5, 7, 9 (depending on model)
- Insulating Body: PBT (UL94V-0) - Black
- Terminal Material: Brass Tin Plated
- Screw Material: Steel Ni Plated
- Cover Material: Polycarbonate
- Dimensions vary per model (e.g., for 2 poles: A 21.7mm, B 20.2mm, C 9.5mm)
Buy the Multicomp Series Terminal Blocks: Barrier Terminal Block 9.5mm 15A 300V MC002095
Order the Multicomp barrier terminal block online today and enjoy quick delivery, reliable performance, and secure connections for your electrical projects. This 9.5mm pitch terminal block supports up to 15A at 300V, with insulation resistance exceeding 2000MQ. Its robust construction with UL94V-0 rated PBT, brass, and steel ensures durability across various temperatures from -40°C to +120°C. Suitable for wire sizes from 14AWG to 22AWG, these terminal blocks offer quick installation, excellent safety, and long-term reliability in industrial and electronic assemblies. Make your purchase now to benefit from these high-quality, cost-effective connection solutions.
Buy Multicomp barrier terminal block 9.5mm 15A 300V MC002095 now and experience secure, reliable electrical wiring solutions with easy installation and durable construction.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002095?
You can click on the BUY or RFQ button to purchase MC002095 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002095?
You can download the MC002095 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002095?
MULTICOMP PRO
