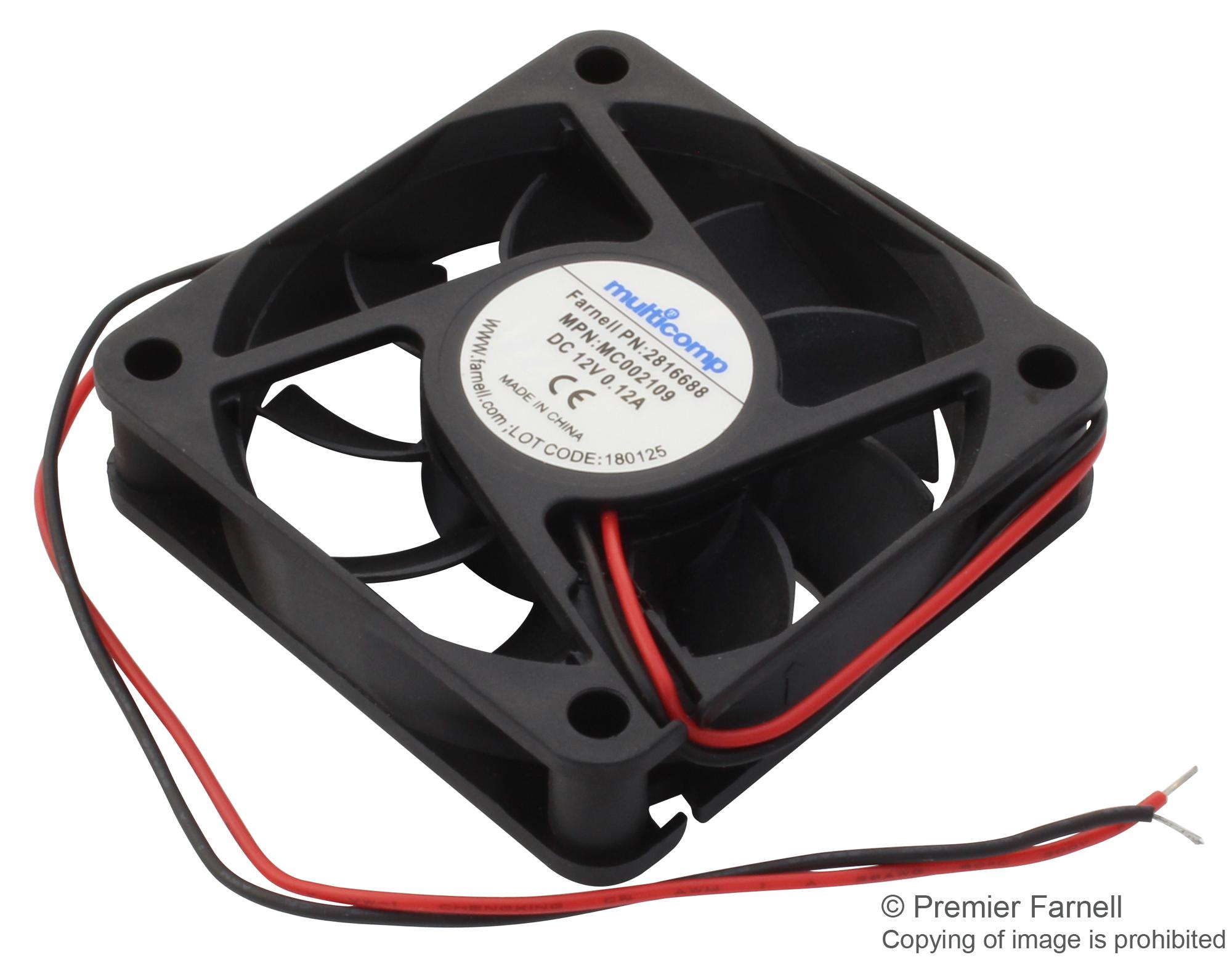

MULTICOMP PRO MC002109 Cooling Fan
This high-performance axial fan features a brushless DC motor, hydro bearing for durability, and operates quietly at 20dB, making it ideal for cooling electronic components. It supports a wide voltage range from 10.2V to 13.8V, delivers up to 18.84 CFM airflow, and withstands temperatures from -10°C to +70°C. Designed for reliable continuous operation with a rated current of 0.12A, it includes UL-listed UL1007 26AWG lead wires. Its compact dimensions of approximately 60mm x 50mm make it suitable for various industrial cooling applications, ensuring efficient airflow and low noise.
MULTICOMP PRO MC002109 Cooling Fan Specifications:
- Rated Voltage: 12V DC
- Rated Current: 0.12A +0.02A
- Startup Voltage: 7V
- Rated Power: 21.44W
- Operating Voltage Range: 10.2V to 13.8V
- Speed: 3800 RPM
- Housing Material: PBT UL94V-0 (lack)
- Blade Material: PBT UL94V-0 (lack)
- Bearing: Hydro Bearing
- Lead Wires: UL1007 26AWG, Length = 150mm
- Dimensions: Approximately 60mm x 50mm
- Temperature Range: -10°C to +70°C
- Storage Temperature: -40°C to +80°C
- Maximum Air Flow: 18.84 CFM
- Maximum Air Pressure: 2.12mm H20
- Noise Level: 20dB or less at 1m distance
- Insulation Resistance: Min 10MΩ at DC 250V
- Dielectric Withstand Voltage: 500V AC
- Vibration Resistance: 5-3Hz, 0.04mm, 2g peak
- Shock Resistance: 60g for 11ms
- Durability: 35,000 hours expected lifetime
- Environmental Conditions: 5°C to 35°C ambient, 85-145% RH
Buy the Multicomp Series Cooling Fan: MC002109
Enhance your electronic cooling solutions with our reliable 12V DC axial fan featuring hydro bearing technology. Designed for continuous performance, it offers high airflow of up to 18.84 CFM, operates quietly at 20dB, and withstands harsh environments with a temperature range from -10°C to +70°C. The compact size of approximately 60x50mm makes it suitable for various industrial applications. Easy to install with UL-listed lead wires, this durable fan guarantees efficient cooling, extended lifespan, and low noise for your equipment. Order now to improve your device performance today.
Order your Multicomp SeriesMC002109 cooling fan today and ensure reliable, quiet electronic cooling with low noise and long-lasting hydro bearing technology.
