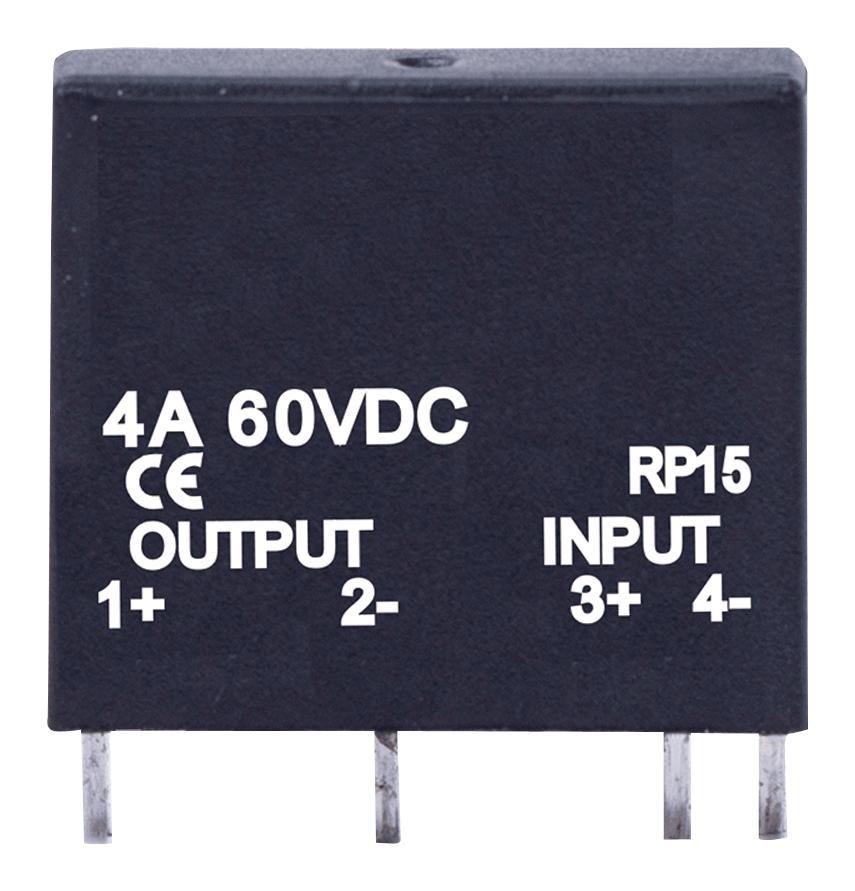

MULTICOMP-PRO MC002241 Solid State Relay
This PCB mount solid state relay with DC output is designed for reliable switching in industrial applications. It features high EMC immunity, high inrush current capability, opto-isolation, and a dielectric strength of 22500VAC rms. Suitable for controlling DC motors, power supplies, and electromagnetic devices, it supports control voltages of 5V DC or 12V DC, with load voltages from 3V to 60V DC and load currents up to 4A. Compact and robust, it ensures efficient operation in demanding environments and easy integration into digital systems.
MULTICOMP-PRO MC002241 Solid State Relay Specifications:
- Control Voltage: 5V DC, 12V DC with range 4-6V DC and 9.6-14.4V DC respectively
- Load Voltage Range: 3-60V DC
- Load Current Range: 0.02A to 4A, maximum surge current of 20A at 10ms
- Maximum On-state Voltage: 0.5V
- Maximum Off-state Leakage: 0.4mA
- Dielectric Strength: 22500VAC rms
- Insulated Resistance: 1000MQ at 500VDC
- Ambient Operating Temperature: -30°C to +80°C
- Weight: 3g
- Dimensions: T footprint, millimetres: 2.54 x 0.54
Buy the Multicomp Series SS Relay 4A DC Control: MC002241
Order the Multicomp Pro solid state relay online for seamless integration into your industrial systems. Designed for high current DC loads up to 4A and voltage range of 3-60V DC, it features high EMC immunity and opto-isolation for safe operation. Compact and easy to install with a T footprint, this relay is perfect for controlling DC motors, power supplies, and electromagnetic devices. Ensure reliable, efficient switching in demanding environments—buy online now and enhance your automation projects with proven quality.
Get Multicomp Pro MC002242 today—built for high current DC switching and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002241?
You can click on the BUY or RFQ button to purchase MC002241 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002241?
You can download the MC002241 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002241?
MULTICOMP-PRO
