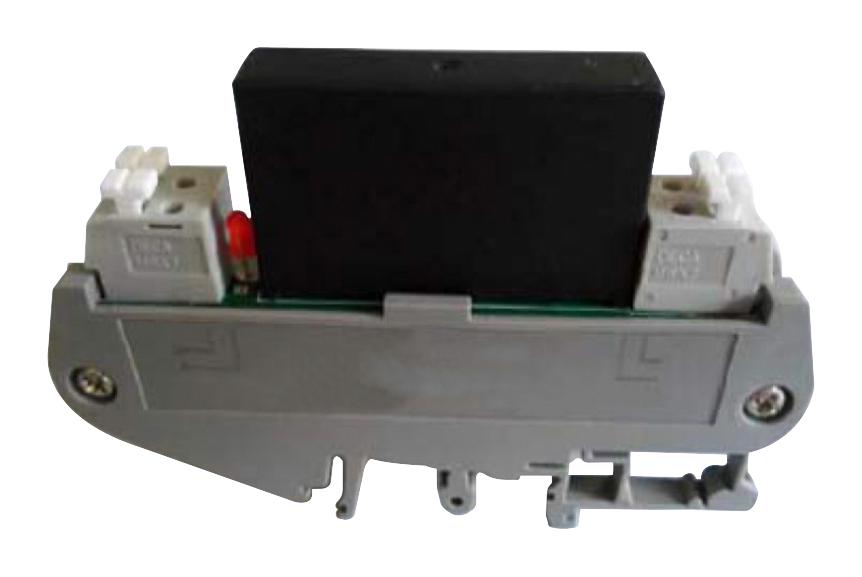

MULTICOMP-PRO MC002264 Solid State Relay Module
This single-channel DIN rail mount solid state relay module is designed for AC load switching with high dielectric strength of 4000VAC. It supports load currents from 0.1A to 5A and control voltages between 4V DC and 32V DC, making it ideal for automation systems, control panels, elevators, and entertainment equipment. The module features zero-cross or random turn-on capabilities, LED indicators, and robust insulation resistance of 1000MQ, coupled with a compact weight of 55g and reliable thermal performance within an ambient temperature range of -30°C to +80°C.
MULTICOMP-PRO MC002264 Solid State Relay Module Specifications:
- Load Current: 0.1A to 5A
- Control Voltage Range: 4-15V DC, 15-32V DC, 4-32V DC
- Must Turn-On Voltage: 4V DC to 15V DC
- Must Turn-Off Voltage: 1V DC
- Maximum Input Current: 25mA
- Load Voltage Range: 240V AC, 24-280V AC
- Transient Overvoltage: 600Vpk
- Maximum Surge Current: 160A
- Maximum On-State Voltage Drop: 1.5Vrms
- Maximum Off-State Leakage Current: 5mA
- Dielectric Strength Input/Output: 4000Vrms
- Insulation Resistance Input/Output: 1000MQ
- Ambient Operating Temperature Range: -30°C to +80°C
- Weight: 55g
Buy the Buy Multicomp SeriesMC002264 Part Number MC002264 Online
Enhance your automation and control system with this reliable DIN rail mount solid state relay module, supporting AC loads up to 5A and control voltages from 4V to 32V DC. Featuring zero-cross and random turn-on functionalities, LED indicators, and a dielectric strength of 4000VAC, it ensures safe and efficient switching. Compact and lightweight at only 55g, it is suitable for industrial automation, elevator control, and entertainment equipment, providing high performance and durability in a compact design.
Order your Multicomp SeriesMC002264 high-performance DIN rail solid state relay today and enhance your automation projects with reliable AC switching capabilities.
