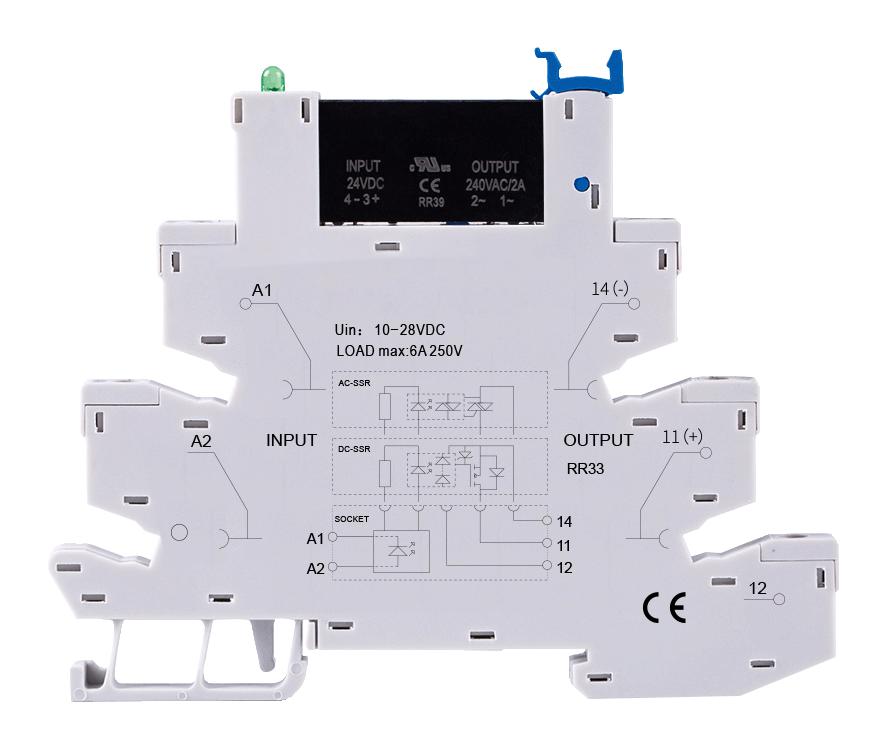

MULTICOMP-PRO MC002273 Solid State Relay
This DIN rail mount solid state relay provides reliable single-phase AC output switching up to 240V AC at 2A, designed for high-density PLC control applications. Compatible with TTL and CMOS drive signals, it features optoelectronic isolation with a dielectric strength of 2500V ACrms. The relay operates within a temperature range of -30°C to +80°C and includes built-in protections like maximum surge current of 80A and low leakage current of 1.5mA. Its compact size and standard footprint make it ideal for automation systems requiring robust, space-efficient relay solutions.
MULTICOMP-PRO MC002273 Solid State Relay Specifications:
- Control Voltage: 5V DC (4-6V DC), 24V DC (19.2-28.8V DC)
- Output Voltage Range: 24-280V AC
- Output Current: 0.1-2A
- Maximum Transient Voltage: 600Vpk
- Maximum Surge Current: 80A @ 10ms
- Maximum On-State Voltage Drop: 1.5Vrms
- Maximum Turn-on/off Time: 10ms
- Dielectric Strength (Input/Output): 2500Vrms
- Insulation Resistance: 1000MQ (@500V DC)
- Ambient Operating Temperature: -30°C to +80°C
- Dimensions: 96.5 x 22 x 40.5 mm
- Weight: 30g
- RoHS Compliance: Yes
Buy the Multicomp Reliable 240V AC Solid State Relay for Industrial Applications
Enhance your automation setup with this reliable DIN rail mount solid state relay designed for single-phase AC switching up to 240V at 2A. Perfect for high-density PLC control systems, it features optoelectronic isolation, wide voltage compatibility, and robust protection features. Its compact footprint allows easy installation in confined spaces, making it ideal for industrial automation and control panels. Invest now to ensure dependable system performance and seamless operational control in your industrial projects.
Order your multicomp series MC002273 DIN rail mount solid state relay today and enhance your automation projects with dependable and compact switching solutions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002273?
You can click on the BUY or RFQ button to purchase MC002273 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002273?
You can download the MC002273 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002273?
MULTICOMP-PRO
