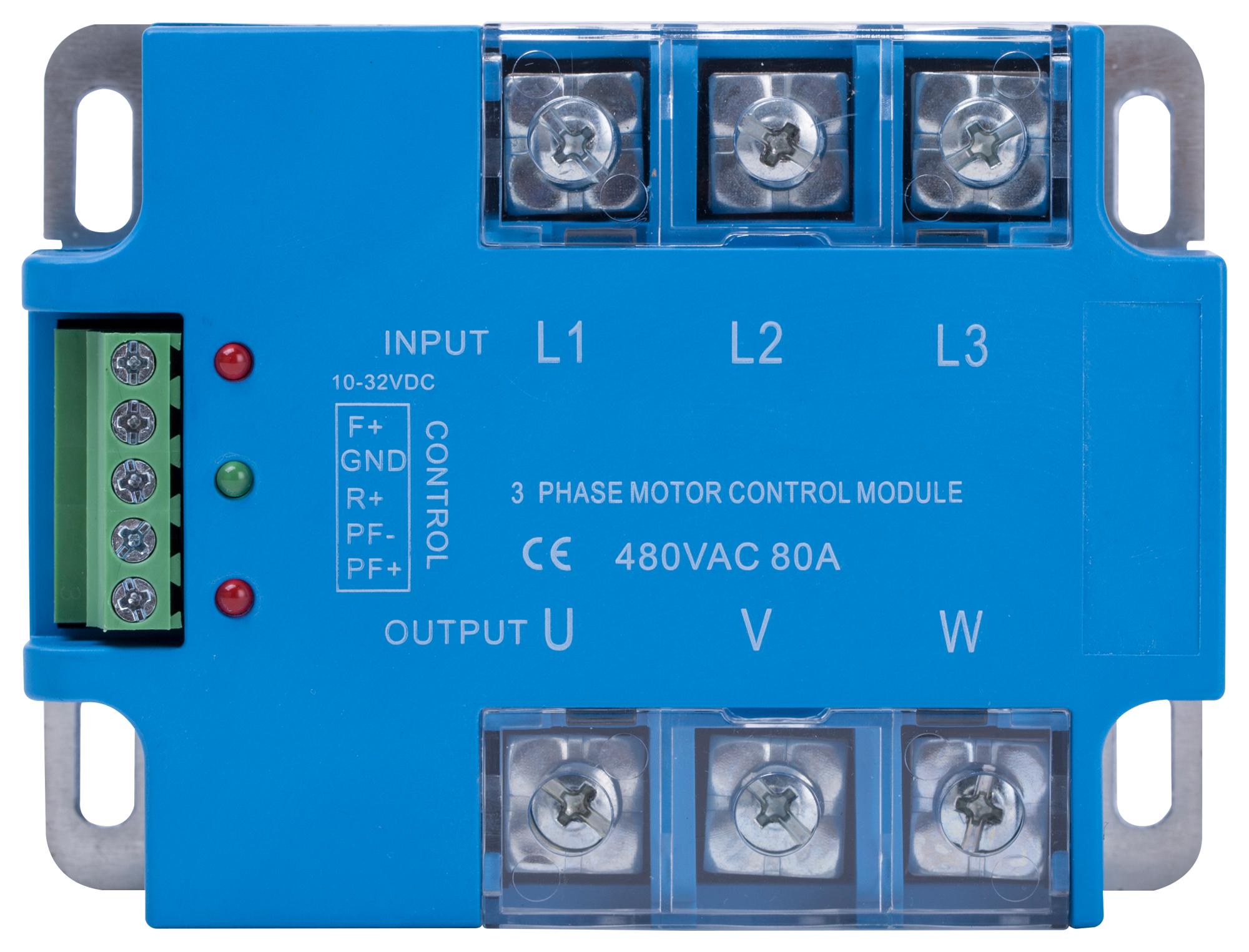

MULTICOMP PRO MC002294 Three-phase Motor Reversing Module
The Multicomp Pro three-phase motor reversing module is a robust control device equipped with SCR output for handling heavy industrial loads. It offers control input voltage from 10 to 32V DC, and supports load voltages from 24 to 530V AC. Designed for motor control applications, it features automatic phase correction and phase-loss protection functions, with internal RC protection circuitry and high EMC compliance. The module is suitable for reversing motor directions, enabling reliable and safe operation in demanding industrial environments. Its compact design allows easy installation and dependable performance in automation systems.
MULTICOMP PRO MC002294 Three-phase Motor Reversing Module Specifications:
- Control Voltage Range: 10 ~ 32V DC
- Minimum Turn-On Voltage: 10V DC
- Minimum Turn-Off Voltage: 4V DC
- Maximum Input Current: 25mA
- Load Voltage Range: 24 ~ 530V AC
- Maximum Transient Overvoltage: 1200V pk
- Minimum Load Current: 100mA
- Maximum Turn-Off Time: 20ms
- Maximum Surge Current: 25A to 600A
- Maximum Off-State Leakage: 5mA
- Maximum On-State Voltage Drop: 1.7Vrms
- Dielectric Strength Input-Output: >4000Vrms
- Ambient Operating Temperature: -30°C to +80°C
- Weight: 338g
- Dimensions: Typical size not specified
- Features include internal RC protection, high EMC design, automatic phase correction, phase-loss protection, and RoHS compliance.
Buy the Buy Multicomp Pro Three-phase Motor Reversing Module Part Number MC002294 Online
Purchase the Multicomp Pro three-phase motor reversing module MC002294 online to ensure dependable motor direction control in industrial settings. This module supports load voltages from 24 to 530V AC and control voltages between 10 and 32V DC. It features SCR output for heavy loads, internal RC protection circuitry, and automatic phase correction, making it ideal for automation systems requiring precise, safe motor reversing capabilities. Easy to install, RoHS compliant, and designed for high EMC performance, order now for optimal industrial motor management.
Order your Multicomp Pro MC002294 three-phase motor reversing module today and enhance your industrial motor control with reliable, protected switching.
