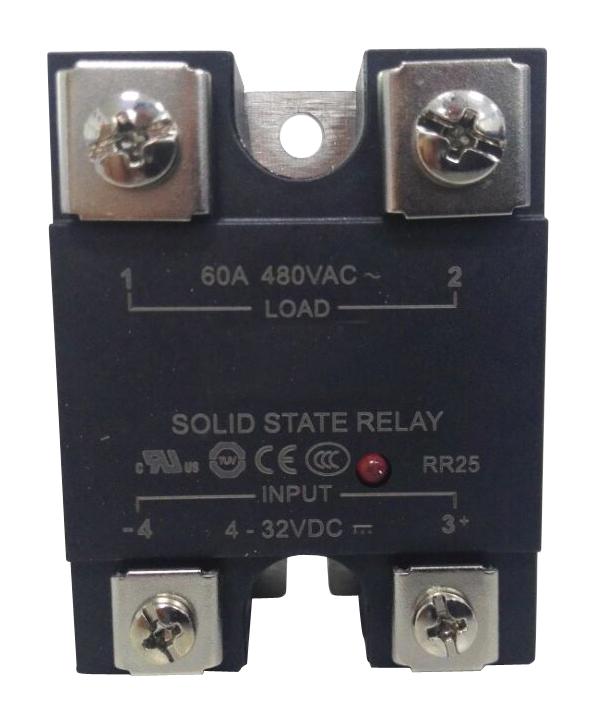

MULTICOMP-PRO MC002307 Solid State Relay
These panel mount solid state relays are single-phase, capable of handling AC loads from 48V to 660V with load currents ranging from 10A to 125A. They use TRIAC or SCR output for resistive, inductive, or capacitive loads and feature zero crossing or random-on switching modes. With control voltages from 4-32V DC and 90-280V AC, they are suitable for industrial applications such as HVAC, food processing, and automation. They include LED indicators, high dielectric strength, and optional built-in MOV or TVS protections, ensuring reliable operation in demanding environments.
MULTICOMP-PRO MC002307 Solid State Relay Specifications:
- Load Current: 10A to 125A @ 48V to 660V AC
- Control Voltage: 4-32V DC, 90-280V AC
- Load Voltage Range: 240V AC, 480V AC, 600V AC
- Switching Mode: Zero Crossing or Random-on
- Dielectric Strength: 24,000V AC rms
- Maximum Off-state Leakage Current: 5mA at Rated Voltage
- Maximum Turn-on Time: 10ms (Zero-Crossing DC input), 40ms (AC input)
- Maximum Turn-off Time: 40ms
- Surge Current: Up to 1250A @ 10ms
- IP Rating: Options for high profile or IP20 cover
- Operating Temperature: -30°C to +80°C
- Weight: 96g standard, 180g high profile
Buy the Multicomp Series Solid State Relay: MC002307
Purchase the Multicomp Pro Solid State Relay MC002307 online today to enjoy fast delivery and trusted quality. Designed for robust industrial applications, this relay supports load currents up to 10A and voltages up to 240V AC, ensuring seamless operation in environments requiring high reliability. Its zero crossing control mode reduces electrical noise, making it suitable for HVAC, machinery, and automation systems. With a 12-month limited warranty and excellent customer ratings, this relay is your ideal choice for efficient electrical switching in demanding industrial settings.
Buy Multicomp Pro MC002307 now and experience unmatched reliability and high current switching performance for industrial automation.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002307?
You can click on the BUY or RFQ button to purchase MC002307 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002307?
You can download the MC002307 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002307?
MULTICOMP-PRO
