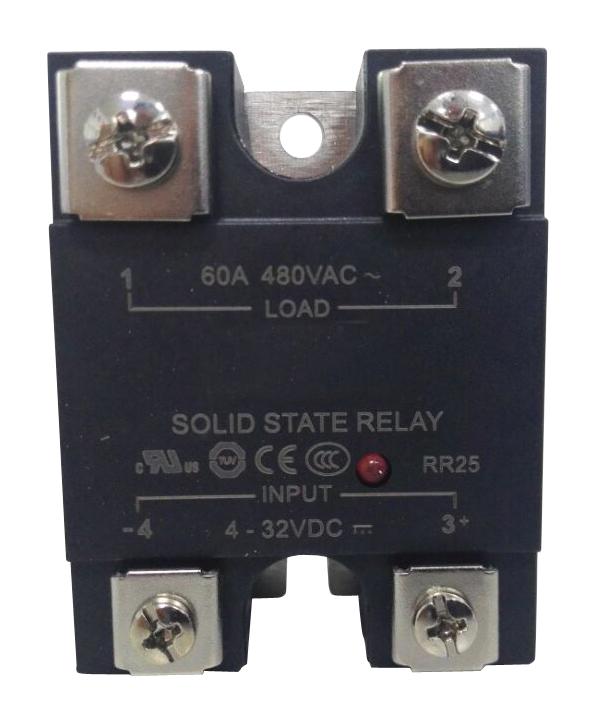

MULTICOMP PRO MC002327 Solid State Relay
This panel mount solid state relay is designed for reliable single-phase AC switching with a load voltage range of 240V to 600V AC and load currents from 10A up to 125A. It uses TRIAC or SCR output with options for zero crossing or random-on switching, suitable for resistive, inductive, or capacitive loads. The relay features dielectric strength of 24,000V, an LED indicator, and optional built-in MOV or TVS protection. It is widely used in industrial automation, HVAC systems, food processing, and machinery control for dependable performance.
MULTICOMP PRO MC002327 Solid State Relay Specifications:
- Control Voltage Range: 4-32V DC or 90-280V AC
- Load Voltage Range: 240V AC to 600V AC, depending on model
- Load Current: 10A to 125A
- Dielectric Strength: 24,000V ACrms
- Surge Current (@10ms): Up to 1250A
- Maximum Off-state Leakage: 5mA at rated voltage
- Operating Temperature: -30°C to +80°C
- Storage Temperature: -30°C to +100°C
- Control Input/Output Isolation: 2,500Vrms
- Dimensions: varies by model, typical mounting options available
- Weight: Approximately 96g to 180g depending on version
- RoHS Compliant: Yes
Buy the Buy Multicomp Pro Solid State Relay Part Number MC002327 Online
Purchase the Multicomp Pro solid state relay online today for dependable performance in industrial automation and machinery control. Designed with robust features like wide voltage and current ratings, optional built-in MOV or TVS for surge protection, and dielectric strength of 24,000V, this relay ensures optimal switching for resistive, inductive, or capacitive loads. Suitable for HVAC, food processing, and automation systems, it offers zero crossing or random-on switching modes, providing flexibility and reliability in demanding environments. Order now for fast delivery and comprehensive support.
Get Multicomp Pro 600V AC solid state relay today—built for precise switching and long-lasting durability.
