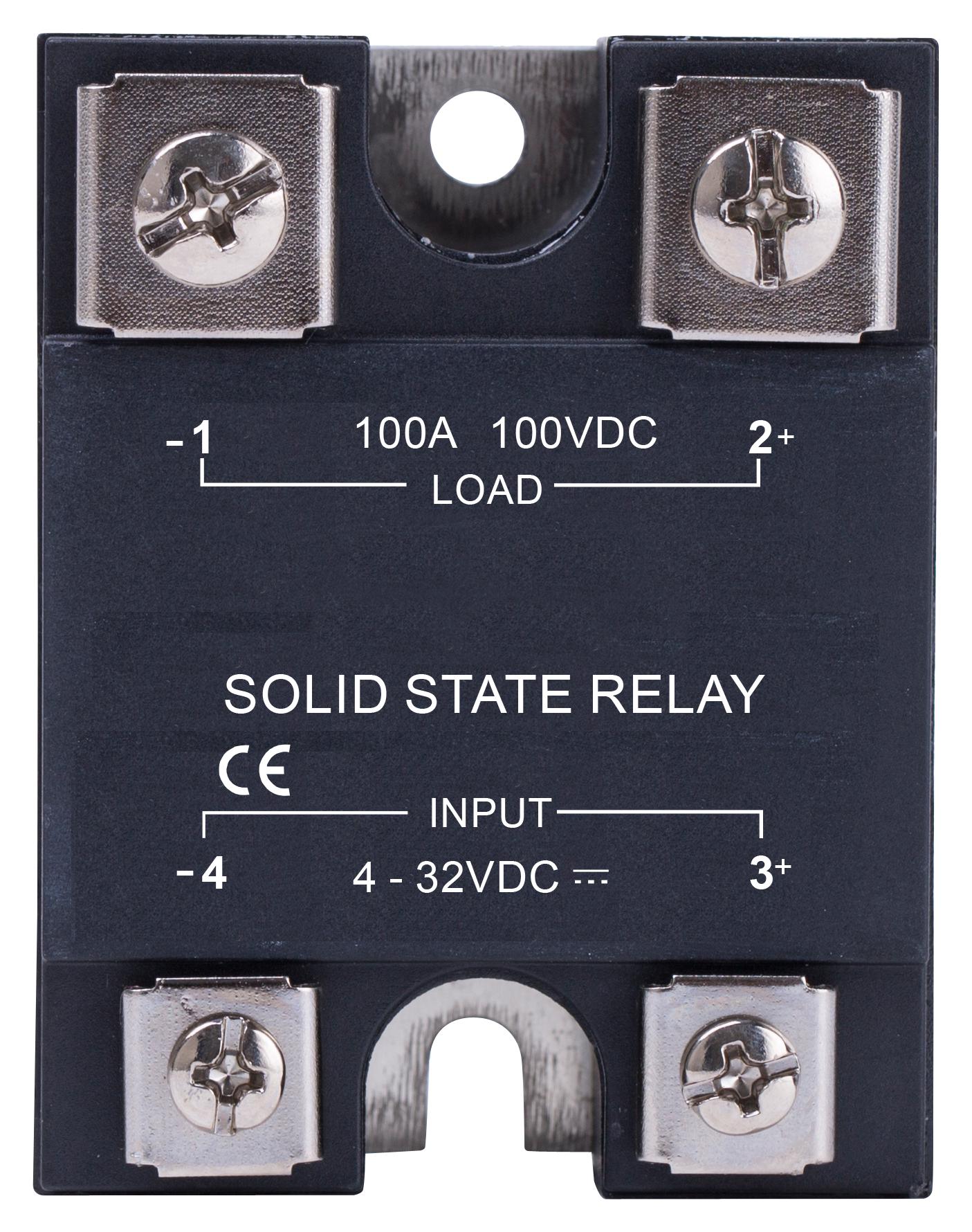

MULTICOMP PRO MC002358 Solid State Relay
This panel mount solid state relay supports high current loads up to 100A and features a voltage range of 4-32V DC control input. Designed for seamless switching in applications such as DC heating, solar energy systems, medical equipment, and motor control, it offers zero crossing operation, enhanced dielectric strength of 22500V, and robust isolation. With specifications including an max load current of 100A, voltage ratings up to 1200V DC, and a compact weight of 95g, it ensures reliable performance and durability for industrial and automation needs.
MULTICOMP PRO MC002358 Solid State Relay Specifications:
- Control Voltage Range: 4-32V DC
- Minimum Turn-on Voltage: 4V DC
- Minimum Turn-off Voltage: 1V DC
- Maximum Input Current: 28mA @ 32V DC
- Maximum Reverse Voltage: 32V DC
- Output Voltage Range: 50V DC to 1200V DC
- Load Current Range: 7A to 100A
- Maximum Surge Current: 250A @ 10ms
- Maximum Turn-on Time: 100us
- Maximum Turn-off Time: 100us
- Dielectric Strength: 22500V AC rms
- Ambient Operating Temperature: -30°C to +80°C
- Weight: 95g
- Leakage Current: 0.1mA to 0.5mA depending on voltage
- On-state Resistance: 6.5mΩ to 30mΩ
- Isolation: >2500Vrms between input and output
- Dimensions: Compact panel mount design, specific measurements not specified
Buy the Multicomp Series Solid State Relay: MC002358
Order the Multicomp Pro MC002358 solid state relay online today and experience reliable DC switching with high current capacity of 100A, perfect for automation, medical equipment, and solar energy systems. Its zero crossing technology ensures efficient operation, while the robust dielectric strength and compact design enable seamless integration into your projects. With a proven track record and high customer ratings, this relay offers the dependable performance you need for demanding industrial applications. Don't miss out—purchase online now and ensure your system's optimal performance and safety.
Get Multicomp Pro MC002358 today—built for high current switching and long-lasting durability in industrial controls.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002358?
You can click on the BUY or RFQ button to purchase MC002358 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002358?
You can download the MC002358 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002358?
MULTICOMP PRO
