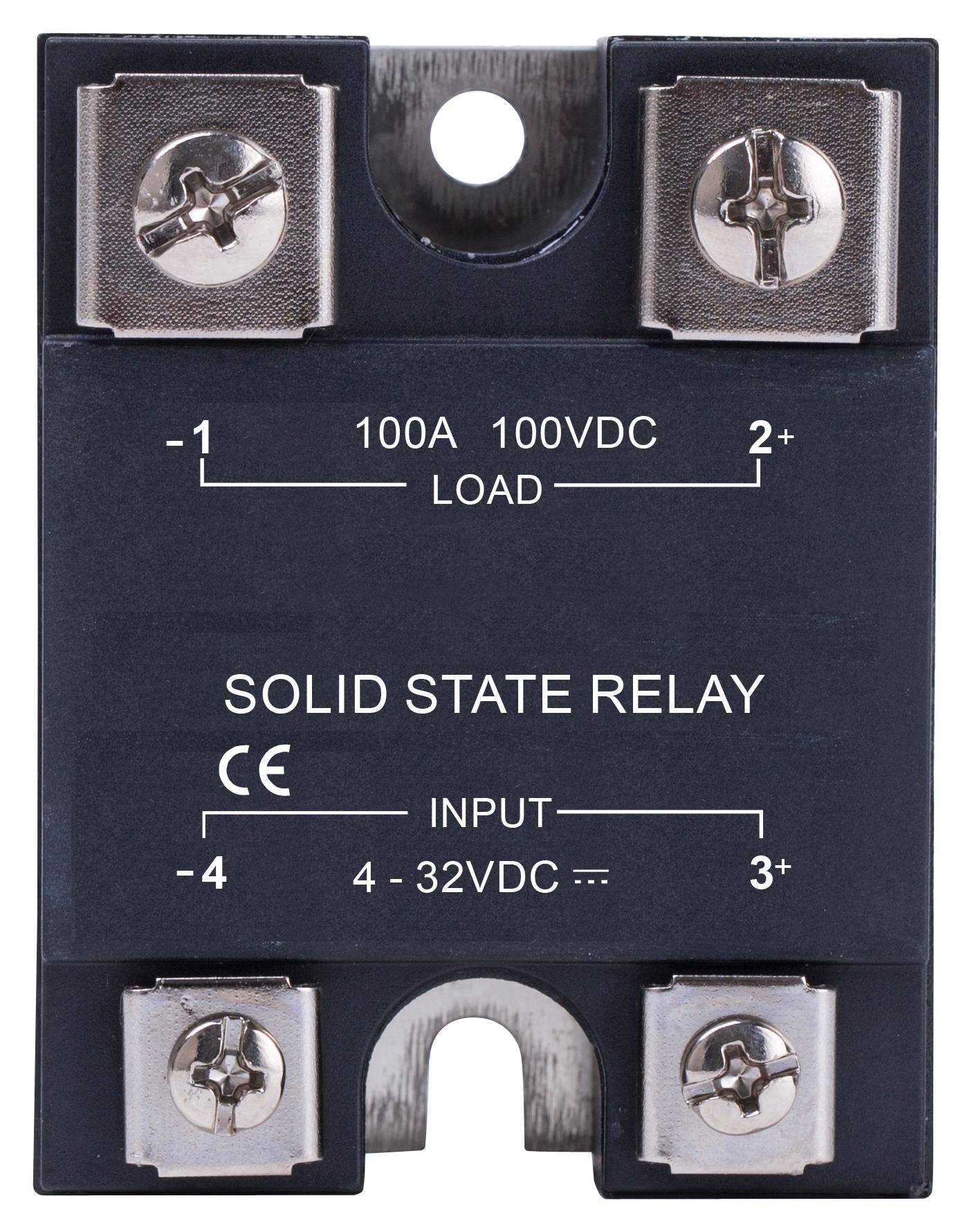

MULTICOMP-PRO MC002361 DC Power Relay
The panel mount solid state relay is designed for single-phase DC output applications, offering high current capabilities up to 100A and voltage ratings up to 1200V DC. It features zero crossing switching, fast turn-on and turn-off times, and dielectric strength of 2500Vrms for input/output isolation. Suitable for controlling DC heating, motors, solenoids, and solar energy systems, it incorporates MOSFET and IGBT outputs, LED indicators, and optional heat sinks. With a compact design, it ensures efficient, reliable switching for industrial power control needs in diverse environments.
MULTICOMP-PRO MC002361 DC Power Relay Specifications:
- Control Voltage Range: 4-32V DC
- Minimum Turn-on Voltage: 4V DC
- Minimum Turn-off Voltage: 1V DC
- Maximum Input Current: 28mA @ 32V DC
- Output Voltage Range: 50V DC to 1200V DC
- Load Current Range: 7A to 100A
- Maximum Surge Current: 250A at 10ms
- Dielectric Strength: 2500Vrms
- Ambient Operating Temperature: -30°C to +80°C
- Weight: 95g
- Maximum On-State Resistance: 6.5mΩ to 30mΩ depending on load
- Maximum On-State Voltage Drop: 1.75V at rated current
- Maximum Off-State Leakage Current: 0.1mA to 0.5mA depending on voltage
- Isolation: >2500Vrms
- Features: Zero crossing, fast switching, LED indicator, protected against inductive loads with fly-wheel diode
- RoHS Compliant
Buy the Multicomp Pro MC002361 – Reliable DC Power Switch for Industrial Applications
Get your Multicomp Pro MC002361 DC power relay online today. Designed for high-current industrial automation, this reliable relay features zero crossing switching, fast response times, and an extensive voltage range up to 1200V DC. Perfect for controlling DC motors, heating elements, and solar energy systems, it offers efficient switching, robust dielectric strength, and compact installation. Ensure your power management solutions are safe and reliable with this high-performance relay, available for quick purchase directly online to meet all your industrial needs.
Order your Multicomp Pro MC002361 panel mount solid state relay today and ensure dependable control for your high-current DC projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002361?
You can click on the BUY or RFQ button to purchase MC002361 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002361?
You can download the MC002361 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002361?
MULTICOMP-PRO
