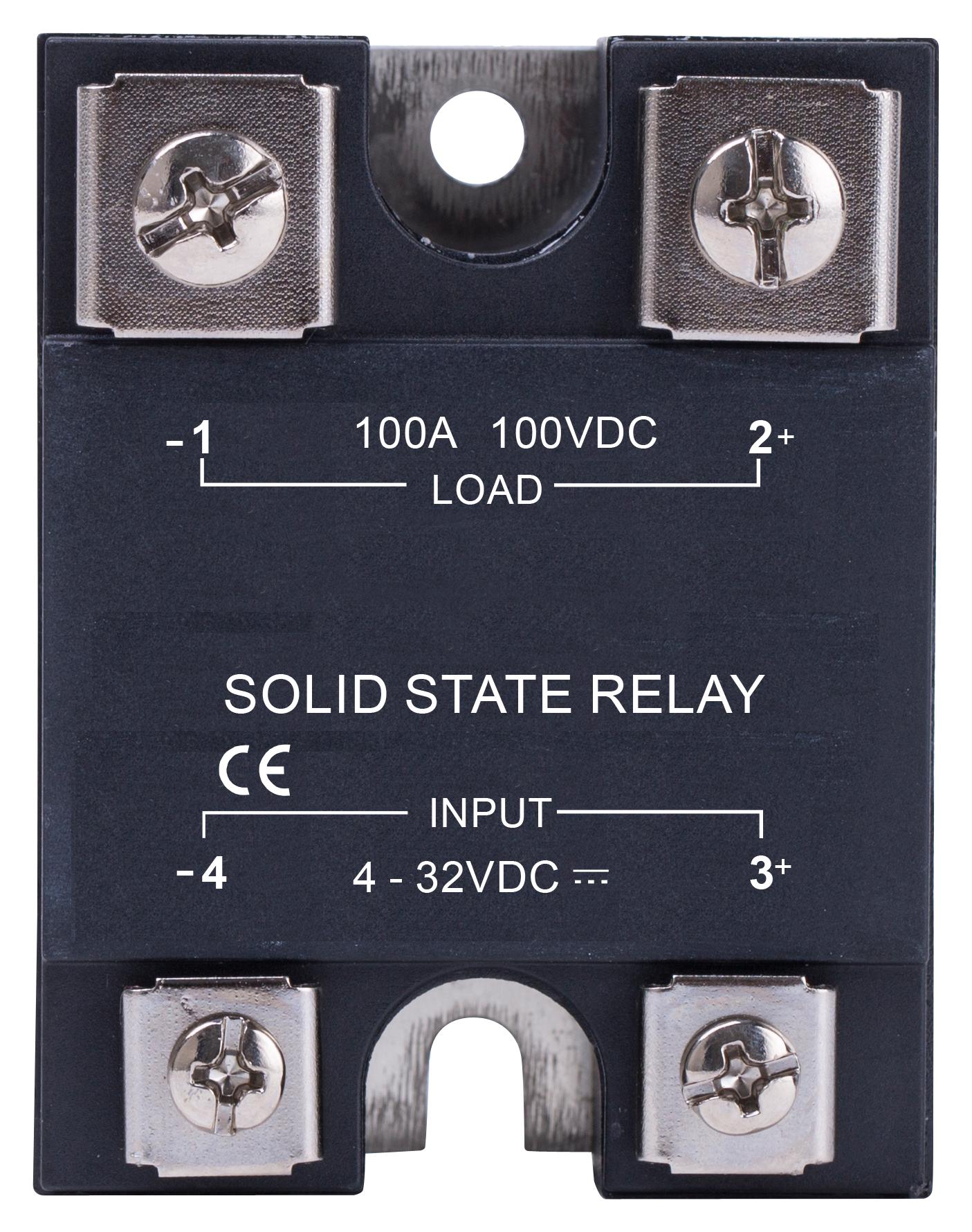

MULTICOMP PRO MC002366 Solid State Relay
This panel mount solid state relay provides reliable DC switching for industrial applications, featuring MOSFET and IGBT outputs, low impedance, and a control input range of 4-32VDC. Suitable for DC heating, motors, solar energy, and medical equipment, it offers dielectric strength of 22500V AC rms and includes opto-isolation and LED indicators for ease of use. The relay supports load currents up to 25A and line voltages up to 1200V DC, ensuring high performance and durability in demanding environments.
MULTICOMP PRO MC002366 Solid State Relay Specifications:
- Control Voltage Range: 4-32V DC
- Minimum Turn-on Voltage: 4V DC
- Minimum Turn-off Voltage: 1V DC
- Maximum Input Current: 28mA @ 32V DC
- Output Voltage Range: 50V DC / 60V DC / 100V DC / 200V DC / 400V DC / 1200V DC
- Load Current Range: 7A to 100A depending on model
- Maximum Surge Current: 250A for 10ms
- Maximum Turn-on Time: 100-200us
- Maximum Turn-off Time: 100-410us
- Maximum Off-State Leakage Current: 0.1mA to 0.5mA
- Maximum On-state Resistance: 6.5mΩ to 30mΩ depending on model
- Maximum On-State Voltage Drop: 1.75V at rated current
- Dielectric Strength: 2500Vrms between input/output
- Ambient Operating Temperature: -30°C to +80°C
- Weight: 95g
Buy the MultiComp Series Solid State Relay: MC002366
Purchase the MultiComp Series Solid State Relay MC002366 online now to ensure dependable DC switching performance for industrial, solar, and medical equipment. Designed with MOSFET and IGBT outputs, it offers low impedance and high dielectric strength, supporting load currents up to 25A and line voltages up to 1200V DC. Easy to install with opto-isolation and LED indicators, this relay guarantees durability and precision in demanding environments. Perfect for your automation and power control needs, buy now for fast delivery.
Get MultiComp MC002366 today—built for high-current DC switching with reliability and efficiency.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002366?
You can click on the BUY or RFQ button to purchase MC002366 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002366?
You can download the MC002366 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002366?
MULTICOMP PRO
