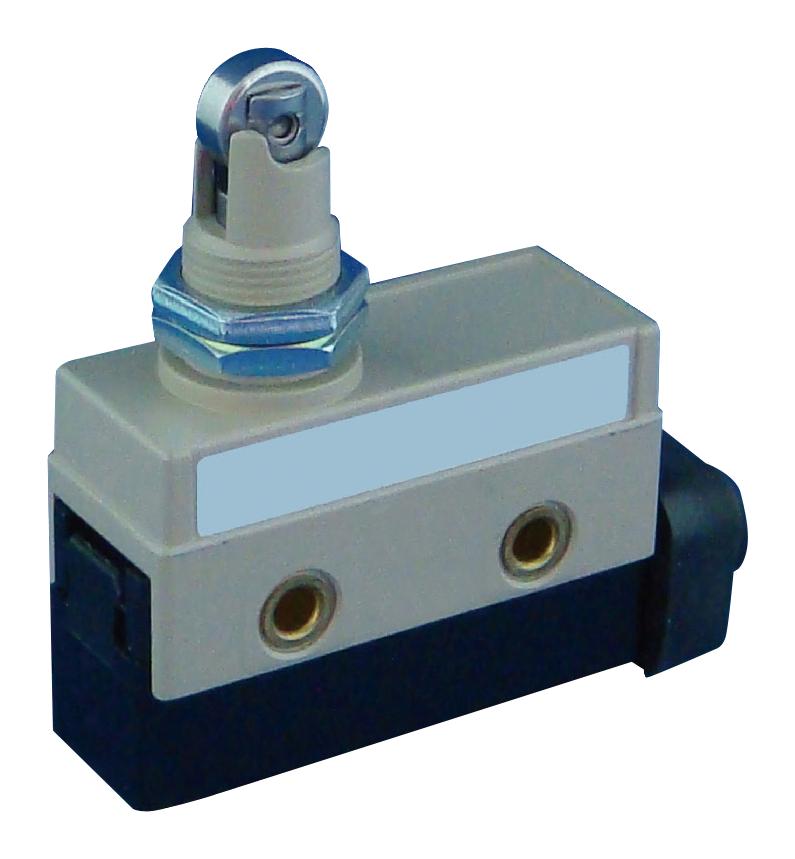

MULTICOMP PRO MC002400 Industrial Switch
Compact enclosures with high-precision, durable switches designed for industrial applications. They feature IP67 protection, UL, CUL, CE approvals, and operate reliably up to 10 million mechanical cycles. These switches support an operating speed of 0.05mm/s to 0.5m/s, with excellent insulation resistance of 100MQ and dielectric strength of 2000V AC, making them suitable for harsh environments. Available with various actuation methods including plungers, rollers, and hinges, they ensure precise operation and long service life in industrial automation systems.
MULTICOMP PRO MC002400 Industrial Switch Specifications:
- Protection Degree: IP67
- Rated Voltage: 250V AC / 10A; 250V AC / 15A
- Dielectric Strength: 2000V AC for 1 minute
- Insulation Resistance: 100MQ minimum at 500V DC
- Contact Resistance: 15mΩ maximum
- Material: Metal parts, plastic housing
- Operating Speed: 0.05mm/s to 0.5m/s
- Mechanical Life: 10,000,000 operations minimum
- Electrical Life: 500,000 operations minimum
- Operating Temperature: -10°C to +80°C
- Vibration Resistance: Malfunction at 1.5mm double amplitude, destruction up to 1000m/s²
- Shock Resistance: Up to 300m/s²
- Humidity Range: 35% to 95% RH
- Dimensions vary by model, typically compact and suitable for panel mounting
- Pollution Degree: 3
Buy the Multicomp Series Compact Switch IP67: MC002400
Order the Multicomp Series Compact Switch MC002400 online today and benefit from reliable industrial-grade performance. This IP67-rated switch offers a long mechanical life of 10 million operations, high insulation resistance, and excellent dielectric strength. Its variety of actuation options like plunger, roller, and hinge, combined with UL, CE approvals, ensure compatibility with various applications. Designed for harsh environments, it guarantees durability and precise control, making it the ideal choice for automation, machinery, and safety systems worldwide.
Buy Multicomp Series Compact Switch MC002400 now and experience unmatched reliability, long cycle life, and robust performance in demanding environments.
