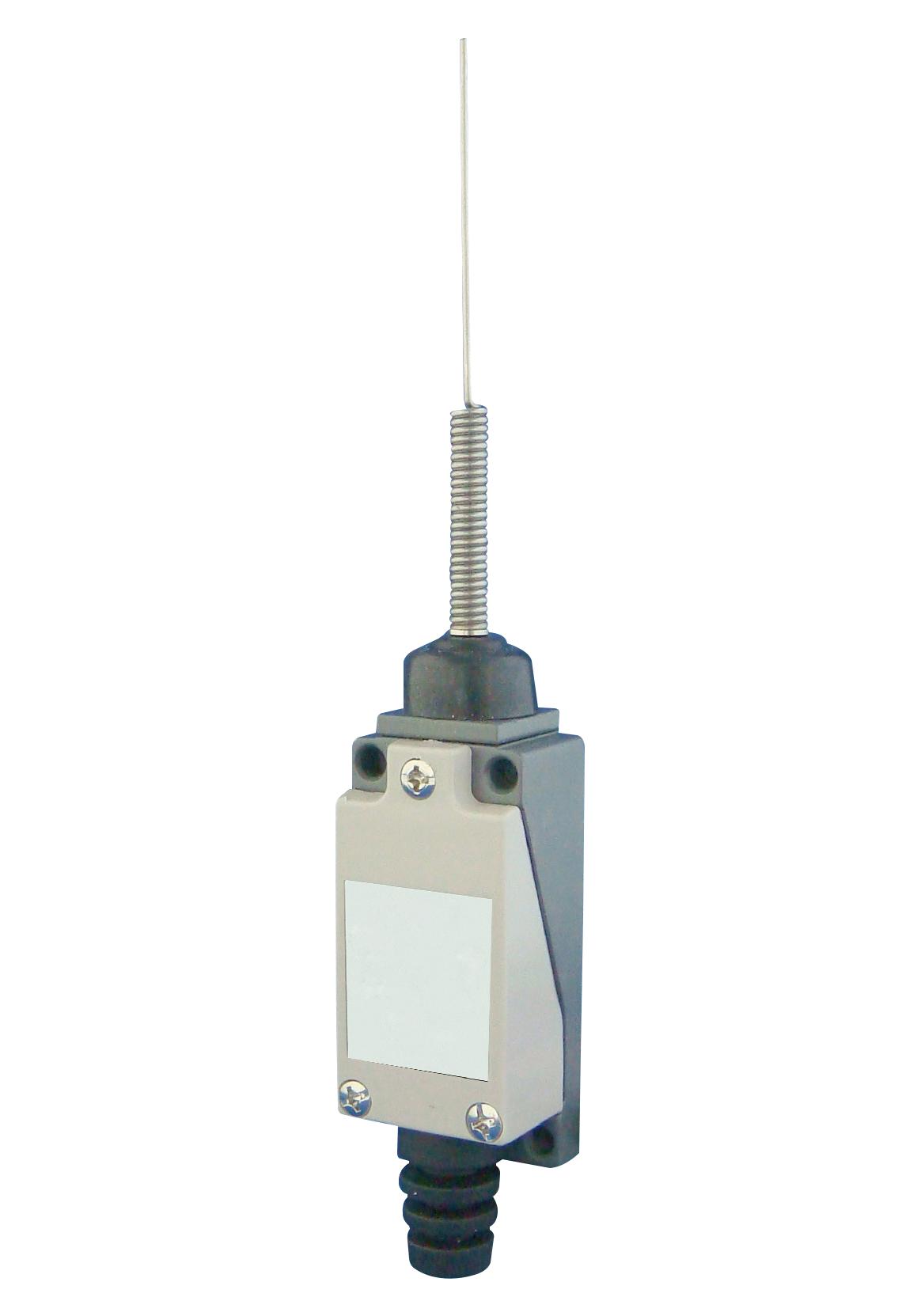

MULTICOMP PRO MC002428 Limit Switch
Miniature enclosed limit switch with IP65 protection, designed for reliable operation in industrial environments. Features sealed plunger options, high durability with mechanical and electrical endurance, and an array of lever types including roller, crossroller, and adjustable versions. Suitable for applications requiring precise limit detection with multi-application options supporting various operating forces, travel distances, and mounting configurations. Complies with IEC 60947-6-1 and UL508 standards, rated for up to 250V AC / 15A, ensuring safety and performance. Ideal for automation and control systems needing compact, sealed limit switches.
MULTICOMP PRO MC002428 Limit Switch Specifications:
- Degree of Protection: IP65
- Operating Voltage: 250V AC / 15A, 125V DC / 0.4A
- Rated Insulation Voltage: 250V
- Durability: Mechanical 10,000,000 operations, Electrical 300,000 operations
- Operating Speed: 5mm ~ 0.5m/s
- Operating Temperature Range: -20°C to +60°C
- Vibration Resistance: 10~55 Hz, 1.5mm double amplitude
- Shock Resistance: 1,000m/s² min.
- Contact Resistance: 25mΩ max.
- Insulation Resistance: 100MQ min. at 500V DC
- Dielectric Strength: 1,500V AC between current-carrying parts and ground
- Pollution Degree: 3
- Weight Range: 112.5g to 158.8g depending on model
- Push and roller plungers, adjustable levers available
- Rated Frequency: 50/60Hz
- Ambient Humidity: Up to 90% RH
Buy the Multicomp Pro Series Limit Switch: MC002428
Experience the reliability of the Multicomp Pro Limit Switch MC002428, featuring IP65 sealing, robust mechanical and electrical durability, and versatile actuator options. Perfect for automated systems requiring precise limit detection in demanding environments. With a compact design, high resistance to shock and vibration, and compliance with IEC 60947-6-1 and UL standards, this switch ensures safe, efficient operation. Order online now to benefit from fast delivery and excellent performance for your industrial control applications.
Get Multicomp Pro MC002428 today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002428?
You can click on the BUY or RFQ button to purchase MC002428 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002428?
You can download the MC002428 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002428?
MULTICOMP PRO
