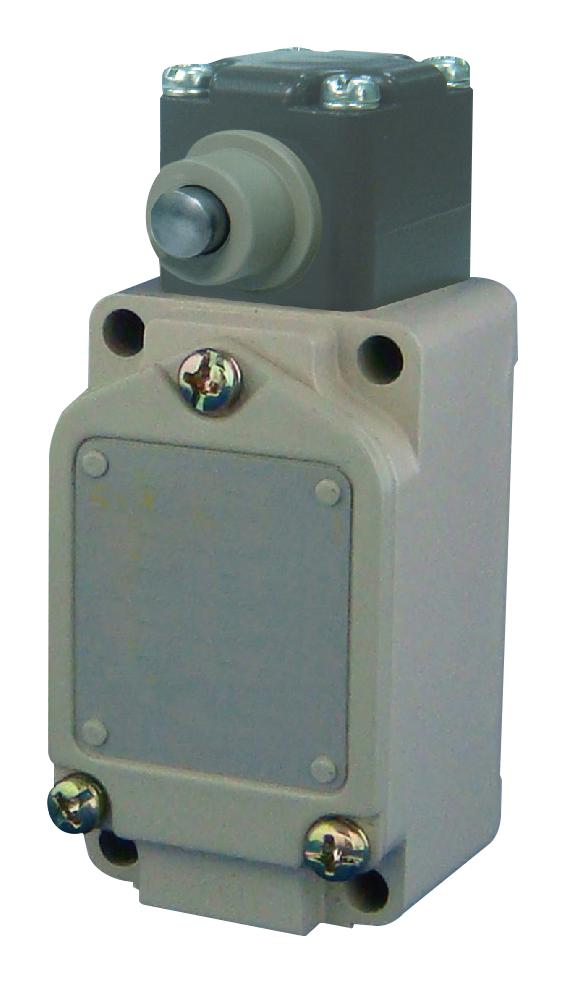

MULTICOMP PRO MC002430 Limit Switch
Multicomp Pro provides highly reliable two-circuit limit switches with robust construction, specified for industrial automation and machinery control. Available in various configurations such as top plunger, roller lever, and adjustable lever models, these switches operate effectively within temperature ranges from -10°C to +80°C and have an ingress protection rating of IP67. Designed for durability, they sustain over 750,000 electrical switching operations and feature certifications including UL, CSA, and CCC. Their compact size, diverse mounting options, and rated electrical capabilities make them suitable for demanding industrial environments requiring precise and long-lasting limit switch solutions.
MULTICOMP PRO MC002430 Limit Switch Specifications:
- Degree of protection: IP67
- Rating: IEC 60947-5-1 AC-15 250V AC / 2A, 48V DC/ 2A; UL508. A600 250V AC / 15A
- Mechanical operations: 15,000,000
- Electrical operations: 750,000
- Operating Speed: approximately 1 m/s
- Operating Frequency: Mechanical 120 operations/min; Electrical 30 operations/min
- Rated Frequency: 50/60Hz
- Insulation Resistance: 100MQ minimum at 500V DC
- Contact Resistance: 25mΩ maximum
- Dielectric Strength: Between current-carrying parts and ground AC 2,200V (1,500V)
- Rated Insulation Voltage: 250V (EN60947-5-1)
- Vibration Resistance: 10~55 Hz, 1.5mm double amplitude, destruction at 1000m/s²
- Shock Resistance: Malfunction at 300m/s²
- Ambient Temperature Range: -10°C to +80°C
- Humidity Range: 35% to 95% RH
- Approved by: UL, CSA, CCC
- Connection: Screw Terminal
Buy the Multicomp Pro MC002430 – Reliable Limit Switch for Industrial Applications
Purchase the Multicomp Pro MC002430 limit switch online and secure a dependable, long-lasting component suitable for automation, machinery, and industrial systems. Its versatile configurations, high durability, and IP67 protection ensure optimal performance under demanding conditions. Perfect for automation control, safety interlocks, and machine limit functions, this switch withstands high cycle operations with over 750,000 electrical operations and provides certified safety with UL, CSA, and CCC approval. Order now for quick delivery and reliable operation in your industrial setup.
Get Multicomp Pro MC002430 today—designed for durable performance in industrial automation and machinery control.
