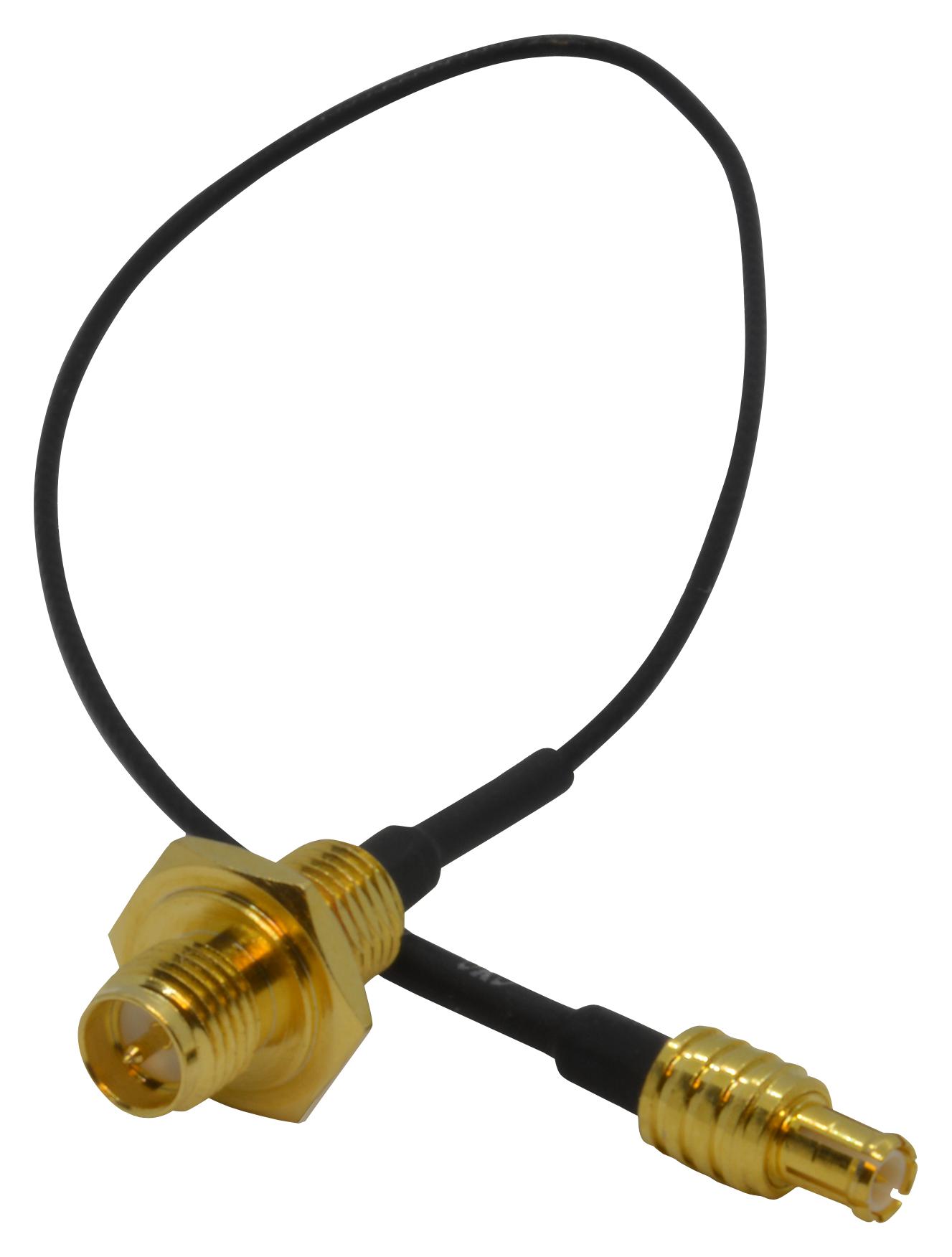

MULTICOMP PRO MC002681 RF Coaxial Cable Assembly
This RF coaxial cable assembly features a 200mm length with a rear lock SMA reverse polarity bulkhead jack on one end and an MCX straight plug on the other. Designed for high-frequency applications, it operates from DC up to 6.0 GHz, with an impedance of 2500 ohms and an insertion loss of -1.55 dB max. The assembly ensures reliable signal transmission with a VSWR of 1.65:1 max. Suitable for industrial, communications, and testing environments, it includes quality RoHS compliance and rugged construction for durability and consistent performance.
MULTICOMP PRO MC002681 RF Coaxial Cable Assembly Specifications:
- Impedance: 2500 ohms
- Frequency Range: DC to 6.0 GHz
- Working Voltage: 335 Vrms Max
- Dielectric Withstanding Voltage: 750 Vrms Max
- Insulator Resistance: 5000 MΩ Min
- VSWR: 1.65 : 1 Max
- Insertion Loss: -1.55 dB Max
- Connector Types: SMA Reverse Polarity bulkhead jack, MCX straight plug
- Cable Length: 200 mm
- RoHS Compliant
- Material: Black cable with crimp connectors and heat shrink tubing
- Operating Temperature Range: Not specified, suitable for typical RF environments
- Certification: RoHS
- Physical Dimensions: 200mm cable length, connector sizes compatible with RF applications
Buy the Multicomp MC002681 – Reliable RF Coaxial Cable for Industrial Applications
Enhance your RF connectivity with this high-quality coaxial cable assembly. Featuring a 200mm length, SMA reverse polarity bulkhead jack, and MCX straight plug, it operates from DC to 6 GHz. Designed for durability and precise signal transmission, it supports demanding industrial and communication applications with RoHS compliance and reliable performance. Easy to install and suitable for testing, instrumentation, and signal transmission, this assembly ensures consistent results with minimal loss and optimal impedance matching. Order now for dependable RF solutions.
Buy Multicomp MC002681 now and experience unmatched reliability and high-frequency performance in your RF applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002681?
You can click on the BUY or RFQ button to purchase MC002681 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002681?
You can download the MC002681 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002681?
MULTICOMP PRO
