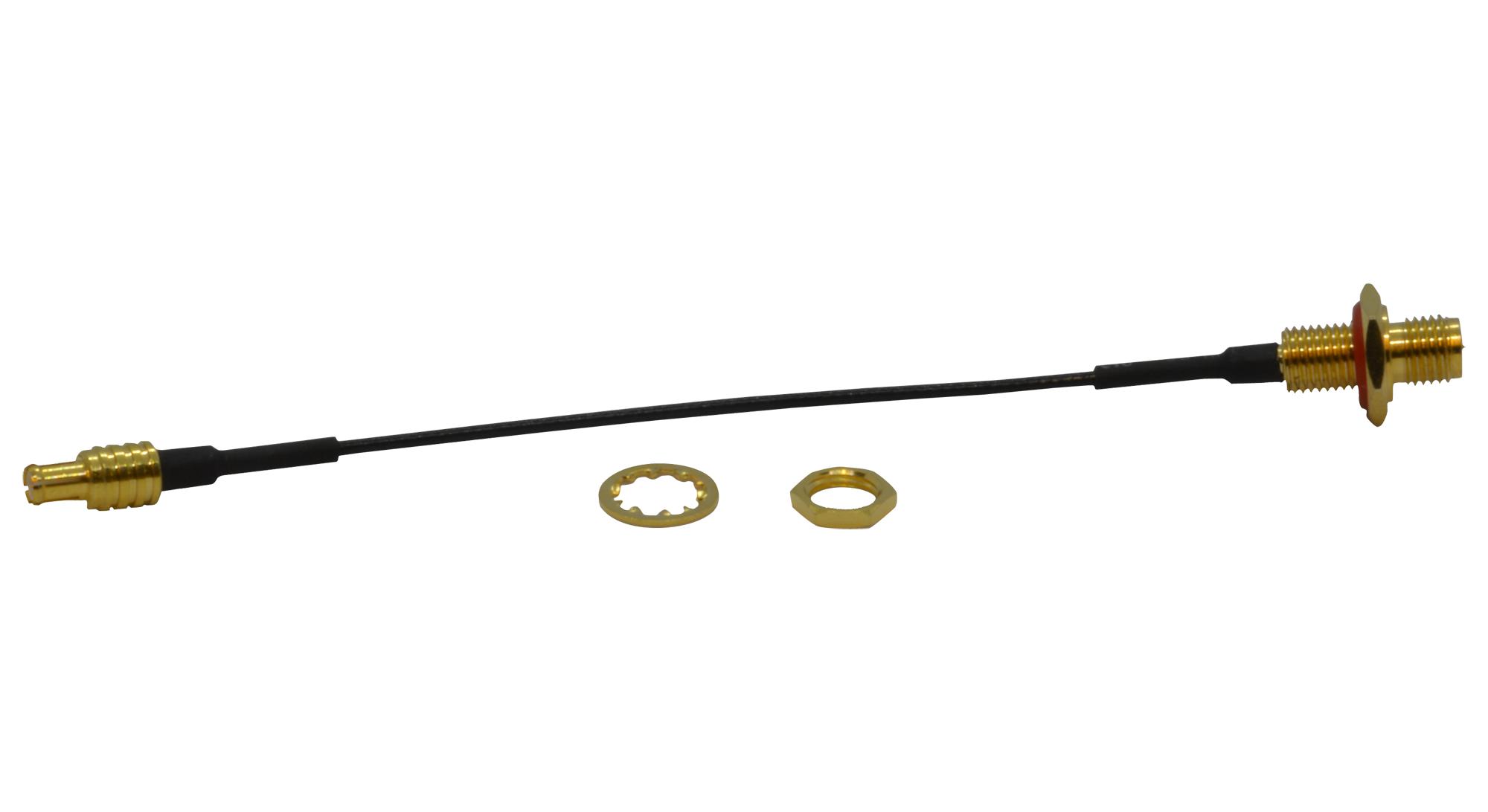

MULTICOMP PRO MC002720 RF Coaxial Cable Assembly
This RF coaxial cable assembly features a rear lock SMA reverse polarity bulkhead jack connected to an MCX straight plug, measuring 100mm in length, ideal for high-frequency applications up to 6.0 GHz. The assembly includes a black 1.37mm diameter cable with compatible connectors, heat shrink tubing for insulation, and RoHS compliance. Suitable for RF signal transmission, ensuring low insertion loss of -1.1 dB, with impedance of 50 ohms, and a maximum working voltage of 335 Vrms, this durable connection solution is perfect for precise electronic communications.
MULTICOMP PRO MC002720 RF Coaxial Cable Assembly Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 6.0 GHz
- Working Voltage: 335 Vrms Max.
- Dielectric Withstanding Voltage: 750 Vrms Max.
- Insulator Resistance: 5000 MΩ Min.
- Insertion Loss: -1.1 dB Max.
- VSWR: 1.65:1 Max.
- Cable Diameter: 1.37 mm
- Connector Type: SMA reverse polarity bulkhead jack to MCX straight plug
- Cable Length: 100 mm
- RoHS Compliant
- Material: Copper alloy connectors, black insulated cable
- Temperature Range: Not specified, typical for RF cables
- Dimensions: Cable length 100 mm, connector sizes detailed above
Buy the Farnell Series RF Coaxial Cable Assembly: MC002720
Enhance your RF communication systems with this high-quality coaxial cable assembly featuring SMA reverse polarity bulkhead jack and MCX straight plug. Measuring 100mm, this assembly ensures low insertion loss of -1.1 dB, maintains impedance of 50 ohms, and supports frequencies up to 6.0 GHz. RoHS compliant and constructed with durable materials, it offers reliable connections for professional electronic and communication projects. Purchase online today for a dependable, high-performance RF cable solution tailored for demanding technical environments.
Buy Farnell RF coaxial cable assembly MC002720 now and experience unmatched reliability and performance in high-frequency RF applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002720?
You can click on the BUY or RFQ button to purchase MC002720 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002720?
You can download the MC002720 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002720?
MULTICOMP PRO
