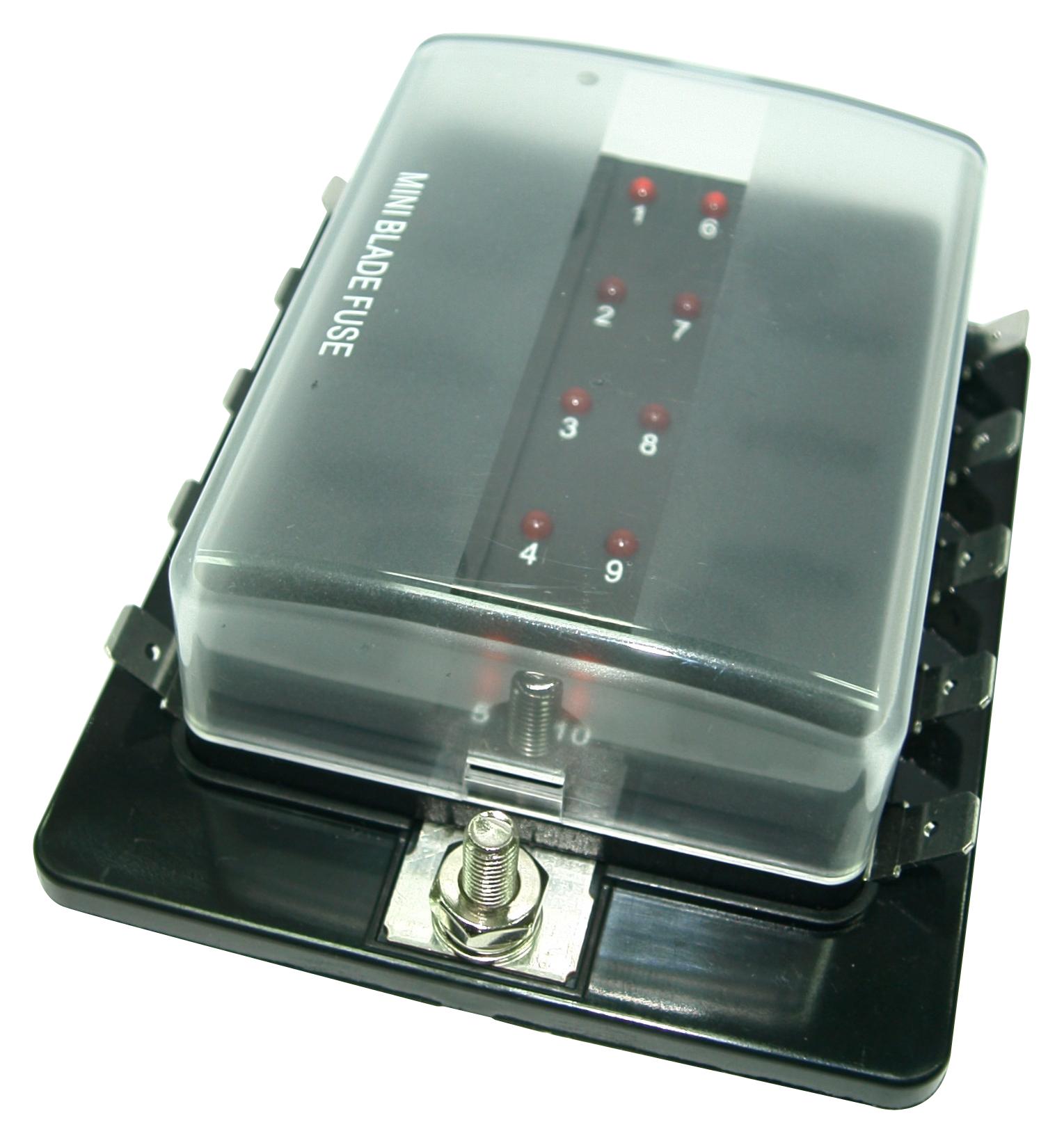

MULTICOMP PRO MC002795 Mini Blade Fuse Block
The Mini Blade Fuse Block with LED Warning Light is a compact, panel-mount fuse holder designed for 10 mini blade fuses. It features quick connect terminals, a transparent PC cover with LED warning indicators for each circuit, and durable PBT housing. Rated for 32V DC with input terminals accommodating #4-6 AWG wires and output wires sized #12-16 AWG. Max operating temperature is -20°C to +85°C. Suitable for automotive, industrial, or electronic applications requiring reliable circuit protection with visual status indicators.
MULTICOMP PRO MC002795 Mini Blade Fuse Block Specifications:
- Fuse Holder Type: Mini Blade Fuse Holder
- Fuse Holder Terminal: Quick Connect
- Fuse Size: Mini Blade
- No. of Fuses: 10 Fuses
- Input Terminal Rating: #10-32 Threaded Studs (100A Max.)
- Output Terminal Rating: 830A Max. Per Circuit
- Voltage Rating: 32V DC
- Connection Pad: Input Wire Size: #4-6AWG
- Output Wire Size: #12-16AWG
- Material: Housing & Base PBT UL94V-0, Cover PC UL94V-2, Push Button POM, Terminal Copper Tin Plated
- Operating Temperature: -20°C to +85°C
- Mounting Torque Rating: 8 in-lb (0.9Nm)
- Max Torque: 20 in-lb (2.25Nm)
Buy the Buy Multicomp PRO Mini Blade Fuse Block w/ LED Warning Light Part Number MC002795 Online
Get the reliable Mini Blade Fuse Block with LED warning lights from Multicomp PRO online. Designed for 10 mini blade fuses, it offers quick connect terminals, durable housing, and visual circuit status indicators. Ideal for automotive, industrial, or electronic applications, this fuse holder operates safely within -20°C to +85°C range, rated for 32V DC. Easy to install with a compact design, it ensures circuit safety and operational efficiency with maximum output ratings of 830A per circuit. Buy now for dependable power distribution.
Order your Multicomp PRO Mini Blade Fuse Block with LED warning indicator today and ensure reliable circuit protection for your automotive or industrial projects.
