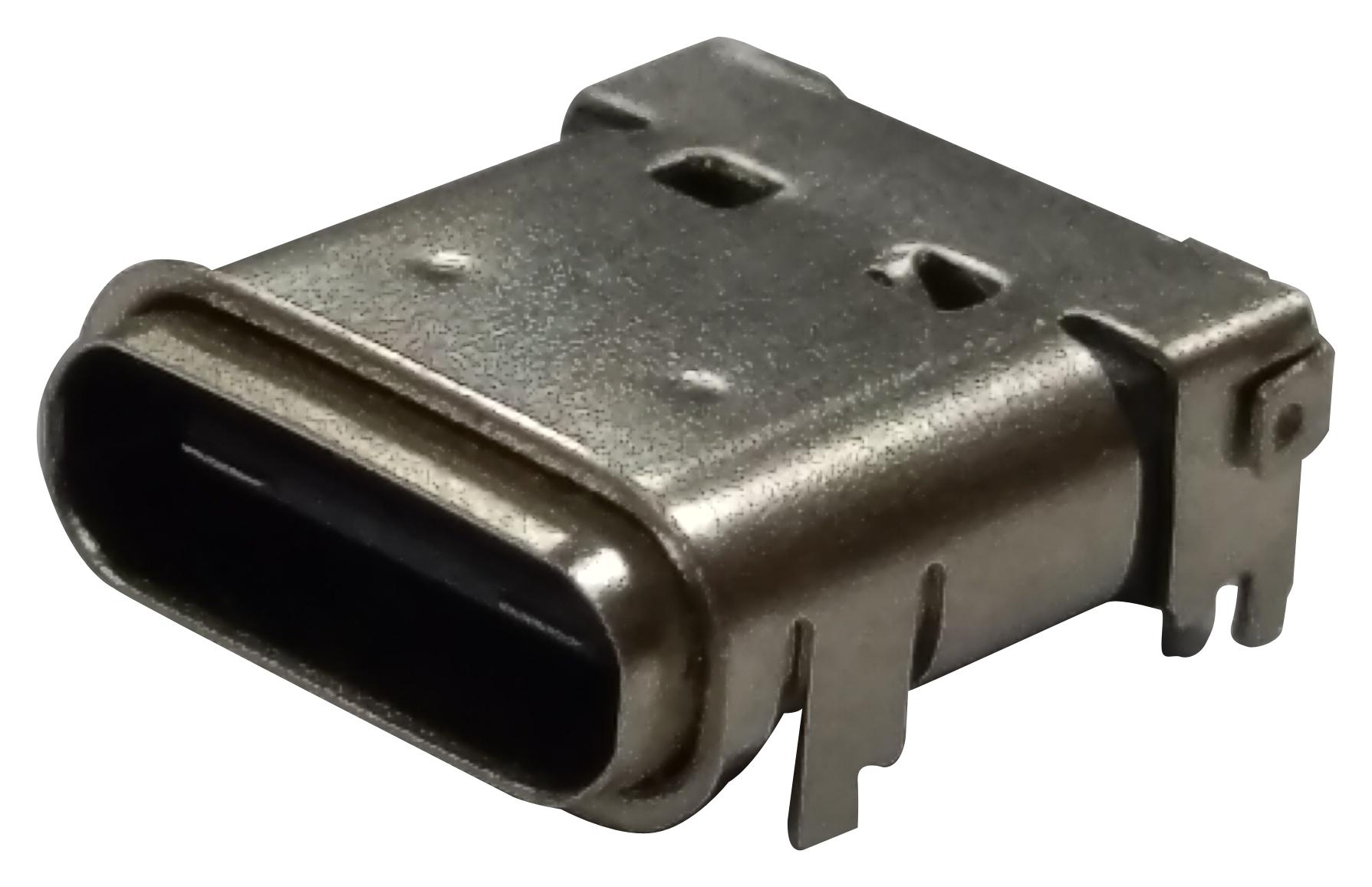

MULTICOMP PRO MC002811 USB Type C Receptacle
This waterproof USB 3.1 Type C receptacle features 24 contacts, high-temperature plastic insulator, stainless steel shell with nickel plating, and gold-plated contacts for reliable connections in industrial environments. It supports VBUS and VCONN currents, withstands dielectric voltage up to 100V AC RMS, and operates from -40°C to 85°C. Designed for surface mount and through-hole applications, it offers durability for 10,000 cycles with a compact 0.29mm center height and IP-rated sealing, making it ideal for rugged industrial devices.
MULTICOMP PRO MC002811 USB Type C Receptacle Specifications:
- USB Connector Type: USB 3.1 Type C Receptacle
- No. of Contacts: 24
- Mounting: R/ASurface Mount, Through Hole
- Insulator Material: High Temperature Plastic UL94V-0, Black
- Shell Material: Stainless Steel (0.2mm), Nickel Plating
- Inner Shell: Degrease
- Contact Material: Copper Alloy (0.15mm)
- Contact Plating: Gold (50y" Min.), Tin (80p" Min.)
- Contact Resistance: 40mΩ Max. initial, 10mΩ after test
- Contact Current Rating: 5A VBUS, 1.25A VCONN
- Dielectric Withstanding Voltage: 100V AC RMS
- Insulation Resistance: >100MQ
- Operating Temperature: -40°C to 85°C
- Mating Force: 5-20N
- Unmated Force: 8-20N
- Durability: 10,000 Cycles
- Dimensions: 0.29mm center height, compact for industrial applications
Buy the Multicomp Pro MC002811 – Reliable USB 3.1 Type C industrial connector
Enhance your industrial devices with the waterproof USB 3.1 Type C receptacle, featuring 24 contacts, durable high-temperature plastic, stainless steel shell, and gold-plated contacts. Designed for rugged environments, it supports high current ratings, withstands wide temperature ranges, and offers long-lasting durability of 10,000 cycles. The compact 0.29mm center height makes it suitable for space-constrained applications. Reliable and RoHS compliant, this connector ensures secure, high-speed connectivity for industrial and automation equipment.
Buy Multicomp Pro MC002811 waterproof USB 3.1 Type C connector now and ensure reliable, high-performance connections in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002811?
You can click on the BUY or RFQ button to purchase MC002811 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002811?
You can download the MC002811 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002811?
MULTICOMP PRO
