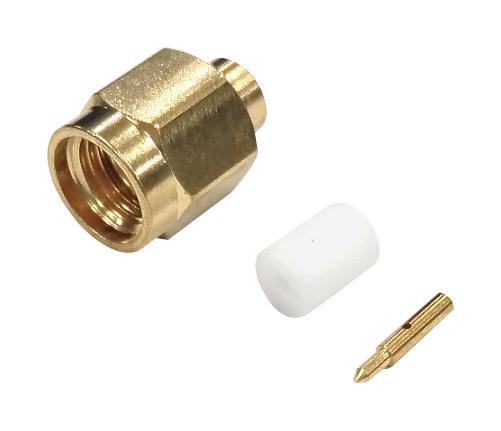

MULTICOMP-PRO MC002922 High-Frequency SMA Connector
The Straight SMA Plug with solder connection is designed for coaxial cable RG-402, offering high frequency performance up to 26.5GHz. Made of stainless steel and beryllium copper, it provides excellent durability and electrical conductivity. The connector supports DC 26.5GHz frequency, 500V maximum voltage, and a 1.16 maximum VSWR at 18GHz. It features PTFE insulation, solder cable attachment, and MIL-STD-348A interface compatibility. Operating in temperatures from -65°C to +165°C, it is ideal for high-frequency, high-temperature demanding applications in RF systems and communications.
MULTICOMP-PRO MC002922 High-Frequency SMA Connector Specifications:
- Connector Body Style : Straight Plug
- Coaxial Termination : Solder
- Connector Mounting : Cable
- Coaxial Cable Types : RG-402
- Frequency Range : DC 26.5GHz
- f Nominal Impedance : 500
- Voltage Rating : 500V Max.
- VSWR : 1.16 Max. @ 18GHz / 1.20 Max. @ 26.5GHz
- Bodies : Stainless Steel per JIS SUS-303
- Centre Contact : Beryllium Copper per ASTM B196 UNS C17300
- Insulation : PTFE per ASTM D1457 and ASTM D1710
- Interface : MIL-STD-348A
- Cable Attachment : Solder / Outer and Inner
- Recommended Coupling Torque : 7 to 10 in-Ibs
- Operating Temperature : -65°C to +165°C
Buy the Premier Series SMA Connector: Straight SMA Plug Solder RG-402
Purchase the high-performance SMA connector online today to ensure reliable RF and communication system connections. Designed for demanding applications, this soldered RG-402 connector supports DC 26.5GHz, offering excellent impedance matching with a VSWR of 1.16 at 18GHz. Crafted from stainless steel and beryllium copper with PTFE insulation, it withstands temperatures from -65°C to +165°C. Its MIL-STD-348A interface and solder cable attachment make it ideal for high-frequency, high-temperature environments. Order now for fast delivery and quality assurance.
Order your Premier Series SMA Connector Straight SMA Plug with RG-402 cable attachment today and give your RF projects the dependable high-frequency connection they require.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002922?
You can click on the BUY or RFQ button to purchase MC002922 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002922?
You can download the MC002922 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002922?
MULTICOMP-PRO
