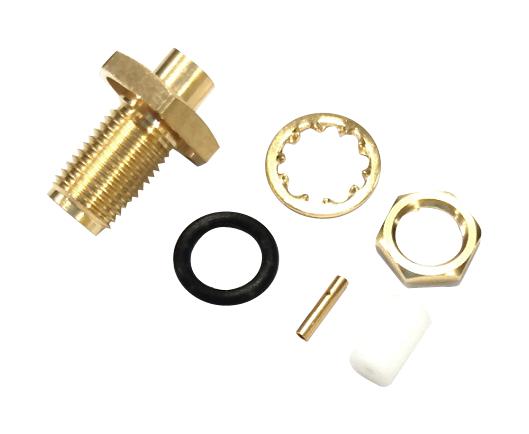

MULTICOMP-PRO MC002924 SMA RF Connector
The Straight SMA Bulkhead Jack with solder termination is a high-performance coaxial connector designed for RF applications. It features a stainless steel body complying with MIL-STD-348A, with beryllium copper center contacts plated in gold for excellent conductivity and durability. Suitable for 50Ω impedance systems, it operates efficiently over a frequency range up to 26.5GHz, handling simultaneous voltage ratings of 500V. The connector provides reliable solder-type cable attachment for RG-402 coaxial cables and is constructed to operate reliably within temperatures from -55°C to +165°C. It is ideal for aerospace, military, and high-frequency test equipment requiring rugged, precise, and high-frequency performance.
MULTICOMP-PRO MC002924 SMA RF Connector Specifications:
- Connector Body Style: Straight Bulkhead Jack
- Coaxial Termination: Solder
- Connector Mounting: Cable
- Coaxial Cable Types: RG-402
- Frequency Range: DC 26.5GHz
- Impedance: 50Ω
- Voltage Rating: 500V Max.
- VSWR: 1.2 Max. @ 26.5GHz
- Materials: Bodies: Stainless Steel per JIS SUS 303; Centre Contact: Beryllium Copper per ASTM B196 UNS C17300; Insulation: PTFE per ASTM D1457 and ASTM D1710
- Operating Temperature: -55°C to +165°C
- Interface: MIL-STD-348A
- Cable Attachment: Outer Solder; Inner Solder
- Connector Size: 2.4(.094) MAX. PANEL, HEX 8.0(.915), Spacer 0.25(.010), Stripping Dimension 10.5(.413), 16.0(.630), Bushing diameter 6.6(.260)
- Mounting Hole: Diameter 4.0mm
- Contacts: Beryllium Copper, Gold Plated 50µ" Min.
- Nut and Washer: Stainless Steel, Gold Plated 3µ" Min.
- O-Ring: Silicone Black
- Dimensions are given in millimetres and inches for precise mounting and installation, ensuring durable and high-quality RF performance.
Buy the Multicomp Series SMA RF Connectors: MC002924
Order the Multicomp Series SMA RF Connector MC002924 online today and experience superior RF performance with a rugged stainless steel body, gold-plated contacts, and reliable solder termination. Ideal for high-frequency applications up to 26.5GHz, this connector features precise dimensions, MIL-STD-348A interface, and suitability for RG-402 cables. Designed to operate within temperatures from -55°C to +165°C, it offers excellent durability and stable electrical performance. Purchase online now for quick delivery and reliable connection in your RF systems.
Get Multicomp Series SMA RF Connector MC002924 today—built for precision and long-lasting durability in high-frequency applications.
