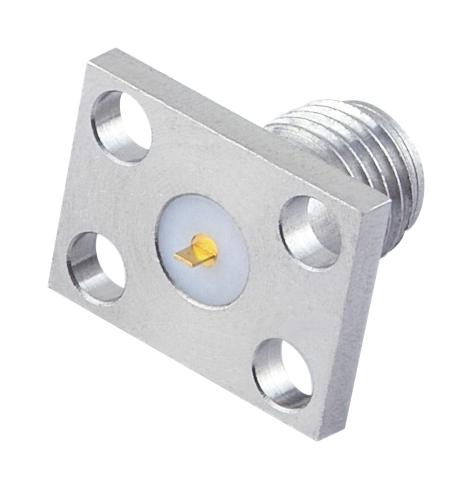

MULTICOMP PRO MC002934 RF Connector
The Straight SMA Square Flange Mount Jack Receptacle is a high-performance coaxial connector designed for RF applications. It features a solder termination, stainless steel body, and beryllium copper center contact with gold plating for durability and low contact resistance. Operating over DC to 26.5 GHz, it has a maximum voltage rating of 500V and a VSWR of 1.17 at 18 GHz. Suitable for demanding environments, it withstands temperatures from -65°C to +165°C, ensuring reliable connections in various industrial and communication systems.
MULTICOMP PRO MC002934 RF Connector Specifications:
- Connector Body Style: Straight Jack Receptacle
- Coaxial Termination: Solder
- Connector Mounting: Square Flange Mount
- Frequency Range: DC 26.5GHz
- Nominal Impedance: 50Ω
- Voltage Rating: 500V Max.
- VSWR: 1.17 Max. @ 18GHz / 1.21 Max. @ 26.5GHz
- Bodies Material: Stainless Steel per JIS SUS-303
- Centre Contact Material: Beryllium Copper per ASTM B196 UNS C17300
- Insulation Material: PTFE per ASTM D1457 and ASTM D1710
- Operating Temperature: -65°C to +165°C
- Contact Finish: Gold 50μ
- Body Finish: Gold 3μ
- Dimensions: Millimetres (Inches)
Buy the Multicomp Series RF Connectors: Straight SMA Square Flange Mount Jack Receptacle MC002934
Order the Multicomp Series RF Connector MC002934 online today and enjoy reliable coaxial connections for high-frequency applications. This SMA square flange mount jack receptacle offers excellent performance from DC to 26.5 GHz with a robust stainless steel body and gold-plated beryllium copper center contact. Designed to withstand temperatures from -65°C to +165°C, it provides exceptional durability and low VSWR. Perfect for industrial, communication, and RF testing setups, ensuring stable, low-loss signal transmission in demanding applications.
Get Multicomp Series RF Connectors MC002934 today—built for high-frequency performance and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002934?
You can click on the BUY or RFQ button to purchase MC002934 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002934?
You can download the MC002934 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002934?
MULTICOMP PRO
