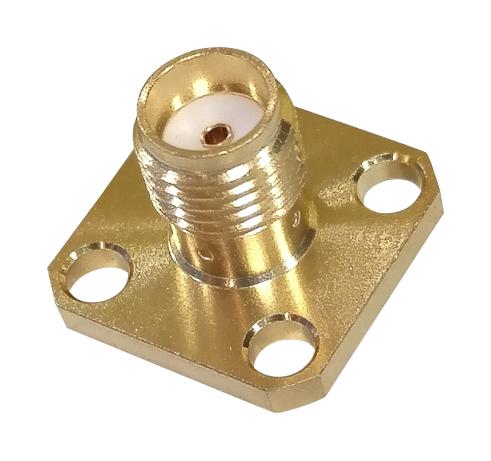

MULTICOMP PRO MC002937 SMA RF Connector
The Straight SMA Square Flange Mount Field Jack Receptacle is designed for high-frequency applications up to 26.5GHz, featuring a stainless steel body and beryllium copper center contact. Its precise square flange mounting provides secure installation in demanding environments. Made with PTFE insulation, this connector guarantees excellent electrical insulation and durability, with a maximum voltage rating of 500V. Suitable for RF signal transmission, it conforms to MIL-STD-348A standards, ensuring reliability and consistent performance in various environmental conditions, with an operating temperature range from -55°C to +165°C.
MULTICOMP PRO MC002937 SMA RF Connector Specifications:
- Connector Body Style: Straight Field Jack Receptacle
- Connector Mounting: Square Flange Mount
- Frequency Range: DC 26.5GHz
- Nominal Impedance: 50Ω
- Voltage Rating: 500V Max.
- VSWR: 1.17 Max. @ 18GHz; 1.21 Max. @ 26.5GHz
- Bodies Material: Stainless Steel per JIS SUS-303
- Centre Contact Material: Beryllium Copper per ASTM B196 UNS C17300
- Insulation Material: PTFE per ASTM D1457 and ASTM D1710
- Interface Standard: MIL-STD-348A
- Operating Temperature: -55°C to +165°C
- Body Finish: Gold, 3µm Min.
- Centre Contact Finish: Gold, 50µm Min.
- Dimensions: Millimetres (Inches) provided; specific sizes include diameter and length compliant with standards
Buy the Multicomp Series SMA Connector: Straight SMA Square Flange Mount MC002937
Purchase the Multicomp Series SMA RF Connector with square flange mount today for high-frequency applications up to 26.5GHz. Crafted with stainless steel and beryllium copper, it ensures excellent electrical performance and durability. The gold-plated contacts provide reliable connections, while PTFE insulation withstands harsh environments. Conforming to MIL-STD-348A standards, it is suitable for demanding RF projects requiring precise impedance and temperature resilience from -55°C to +165°C. Order now online for fast delivery and certified quality.
Buy Multicomp Series MC002937 now and ensure secure, reliable RF connections with high-frequency performance and durable construction.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002937?
You can click on the BUY or RFQ button to purchase MC002937 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002937?
You can download the MC002937 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002937?
MULTICOMP PRO
