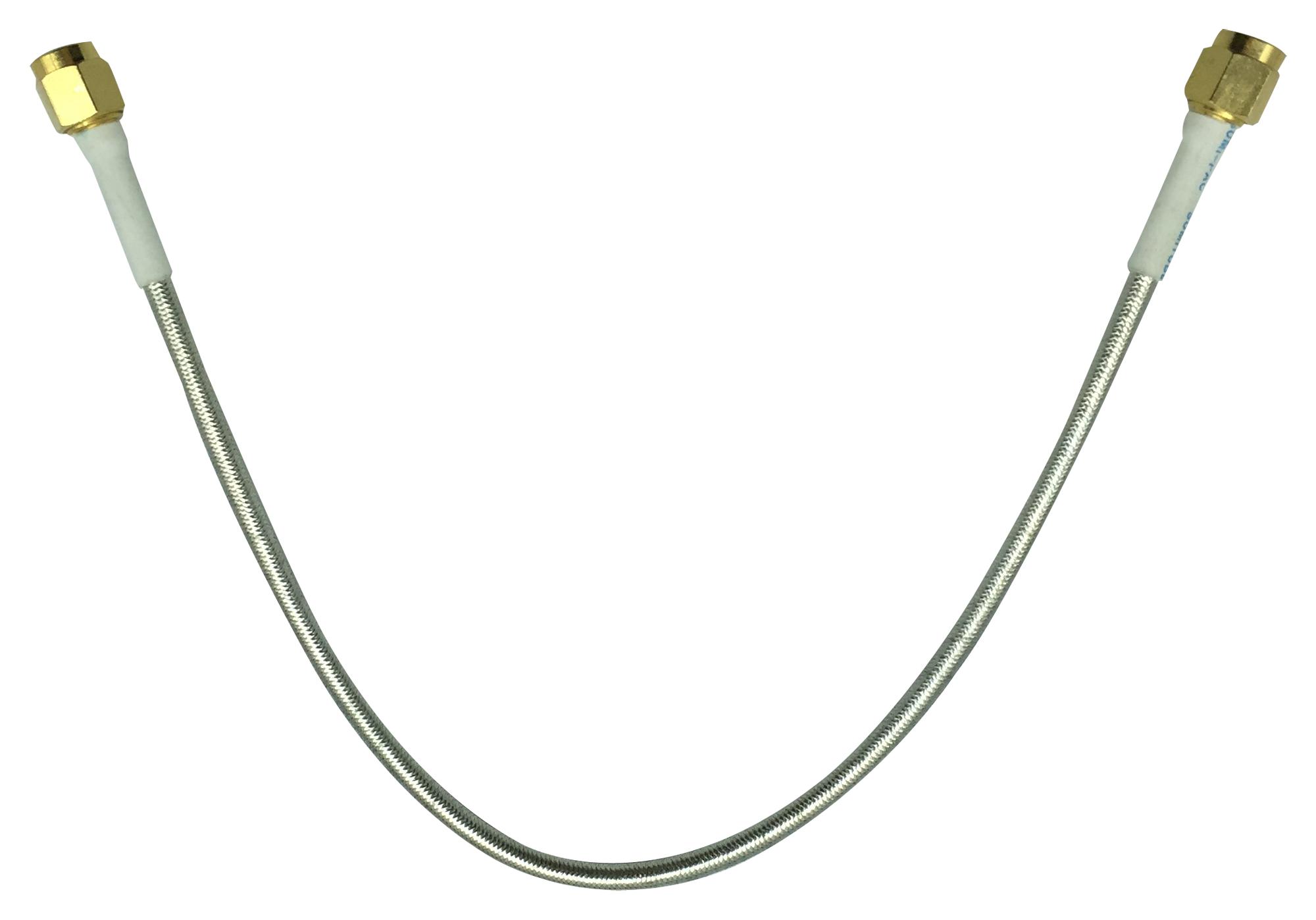

MULTICOMP PRO MC002993 RF Cable Assembly
This RF cable assembly features a robust 250mm length with RG-402 coaxial cable and SMA straight plugs on both ends, ensuring reliable signal transmission up to 18GHz. Constructed with gold-plated brass connectors and PTFE insulation, it offers excellent durability for high-frequency applications. The assembly supports 50 ohm impedance, with low VSWR and return loss, making it suitable for demanding industrial, communications, and testing environments. Designed for repeated mating cycles and capable of withstanding voltage up to 500V RMS, it guarantees consistent performance and durability in critical systems.
MULTICOMP PRO MC002993 RF Cable Assembly Specifications:
- Cable Length: 250mm / 9.84"
- Connector Type A: SMA Straight Plug
- Connector Type B: SMA Straight Plug
- Cable Type: RG-402
- Impedance: 50Ω
- Frequency Range: 0-18GHz
- VSWR: 1.5@18GHz
- Return Loss: 13.979dB@18GHz
- Voltage Rating: 500V RMS
- Insulation Resistance: 5,000MΩ Min.
- Dielectric Withstanding Voltage: 1000V AC / 1 min.
- SMA Contact Resistance: Centre Contact: 3mΩ Max, Outer Contact: 2mΩ Max.
- Mating: 36 Threaded Coupling
- Durability: 500 mating cycles
- Body Material: Brass, Gold Plated
- Centre Contact Material: Brass, Gold Plated
- Insulating Material: PTFE
Buy the Multicomp SMA Assembly – Reliable RF Cable for Industrial Applications
Purchase the Multicomp SMA Cable Assembly online today to ensure seamless connectivity in your high-frequency systems. With a 250mm RG-402 cable and gold-plated brass connectors, this assembly offers excellent durability and electrical performance up to 18GHz. Its robust design withstands 500V RMS and 500 mating cycles, making it ideal for industrial, communications, and testing equipment. Enjoy fast delivery, excellent support, and competitive pricing on this high-quality RF cable assembly, perfect for professional applications requiring dependable, high-frequency transmission.
Buy Multicomp SMA Assembly now and experience reliable high-frequency performance with durable construction and excellent signal integrity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002993?
You can click on the BUY or RFQ button to purchase MC002993 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002993?
You can download the MC002993 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002993?
MULTICOMP PRO
