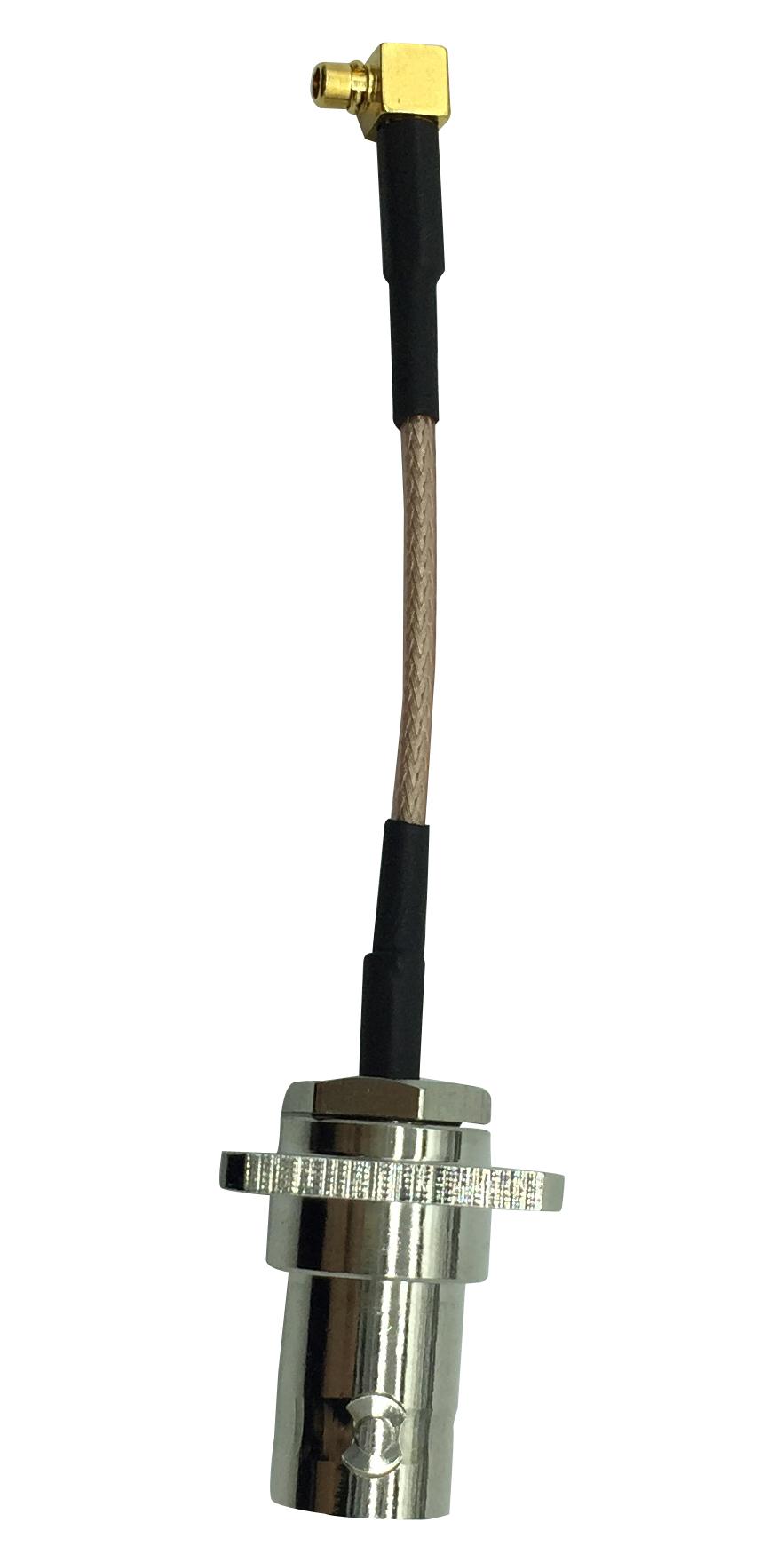

MULTICOMP PRO MC002996 RF Cable Assembly
The RF Cable Assembly features a BNC straight square flange jack paired with an MMCX right-angle plug, utilizing RG-178 cable for reliable high-frequency transmission. Designed for applications up to 4 GHz, it boasts excellent electrical performance with low VSWR and high return loss. The assembly includes durable brass contacts with gold and nickel plating, PTFE dielectric, and a robust two stud bayonet coupling system for 500 connection cycles. Compact and RoHS compliant, it is suitable for professional RF and communication systems requiring a compact, high-performance connector solution.
MULTICOMP PRO MC002996 RF Cable Assembly Specifications:
- Cable Length: 75mm / 2.95"
- Connector Type A: BNC Straight Square Flange Jack
- Connector Type B: MMCX Right Angle Plug
- Cable Type: RG-178
- Impedance: 50Ω
- Frequency Range: Up to 4 GHz
- VSWR: 2.13@4GHz
- Return Loss: 13.979dB@4GHz
- Voltage Rating: 170V RMS
- Insulation Resistance: 1,000 MΩ Min.
- Dielectric Withstanding Voltage: 500V AC / 1 min. hold with no breakdown or flashover
- BNC Contact Resistance: 1.5mΩ Max.
- MMCX Contact Resistance: 1mΩ Max.
- Mating: Two Stud Bayonet / Snap-on Coupling, 500 Cycles
- Durability: 500 connections
- Body Material: Brass, Nickel/Gold Plated
- Centre Contact Material: Brass, Gold Plated
- Insulating Material: PTFE
- RoHS Compliance: Yes
Buy the Multicomp Series RF Cable Assembly: BNC Square Flange Jack with MMCX R/A Plug: MC002996
Purchase the Multicomp Series RF Cable Assembly MC002996 online today for a high-quality, compact solution suitable for professional RF and communication applications. Featuring a BNC straight flange jack and an MMCX right-angle plug with RG-178 cable, this assembly supports frequencies up to 4 GHz with excellent electrical performance. Its brass contacts are plated with gold and nickel for durability, while PTFE insulation ensures reliable operation. With RoHS compliance and a robust two stud bayonet coupling, it is ideal for secure, long-lasting connections in demanding environments.
Buy Multicomp MC002996 RF cable assembly with high-frequency performance and durable connectors online today and ensure reliable RF connections for your communication systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002996?
You can click on the BUY or RFQ button to purchase MC002996 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002996?
You can download the MC002996 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002996?
MULTICOMP PRO
