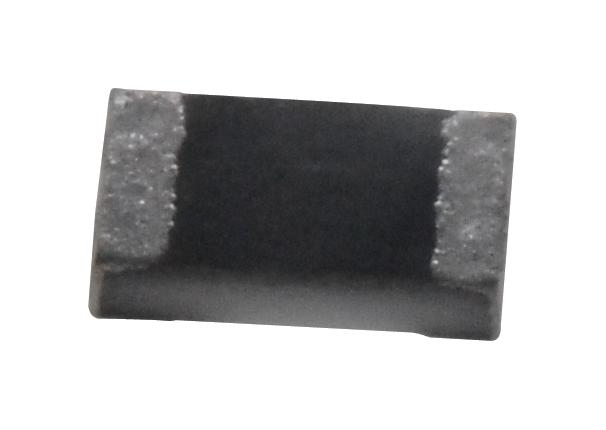

MULTICOMP PRO MC00625W0402112K4 Thick Film Chip Resistor
The Multicomp Pro MC series thick film chip resistors are compact, lightweight, and available in resistance values from 1 ohm to 10 megaohms, covering E96 and E24 decade values. They come in standard sizes: 0402, 0603, 0805, and 1206, supporting wave and reflow soldering, reducing assembly costs. Max voltages are 50V for 0402/0603, 150V for 0805, and 200V for 1206. Resistance tolerances are ±1%, ±2%, and ±5%, with power ratings of 62.5mW, 100mW, and 125mW. Temperature coefficient varies from ±400ppm/°C to ±100ppm/°C, operating from -55°C to +155°C, with jumpers also available.
MULTICOMP PRO MC00625W0402112K4 Thick Film Chip Resistor Specifications:
- Resistance Range: 1Ω to 10MΩ
- Sizes: 0402, 0603, 0805, 1206
- Soldering: Wave and reflow capable
- Max Working Voltage: 50V (0402/0603), 150V (0805), 200V (1206)
- Tolerance: ±1%, ±2%, ±5%
- Power Ratings: 62.5mW, 100mW, 125mW
- Temperature Coefficient of Resistance: ±400ppm/°C to ±100ppm/°C
- Operating Temperature: -55°C to +155°C
- Jumpers: Available for all sizes
- Application: Surface-mount electronics, low-resistance, high-accuracy circuits
Buy the Buy Multicomp thick film chip resistor Part Number MC00625W0402112K4 Online
Purchase your Multicomp Pro MC series thick film chip resistor MC00625W0402112K4 online now to benefit from reliable performance, precise resistance values, lightweight design, versatile sizes, and cost-effective assembly options. These surface-mount resistors support wave and reflow soldering, have various tolerance levels, and operate efficiently across a wide temperature range from -55°C to +155°C. Secure your supply of high-quality, compact resistors for your electronic applications with quick online ordering and dedicated customer support.
Order your Multicomp Pro high-precision resistor MC00625W0402112K4 today and ensure reliable performance for your electronic projects at great value.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC00625W0402112K4?
You can click on the BUY or RFQ button to purchase MC00625W0402112K4 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC00625W0402112K4?
You can download the MC00625W0402112K4 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC00625W0402112K4?
MULTICOMP PRO
