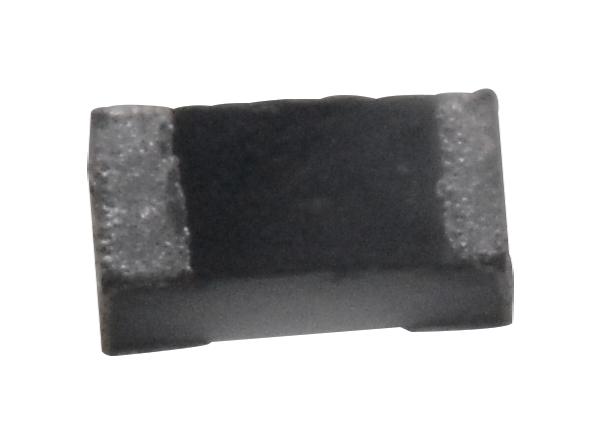

MULTICOMP PRO MC00625W04021220R Thick Film Resistor
The Multicomp Pro MC series thick film chip resistors provide resistance values from 1Ω to 10MΩ, in sizes 0402, 0603, 0805, and 1206. They are lightweight, suitable for wave and reflow soldering, reducing assembly costs. These resistors feature maximum voltages of 50V (0402/0603), 150V (0805), and 200V (1206). Resistance tolerance options include ±1%, ±2%, and ±5%, with power ratings up to 125mW. Operating temperature ranges from -55°C to +155°C, with TCR from ±400ppm/°C to ±100ppm/°C depending on resistance. Jumpers available for sizes, ensuring reliable performance across applications.
MULTICOMP PRO MC00625W04021220R Thick Film Resistor Specifications:
- Resistance Range: 1Ω to 10MΩ
- Sizes: 0402, 0603, 0805, 1206
- Resistance Tolerance: ±1%, ±2%, ±5%
- Maximum Working Voltage: 50V (0402/0603), 150V (0805), 200V (1206)
- Power Rating: 62.5mW (0402), 100mW (0603), 125mW (0805/1206)
- Temperature Coefficient: ±400ppm/°C (1Ω-10Ω), ±200ppm/°C (11Ω-100Ω), ±100ppm/°C (>100Ω)
- Operating Temperature Range: -55°C to +155°C
- Suitable for wave and reflow soldering
- Availability: Jumper options for size adaptability
- Application: Surface-mount electronic components, resistor networks, calibration, and precision circuits
Buy the Buy Multicomp Pro Thick Film Resistors Part Number MC00625W04021220R Online
Secure your supply of high-quality thick film chip resistors online. These surface-mount resistors in sizes 0402, 0603, 0805, and 1206 are perfect for compact, efficient circuits. With resistance from 1Ω to 10MΩ, and various tolerance options, they suit a wide range of applications including calibration, precision circuitry, and resistor networks. Designed for wave and reflow soldering, they improve manufacturing efficiency while maintaining excellent electronic stability across temperatures. Order now to enhance your electronics' reliability and performance seamlessly.
Buy Multicomp Pro thick film resistors now with resistance from 1Ω to 10MΩ, ensuring reliable performance and reducing assembly costs for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC00625W04021220R?
You can click on the BUY or RFQ button to purchase MC00625W04021220R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC00625W04021220R?
You can download the MC00625W04021220R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC00625W04021220R?
MULTICOMP PRO
