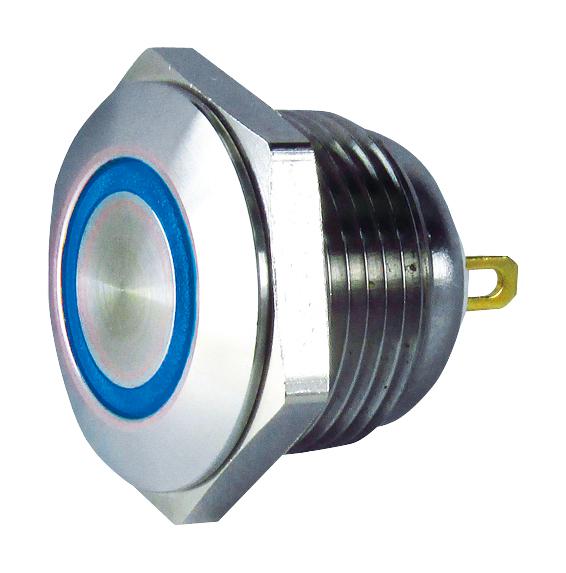

MULTICOMP PRO MC010878 Vandal Resistant Switch
The illuminated vandal resistant switch features a stainless steel material with a panel cut-out size of 16mm, suitable for industrial environments. It offers three top types: flush, prominent, and domed mount, with LED options in green, red, and blue colors. Rated for 48V DC and a current over 100mA, it includes gold-plated contacts, high dielectric strength, and a switch operation of 1NO. The device withstands harsh conditions with a degree of protection of P67, vibration resistance, shock resilience, and operates across a temperature range of -30°C to +70°C for storage and 1-50°C for operation.
MULTICOMP PRO MC010878 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC/live to ground, 1000V AC/terminals
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 100MΩ Min at 500V DC
- Operating Humidity: 45% to 85% RH (no condensation)
- Storage Temperature: -30°C to +70°C
- Operating Temperature: 1°C to +50°C
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm
- Shock Resistance: 200 m/s² operating, 500 m/s² damage limit
- Mechanical Life: 1,000,000 momentary, 250,000 maintained
- Electrical Life: 50,000 cycles
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Multicomp Vandal Resistant Switch – Reliable Industrial Control Switch for Durable Applications
Get your durable vandal resistant switch online today. Perfect for industrial environments, it features stainless steel construction, multiple LED colors, and reliable switching performance. Designed to withstand harsh conditions with high dielectric strength, vibration, and shock resistance. Easy to install with a 16mm panel cut-out and solder terminals, ensuring secure connections. Ideal for control panels, outdoor equipment, and hazardous areas, this switch combines durability, vibrant LED indicators, and a compact, robust design to meet demanding industrial standards. Available now for quick delivery.
Order your multicomp series MC010878 vandal resistant switch today and give your industrial projects the dependable quality they deserve with advanced LED illumination and robust stainless steel design.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010878?
You can click on the BUY or RFQ button to purchase MC010878 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010878?
You can download the MC010878 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010878?
MULTICOMP PRO
