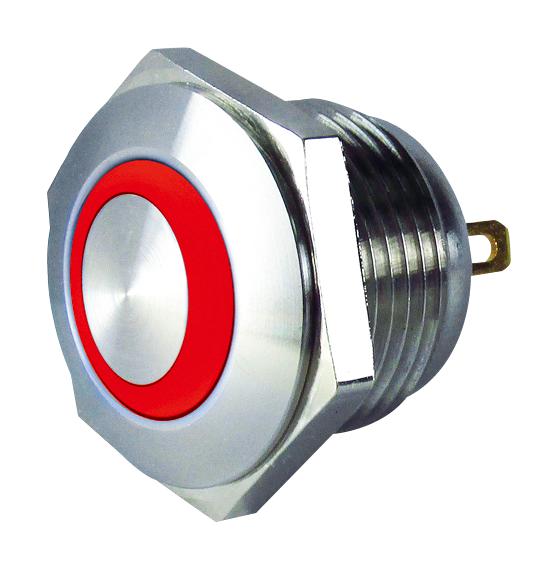

MULTICOMP PRO MC010886 Vandal Resistant Switch
The illuminated vandal resistant switch offers reliable, durable operation with stainless steel material, featuring multiple LED colors and contact configurations. Suitable for industrial and outdoor use, it supports various mounting options with a panel cut-out of 16mm diameter. It has a dielectric strength of 2,000V AC between live parts and ground, and an operating temperature range of -30°C to +70°C. The switch has a mechanical life of 1,000,000 cycles and electrical life of 50,000 cycles, ensuring long-term performance in demanding environments.
MULTICOMP PRO MC010886 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO.
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1-25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 500 m/S2 (damage), 200 m/S2 (operating)
- Mechanical Life: 1,000,000 cycles (Momentary), 250,000 cycles (Maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
- Panel Cut-out: 16mm diameter
- Panel Thickness: 0.5-3mm
Buy the Multicomp MC010886 – Reliable Illuminated Vandal Resistant Switch for Industrial Applications
Order the durable, illuminated vandal resistant switch from Multicomp now to enhance your industrial or outdoor projects. Featuring stainless steel construction, multiple LED colors, and reliable electrical contact configurations, this switch ensures long-term performance with high dielectric strength and a robust design. Its IP67 rating, extensive mechanical and electrical lifespan, and suitable panel cut-out size of 16mm make it ideal for demanding environments. Get yours today and enjoy fast delivery and competitive pricing for your industrial needs.
Buy Multicomp MC010886 now and experience unmatched durability and versatility for demanding industrial conditions.
